Overview |
|
Description | Insulated roller garage door with 'Secured by Design' certification as standard. |
Applications | Domestic and commercial garages. |
Security Level | Medium to high. |
Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|

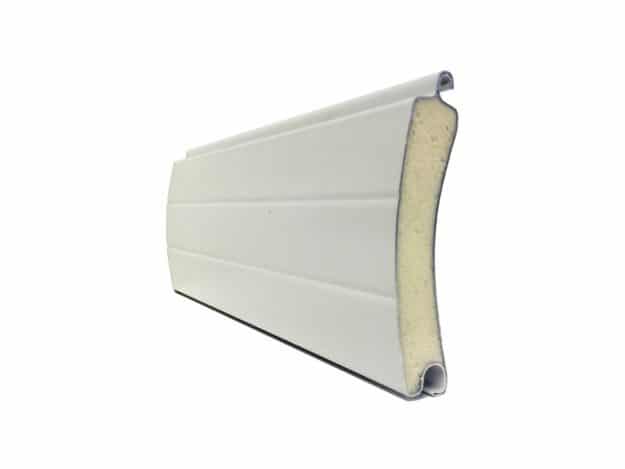

Slat | Double-skinned polyester powder-coated aluminium slat with polyurethane foam insulating core. Vision slats with glazing can be incorporated as required. |
Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. |
Guides | Extruded aluminium guide channels with brush inserts. |
Bottom Slat | Extruded aluminium bottom slat with rubber weather seal. |
Measurements |
|
Slat Face | 77mm |
Weight | 5.5kg/m² |
Max Width | 5500mm |
Max Area | 16m² |
Guide Width | 70mm, 90mm 150mm |
U-Value | 1.5W/m²K |
Finishes |
|
Curtain | White, cream white, ivory, beige, silver, grey, duck egg blue, blue, red, chartwell green, sage green, fir green, moss green, velvet brown, brown, anthracite, black, painted golden oak or painted rosewood as standard. Option to powder coat any RAL / BS colour or laminate wood effect (surcharge applies). |
Box | To match any standard slat colour, or traditional white or brown. Brown for wood effect doors. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | To match any standard slat colour, or traditional white or brown. Brown for wood effect doors. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy or Elero motor with manual override facility and crank handle. Safety brake to comply with legislation. Somfy or Teleco remote control panel with safety sensor, courtesy light and two key fobs, with or without integrated alarm. |
Manual | Manual operation is available but not common for the Classic door as operation may prove problematic for larger sizes. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1750 | 250 |
| 2700 | 300 |
| 4640 | 360 |
Classic Roller Garage Door
The Classic roller garage door has state-of-the-art technology for security, safety and convenience and is ‘Secured by Design’ as standard. An insulated aluminium slat reduces heat loss from the home, while the Somfy motor and control panel provide reliable automation with remote control operation and a courtesy light. A safety sensor will detect obstructions, while a secure locking system stops the curtain being lifted from below. Many solid colours and painted wood effects are available as standard, with laminate wood finishes also available.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
