Overview |
|

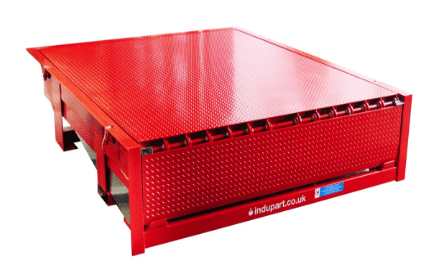

Description | Dock leveller designed to counterract the height difference between a vehicle and a ramp. |
Applications | Loading bays. |
Fitting | Pit mounted or suspended frame design. |
Components |
|
Lip | One piece lip complete with a 5 degree curvature for when loading above dock. Hinge lip at 400mm. |
Loading | Designed for movement by forklift. Can be stacked for transport. |
Measurements |
|
Loading Capacity | 6000 kg (single axle load, in accordance with the British standard for dock levellers BS EN 1398) |
Size | 2000mm x 2500mm |
Cable Length | 8000mm (longer available on request) |
Operating Perameters | 300mm (above or below dock) |
Finish |
|
Unit | Factory treated, primed and painted with two top coats of RAL 3000 hard enamel. |
Operation |
|
Electric | Electric operation with power pack in the fore part. |
