Overview |
|
Description | Insurance approved extruded aluminium security shutter. |
Applications | Commercial, shop front, offices. |

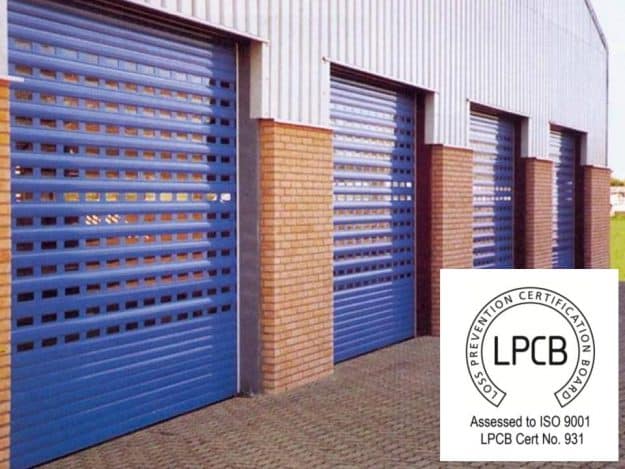

Security Level | High. Secured by Design and SR1 rated according to LPCB LPS 1175: Issue 7. |
Fitting | Internal face fit. |
Components |
|

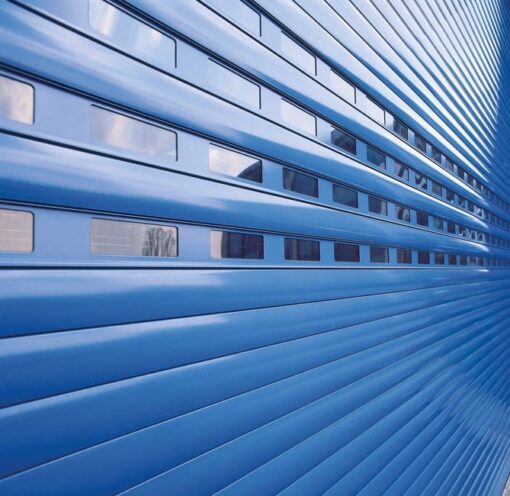

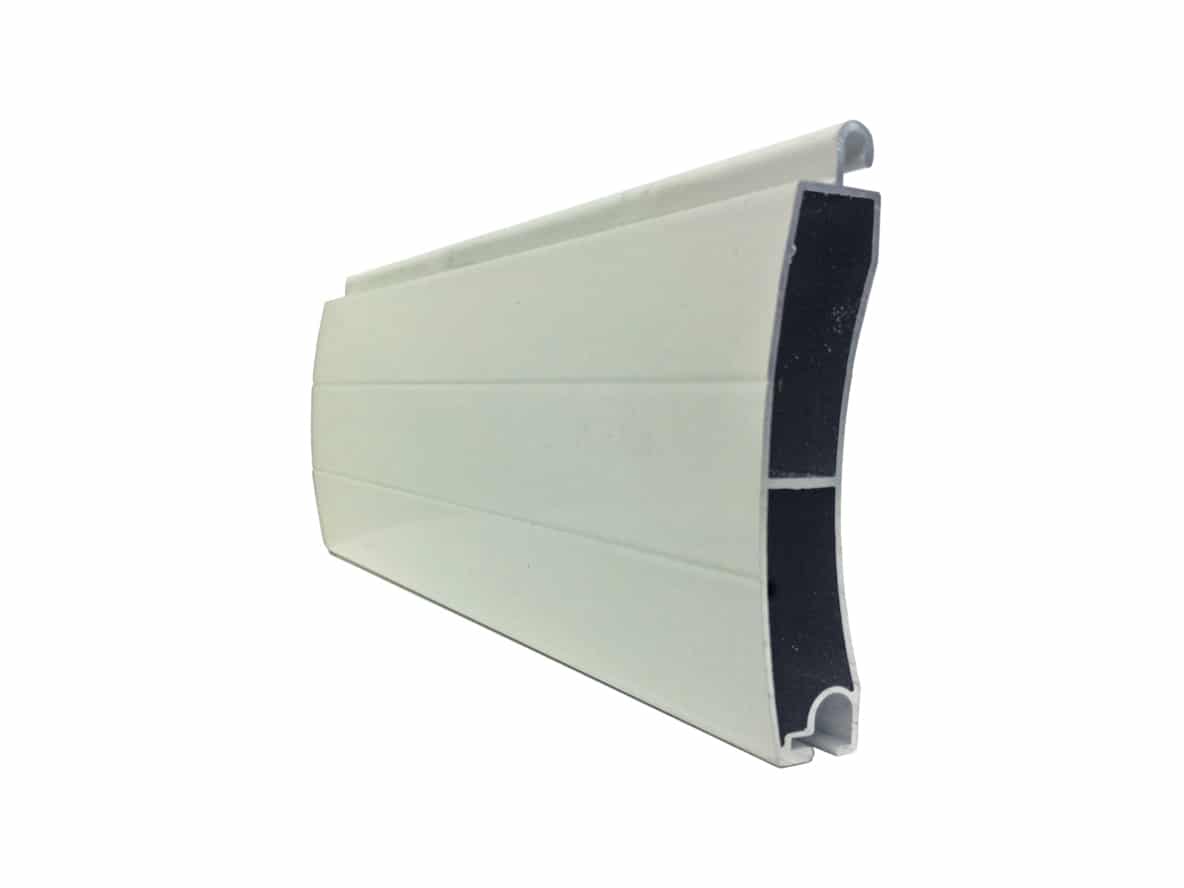

Slat | Double-skinned extruded aluminium. Punched (V77 Elite) profiles can be combined to offer partial or full vision as required. |
Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. |
Guides | Extruded aluminium with brush inserts. |
Bottom Slat | Extruded aluminium with rubber weather seal. |
Measurements |
|
Slat Face | 77mm |
Weight | 8.5kg/m² |
Max Width | 5000mm |
Max Area | 25m² |
Guide Width | 150mm |
U-Value | N/A |
Finishes |
|
Curtain | White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Box | White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy tubular motor & internal rocker or external key switch as standard. Safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group, remote or mobile phone activation. |
Manual | Available on request. Electric operation required for LPCB and Secured by Design certification. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1650 | 250 |
| 2700 | 300 |
| 4640 | 360 |
E77 Elite SR2

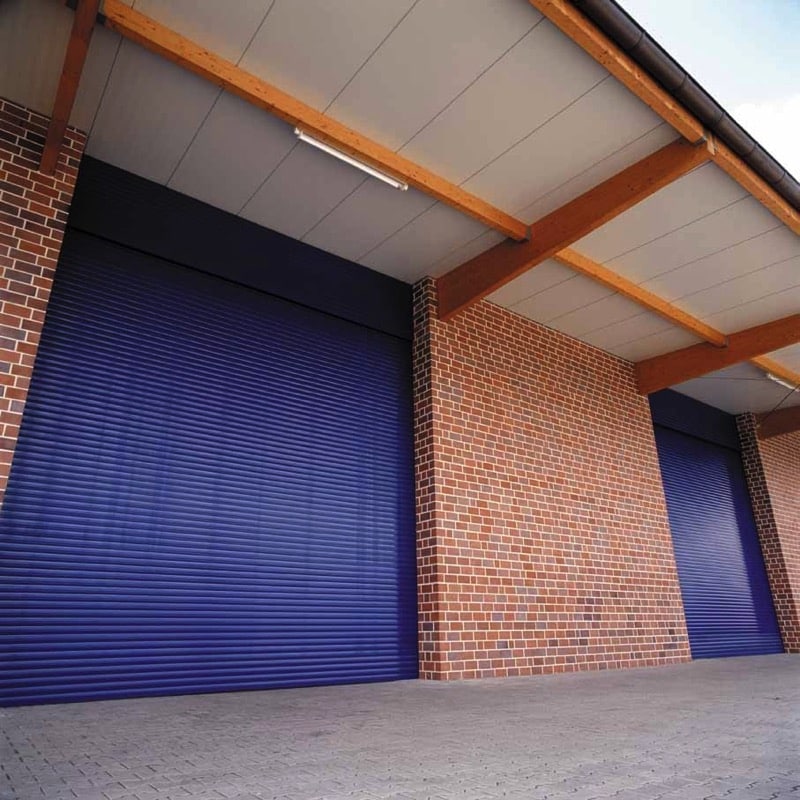

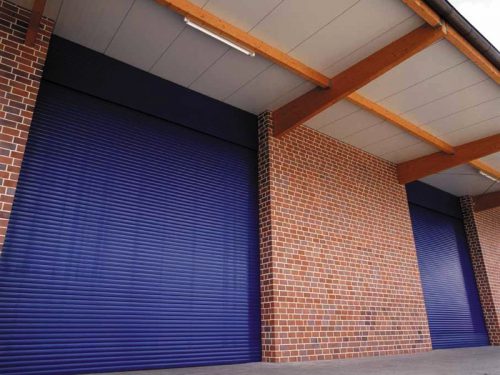

The E77 Elite security shutter has been rated SR2 by the Loss Prevention Certification Board and is also Secured by Design. Its double-skinned extruded aluminium profile provides exceptional strength and security for openings up to 5m wide and 25m² in area. It is commonly installed in commercial and retail applications with electric operation and a choice of operation methods available.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
