Overview |
|
Description | Extruded aluminium security shutter. |
Applications | Domestic, commercial, shop front, offices. |
Security Level | High. |
Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|

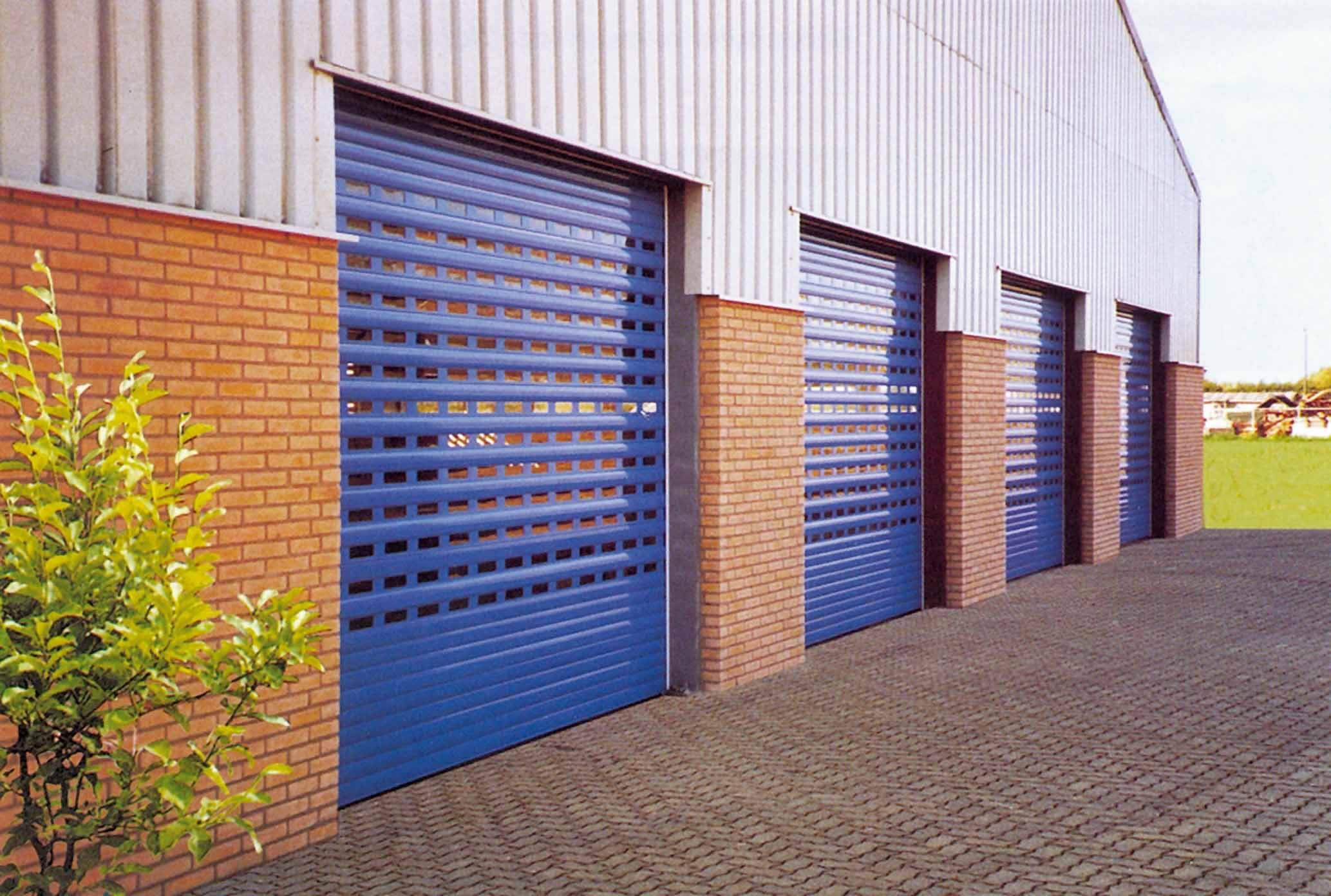

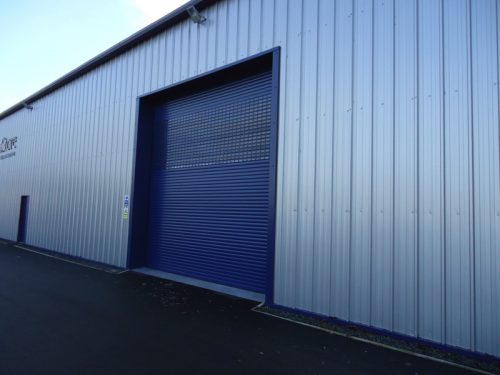

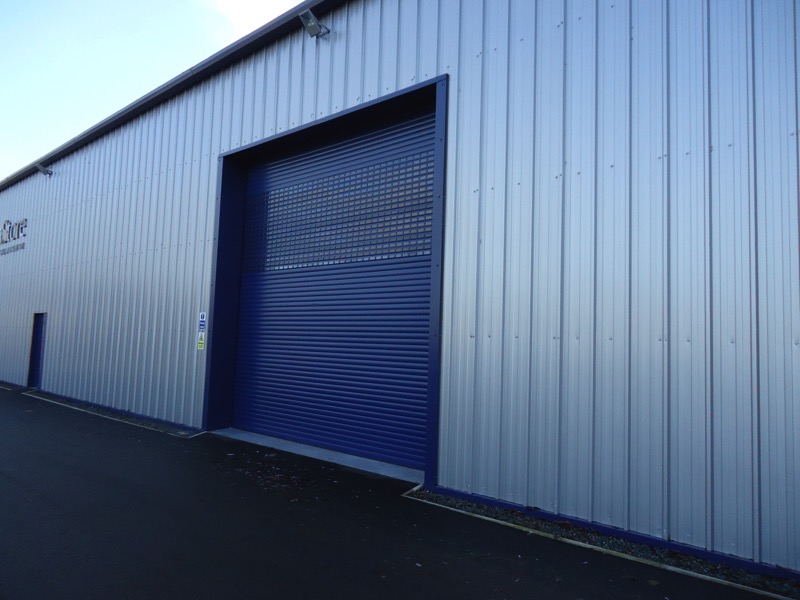

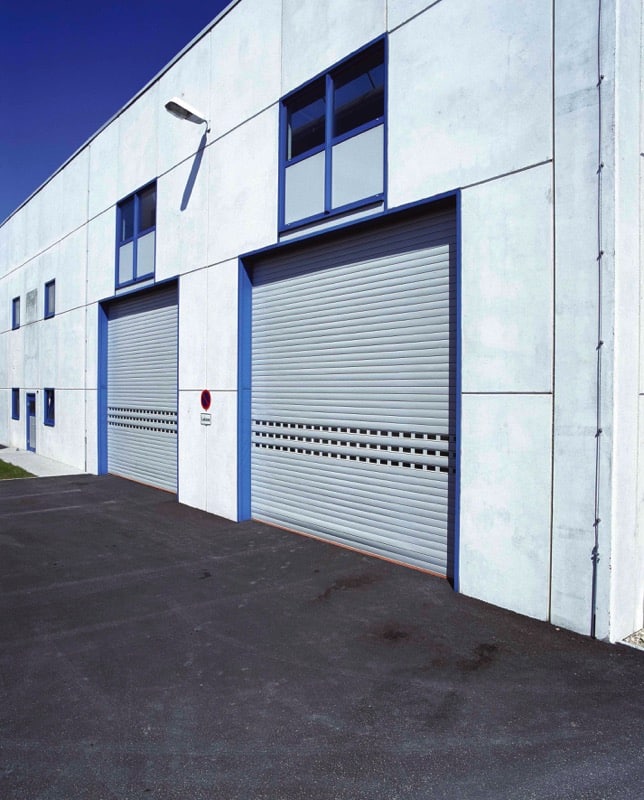

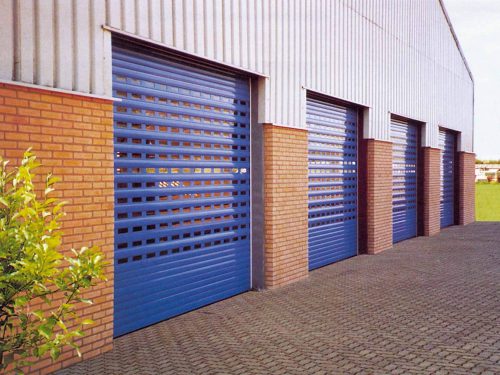

Slat | Double-skinned extruded aluminium. Punched (V77) and perforated (P77) profiles can be combined to offer partial or full vision as required. |
Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. |
Guides | Extruded aluminium with brush inserts. |
Bottom Slat | Extruded aluminium with rubber weather seal. |
Measurements |
|
Slat Face | 77mm |
Weight | 8.5kg/m² |
Max Width | 6500mm |
Max Area | 25m² |
Guide Width | 70mm, 90mm, 150mm |
U-Value | N/A |
Finishes |
|
Curtain | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Box | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy tubular motor & internal rocker or external key switch as standard. Safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group, remote or mobile phone activation. |
Manual | Manual operation is available but not common for the E77 as the shutter tends to be used to cover larger openings |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1650 | 250 |
| 2700 | 300 |
| 4640 | 360 |
E77

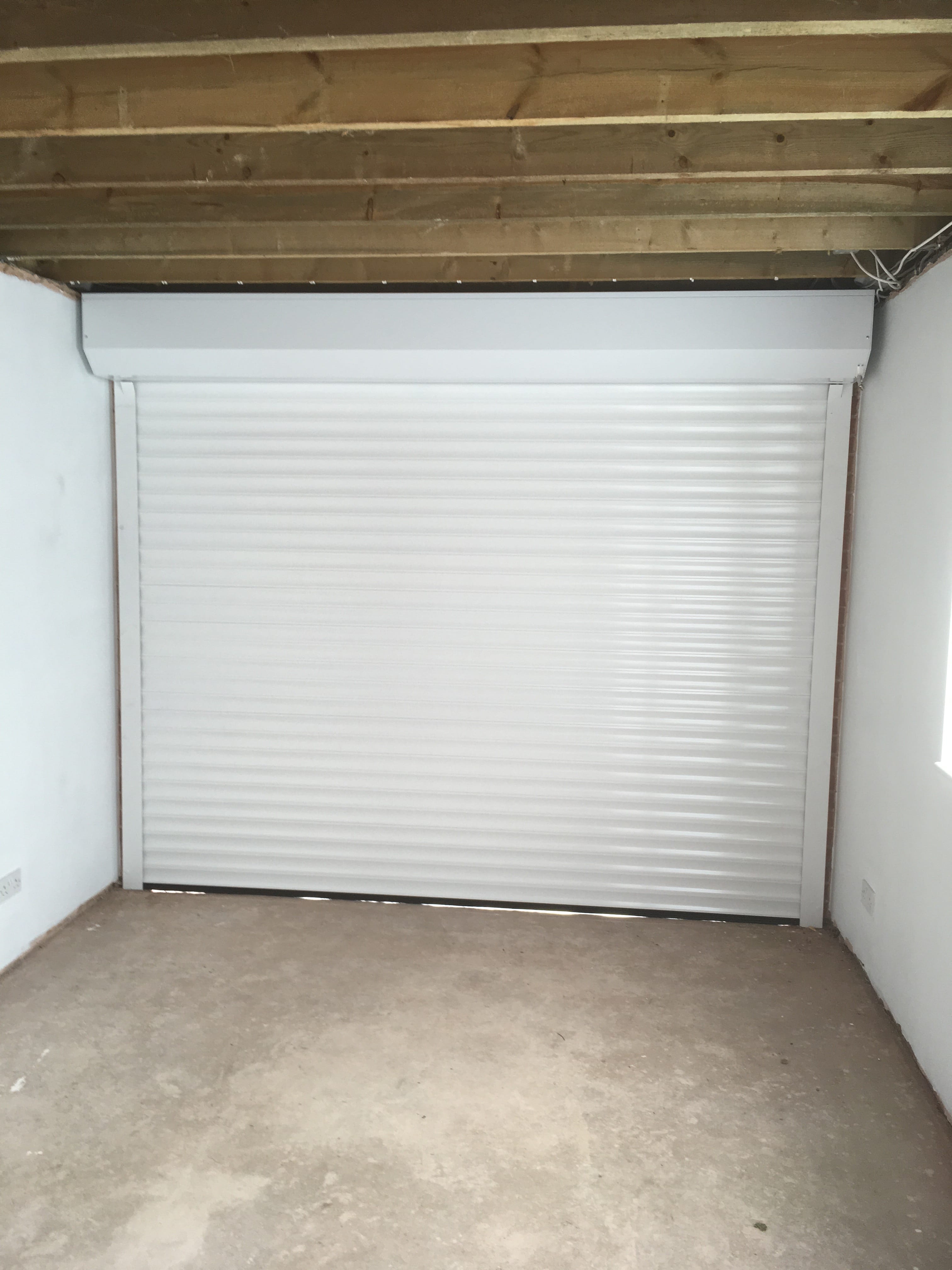

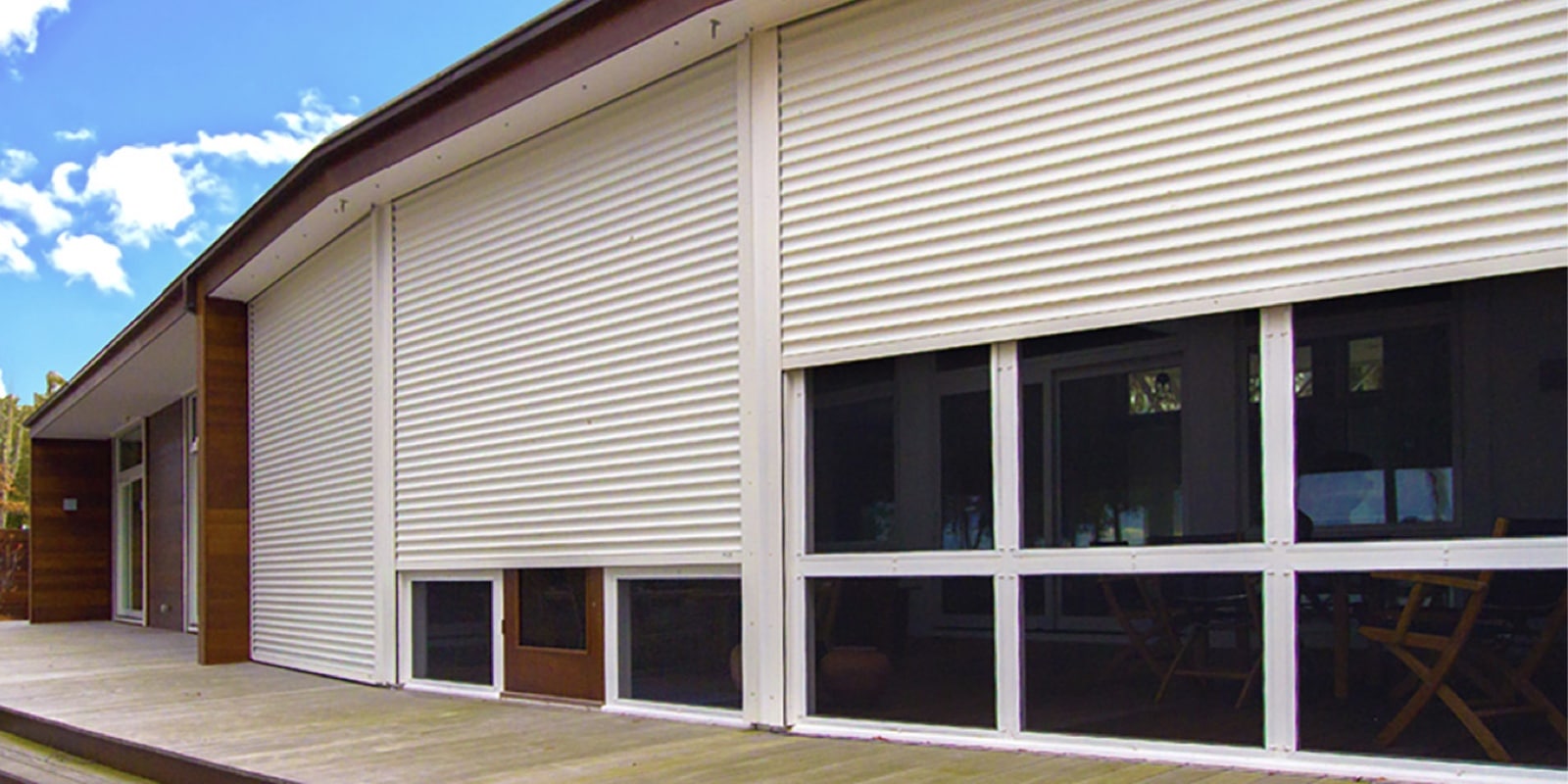

The E77 roller shutter has double-skinned extruded 77mm aluminium slats offering strength and security. Options include powder coating any RAL / BS colour and a wide range of operation methods, from switches to remote controls and mobile phone activation. The E77 is suitable for openings up to 25m² and 5m wide in commercial and industrial applications.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our exerienced engineers.
