Overview |
|
Description | Insurance-approved steel security shutter. |
Applications | Commercial, industrial, public. |
Security Level | High. Secured by Design and SR3 rated according to LPCB LPS 1175: Issue 7. |
Fitting | Internal face fit. |
Components |
|
Slat | Double-skinned mild steel with optional insulted core. |
Casing | Galvanised steel casing & end plates as standard. Optional fascia / custom design casings available on request (surcharge applies). |
Guides | Galvanised steel with brush seals. |
Bottom Slat | Galvanised steel with rubber weather seal. |
Measurements |
|
Slat Face | 81mm |
Weight | 37kg/m² |
Max Width | 7000mm |
Max Area | 10m² (tubular motor), 35m² (outboard motor) |
Guide Width | 85mm wind guide |
U-Value | 1.5W/m²K (with insulated core) |
Finishes |
|
Curtain | Galvanised as standard. Option to powder coat any RAL / BS colour or to choose from a range of plastisol finishes. |
Casing | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Tubular Motor = NRG Econom tubular motor with internal rocker or external key switch as standard with safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Outboard Motor = GfA Safedrive & Ranger three phase motors with safety brake, chain manual override & TS959 push button control station as standard. Both tubular & outboard motors have numerous control option variants such as group, remote or mobile phone activation. |
Manual | Please speak to the Roché office to discuss your requirements. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1500 | 400 |
| 2500 | 450 |
| 3250 | 500 |
| 4000 | 550 (outboard motor only) |
| 5000 | 600 (outboard motor only) |

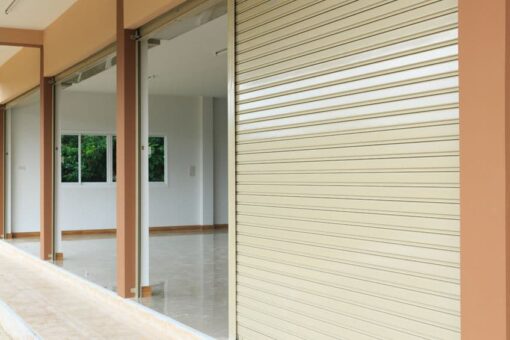

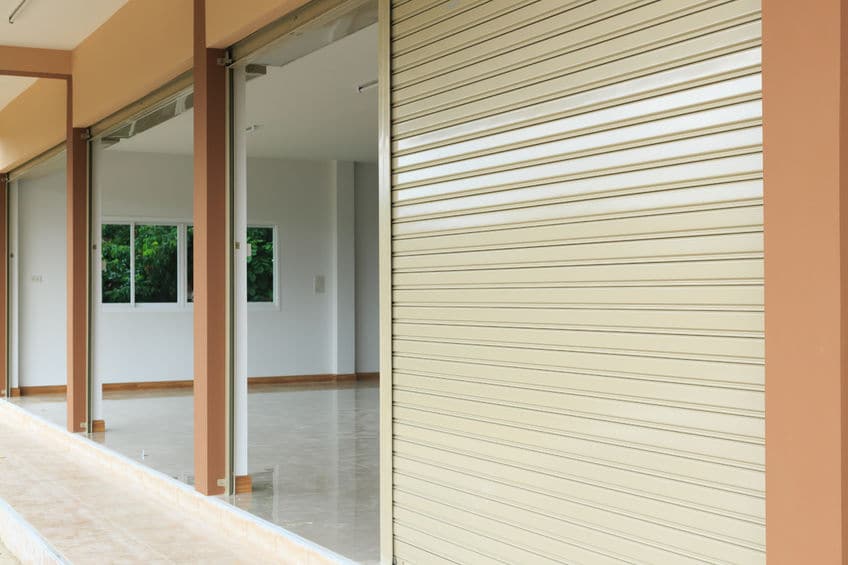

i100 Elite SR3

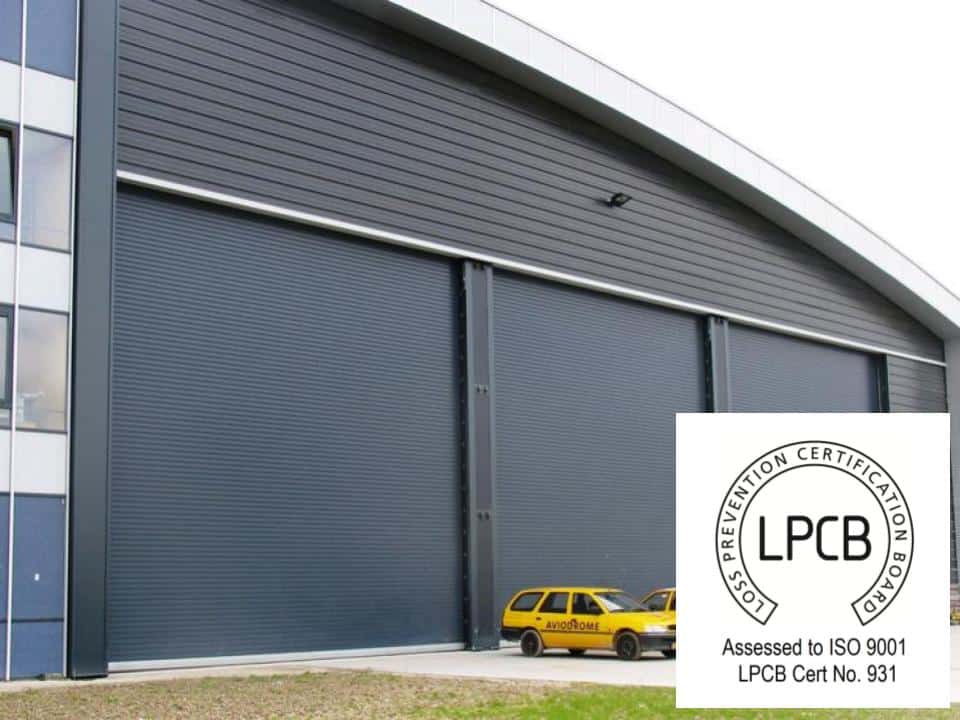

The i100 Elite SR3 has been tested and certified by the Loss Prevention Certification Board (LPCB) and Secured by Design. It has been rated at SR3 according to LPS1175, making it suitable for very high security sites. Openings up to 7m wide (10m²) can be protected, with an optional insulated core available on request. The i100 Elite SR3 is electrically operated with a choice of tubular or outboard motors and control systems.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
