Overview |
|
Description | Insurance-approved steel security shutter. |
Applications | Commercial, industrial, public. |
Security Level | High. Secured by Design and SR4 rated according to LPCB LPS 1175: Issue 7. |
Fitting | Internal face fit. |
Components |
|

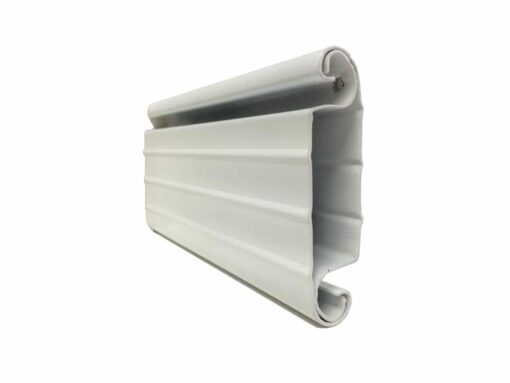

Slat | Double-skinned mild steel. |
Casing | Galvanised steel casing & end plates as standard. Optional fascia / custom design casings available on request (surcharge applies). |
Guides | Galvanised steel with brush seals. |
Bottom Slat | Galvanised steel with rubber weather seal. |
Measurements |
|
Slat Face | 81mm |
Weight | 100kg/m² |
Max Width | 3000mm (tubular motor), 7000mm (outboard motor) |
Max Area | 4m² (tubular motor), 35m² (outboard motor) |
Guide Width | 85mm wind guide |
U-Value | 1.5W/m²K (with insulated core) |
Finishes |
|
Curtain | Galvanised as standard. Option to powder coat any RAL / BS colour or to choose from a range of plastisol finishes. |
Casing | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Tubular Motor = NRG Econom tubular motor with internal rocker or external key switch as standard with safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Outboard Motor = GfA Safedrive & Ranger three phase motors with safety brake, chain manual override & TS959 push button control station as standard. Both tubular & outboard motors have numerous control option variants such as group, remote or mobile phone activation. |
Manual | Please speak to the Roché office to discuss your requirements. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1750 | 400 (tubular motor) |
| 2500 | 450 (tubular motor) |
| 1750 | 400 (outboard motor) |
| 2500 | 450 (outboard motor) |
| 3250 | 500 (outboard motor) |
| 4000 | 550 (outboard motor) |
| 5000 | 600 (outboard motor) |

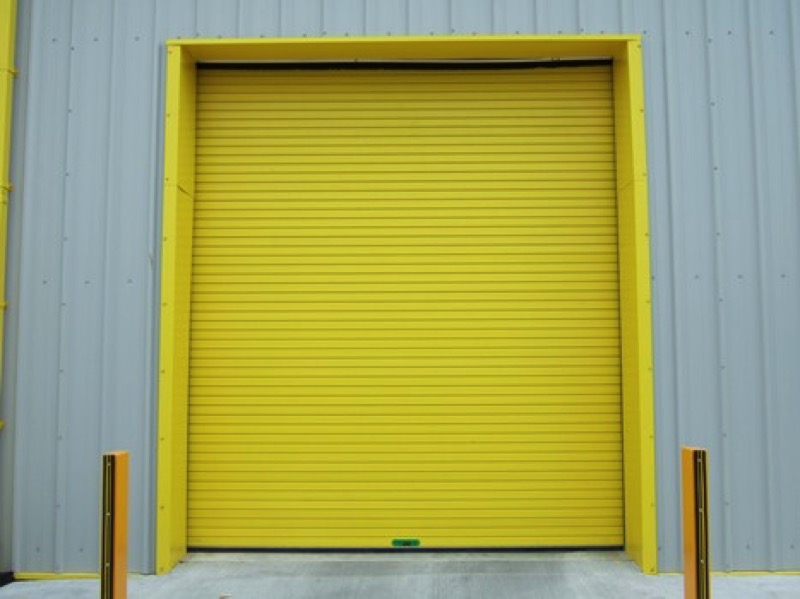

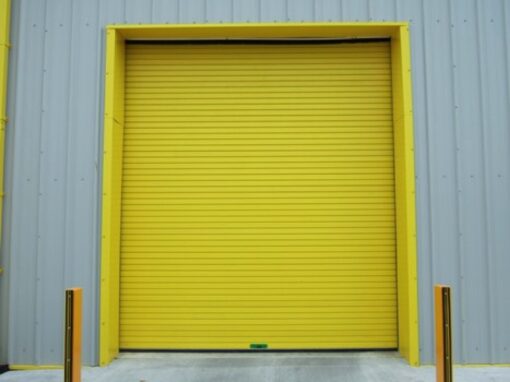

i100 Elite SR4

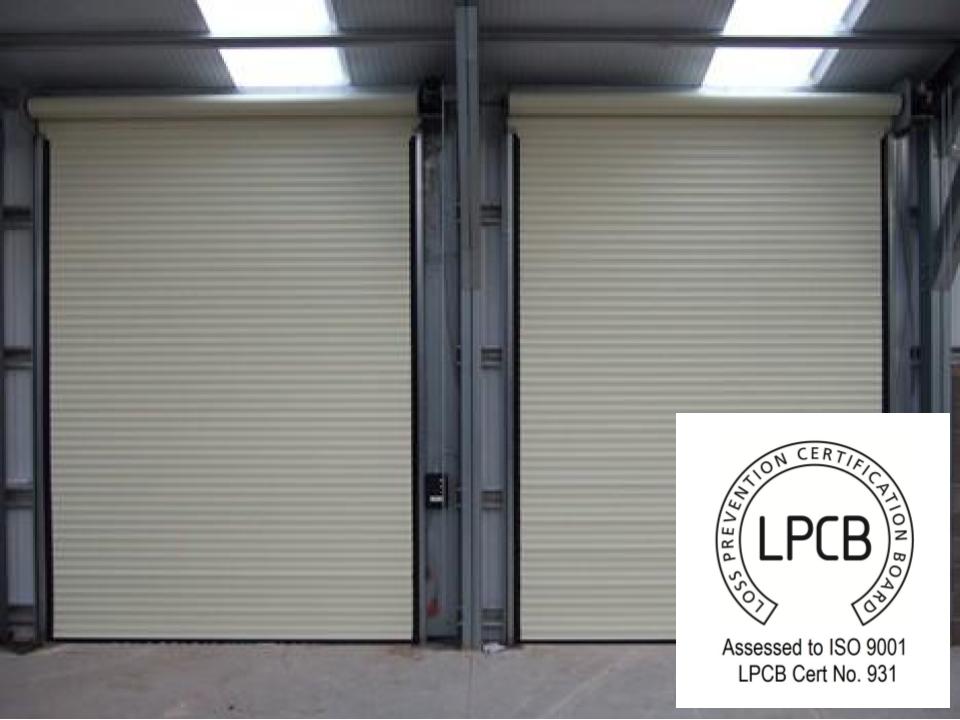

Roché’s most secure shutter. The i100 Elite SR4 has been tested by the Loss Prevention Certification Board (LPCB) to SR4 level, according to LPS 1175. It is also Secured by Design (a Police Preferred Specification) and insurance approved. Special design features such as wind locking guides and bullet locks have made this steel roller shutter a solution for the highest security sites, such as government buildings and banks.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
