Overview |
|
Description | Insulated aluminium security shutter. |
Applications | Domestic, light commercial, offices. |
Security Level | Medium. |
Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|

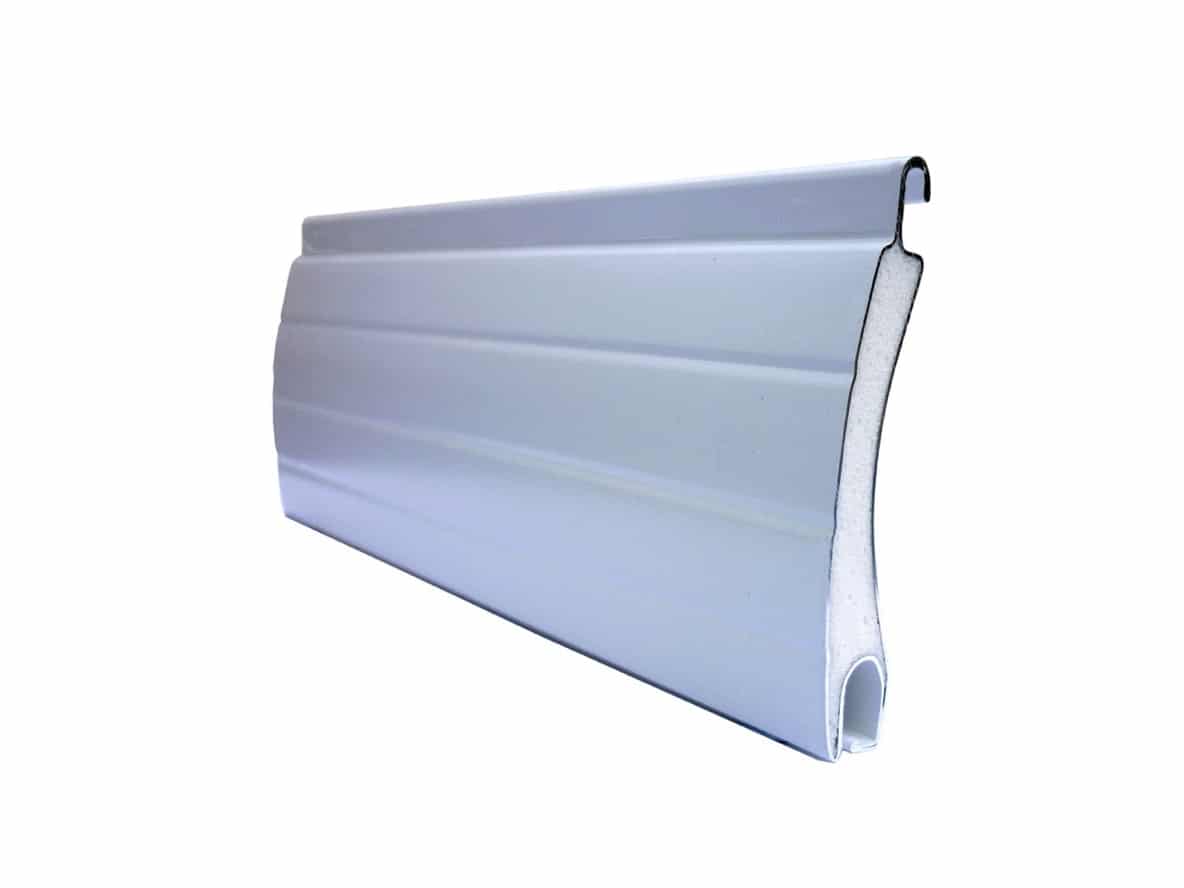

Slat | Double-skinned polyester powder-coated aluminium with polyurethane foam insulating core. Hard foam variant available for enhanced performance (surcharge applies). |
Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. Circular box available in 165mm and 205mm sizes (surcharge applies). |
Guides | Extruded aluminium with brush inserts. |
Bottom Slat | Extruded aluminium with rubber weather seal. |
Measurements |
|
Slat Face | 55mm |
Weight | 4.5kg/m² |
Max Width | 5000mm |
Max Area | 12m² |
Guide Width | 66mm, 75mm |
U-Value | 2.2W/m²K |
Finishes |
|
Curtain | White, brown, cream, grey and silver, vented and unvented options. |
Box | White or brown as standard, option to powder coat any RAL / BS colour (surcharge applies). |
Guides | White or brown as standard, option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy tubular motor & internal rocker or external key switch as standard. Safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group, remote or mobile phone activation. |
Manual | Cord Belt - A swivel winder coils the belt within a compact box. Spring & Lock - A counter-balanced spring assembly with a key-lock bottom slat and handles. Rod & Crank - A geared rod and crank handle winds the shutter. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1745 | 205 |
| 2900 | 250 |
| 4200 | 300 |
M511

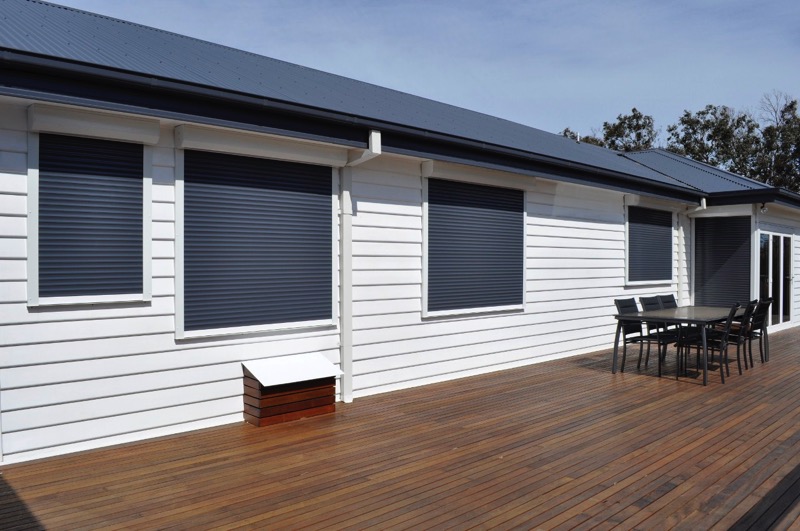

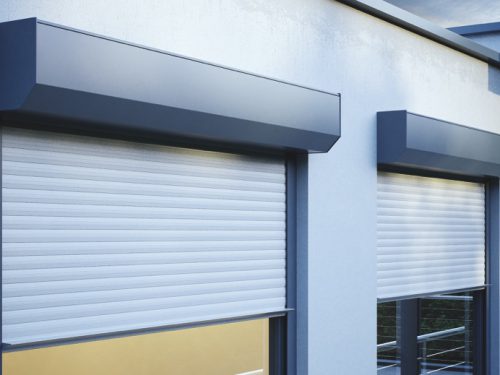

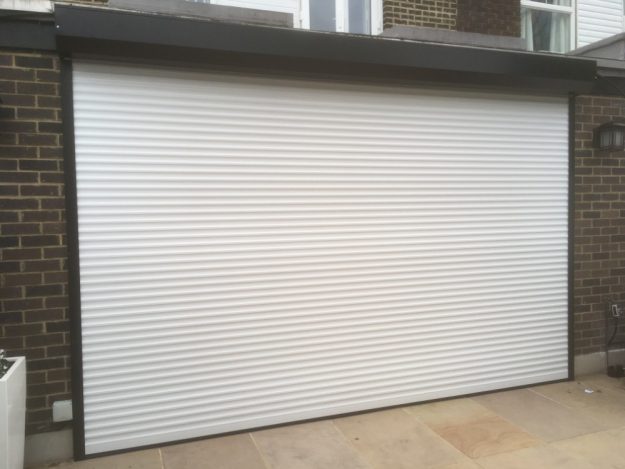

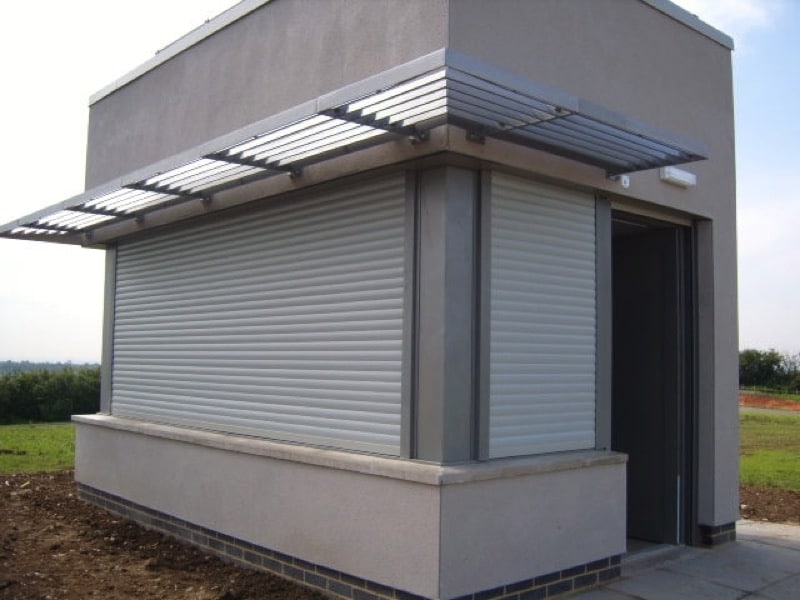

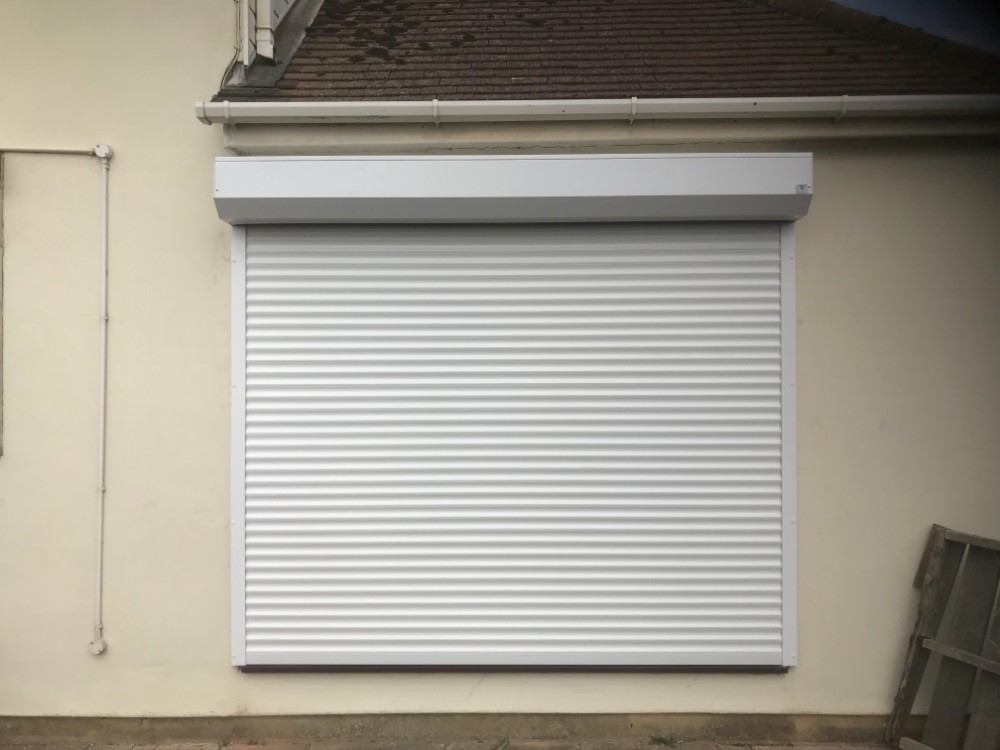

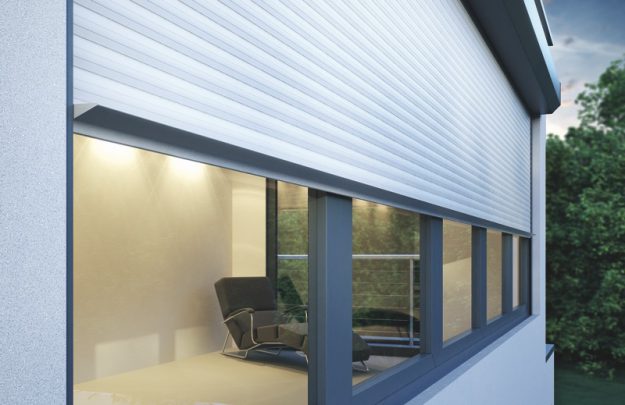

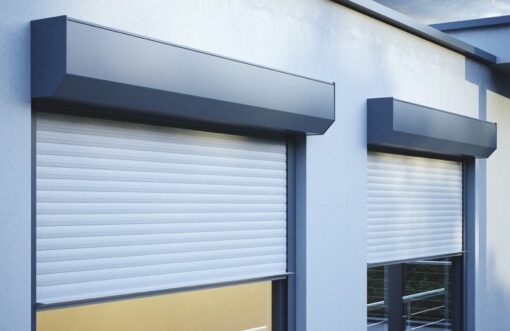

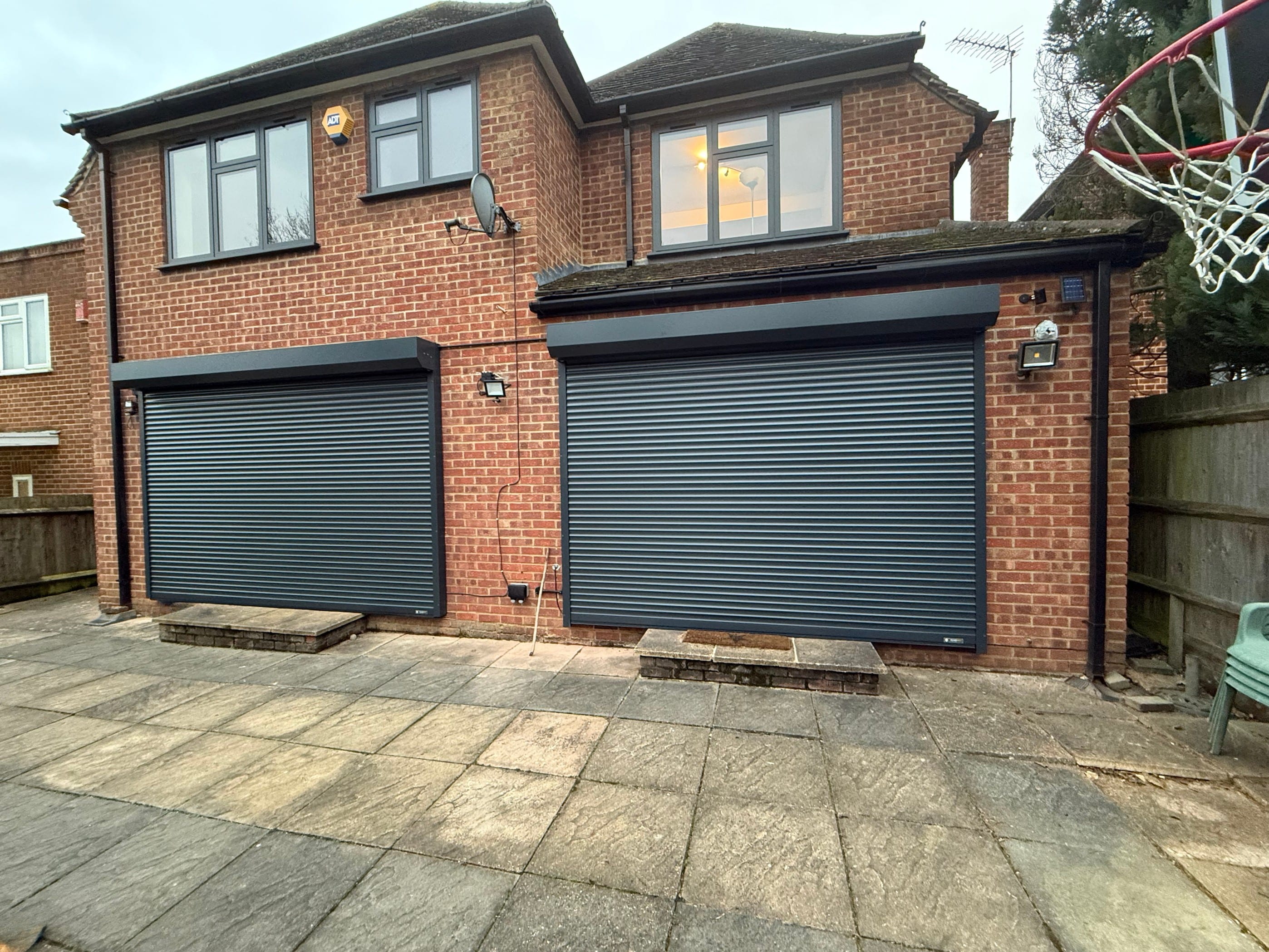

The M511 insulated security shutter provides security and soundproofing to domestic, commercial and office premises. It has been designed to add security to small to medium openings measuring up to 12m². A choice of colour options are available as standard, with various control options including internal and external switches and remote controls. A high performance hard foam variant of the M511 is also available on request.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
