Overview |
|
Description | Extruded aluminium security shutter with perforated profile for vision. |
Applications | Domestic, commercial, shop front, offices. |
Security Level | High. |
Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|

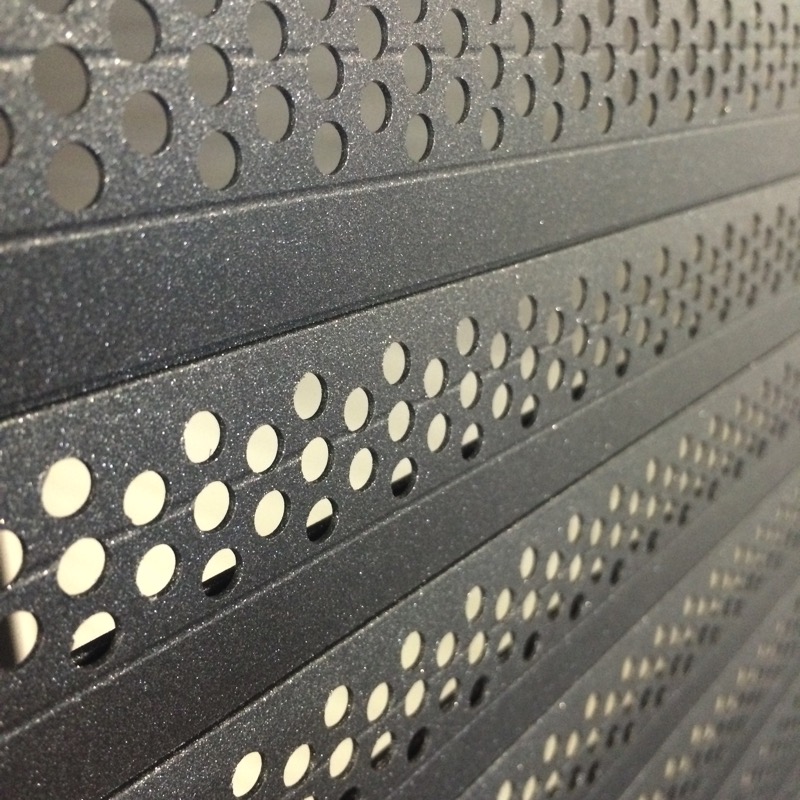

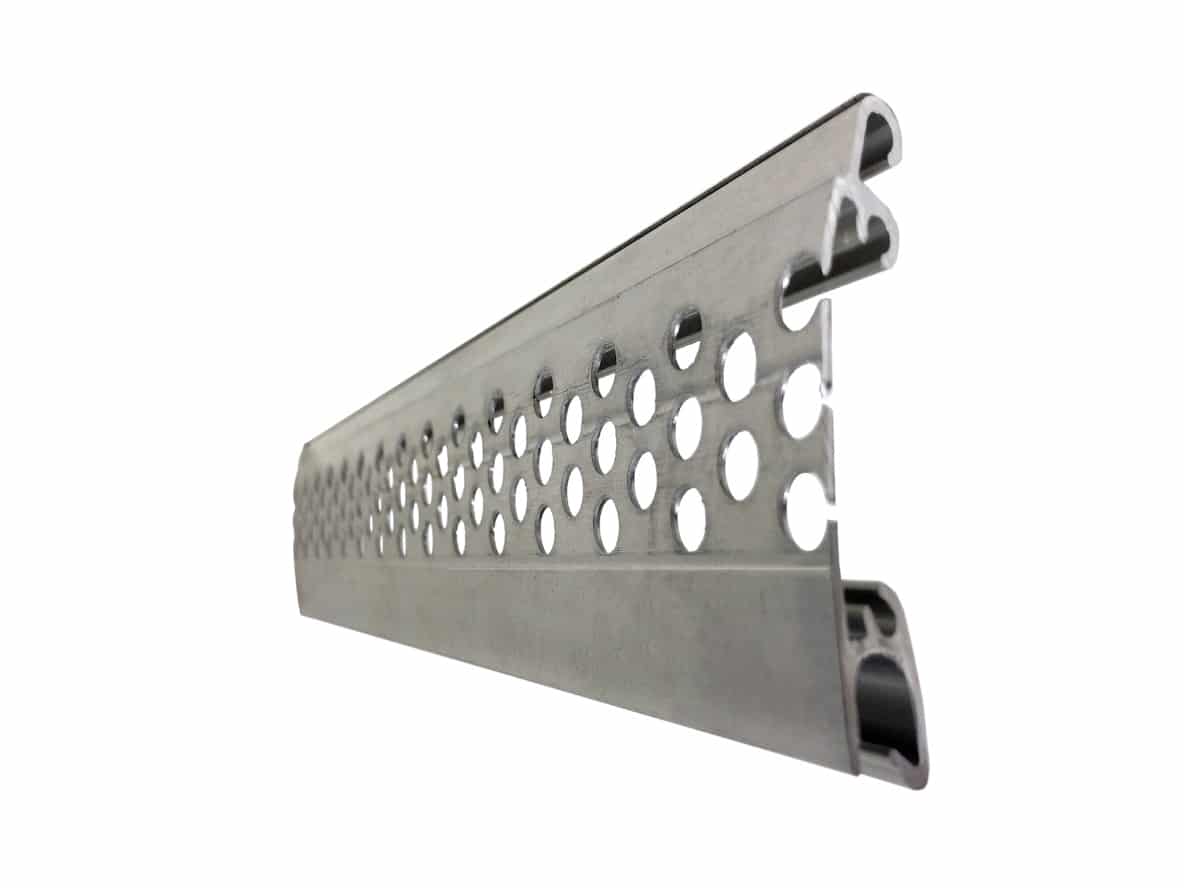

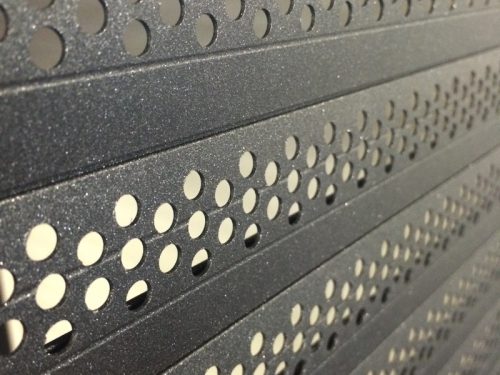

Slat | Double-skinned extruded aluminium with perforated vision profile. Solid (E37) and punched (V37) can be combined to offer partial or full vision as required. |
Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. Circular box available in 165mm and 205mm sizes (surcharge applies). |
Guides | Extruded aluminium with brush inserts. |
Bottom Slat | Extruded aluminium with rubber weather seal. |
Measurements |
|
Slat Face | 37.5mm |
Weight | 5kg/m² |
Max Width | 4000mm |
Max Area | 12m² |
Guide Width | 45mm, 53mm, 55mm, 60HD |
U-Value | N/A |
Finishes |
|
Curtain | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Box | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy tubular motor & internal rocker or external key switch as standard. Safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group, remote or mobile phone activation. |
Manual | Available on request. Electric operation required for LPCB and Secured by Design certification. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1050 | 1535 |
| 1820 | 180 |
| 2795 | 205 |
| 3550 | 250 |
| 4700 | 300 |
P37

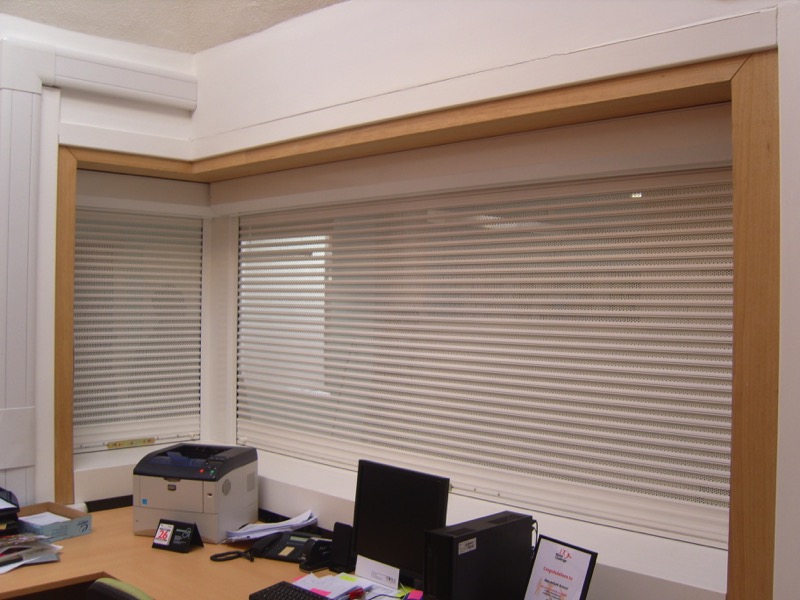

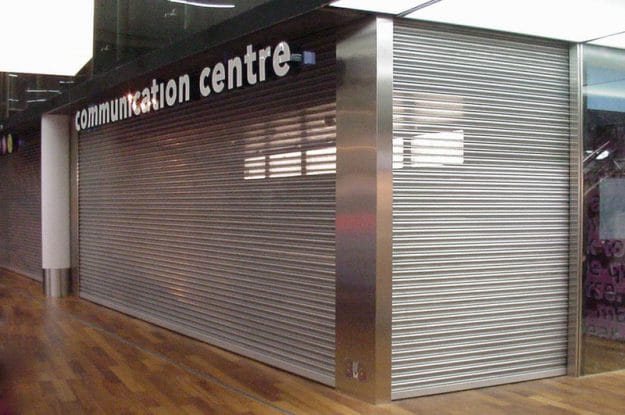

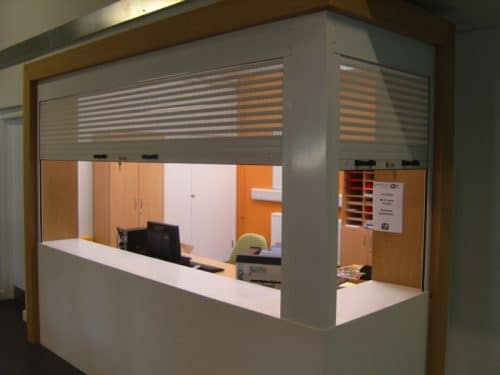

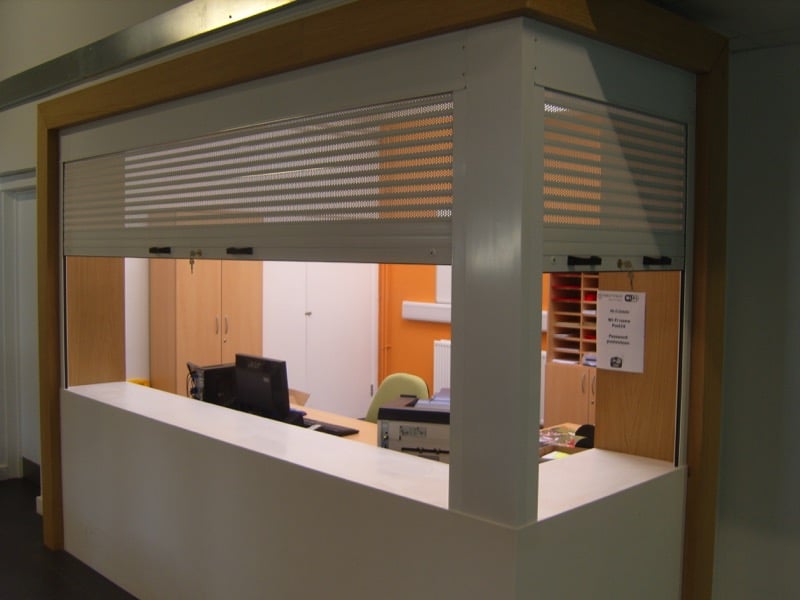

The P37 roller shutter is made from extruded aluminium slats which have been perforated to allow vision through the shutter. It is suitable for smaller commercial and shop front openings up to 12m². The P37’s narrow slats measure just 37.5mm, allowing them to roll tightly to fit into compact boxes as small as 150mm. A choice of electric tubular motor and various manual operation methods are available.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
