Overview |
|
Description | Steel security shutter with perforated profile for vision. |
Applications | Commercial, industrial. |
Security Level | High. |
Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|

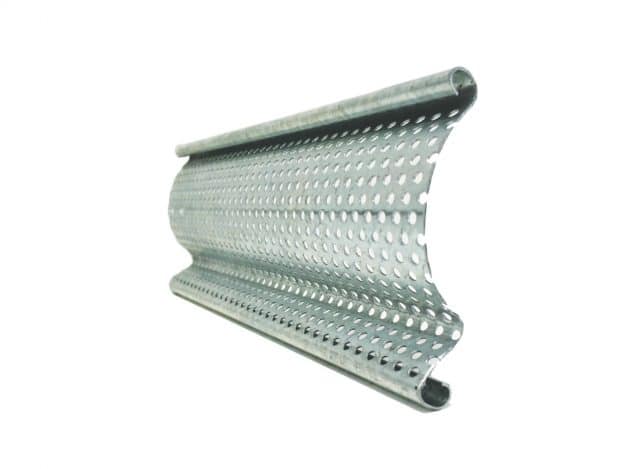

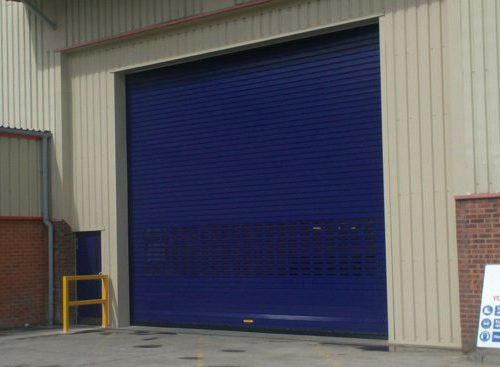

Slat | Single-skinned curved steel with a perforated vision profile. Wall thickness of 0.7mm, 0.9mm or 1.2mm, depending on overall shutter opening width. Solid (S76) and punched (V76) profiles can be combined to offer partial or full vision as required. |
Casing | Galvanised steel casing & end plates as standard. Optional fascia / custom design casings available on request (surcharge applies). |
Guides | Galvanised steel. |
Bottom Slat | L' or 'T' shaped bottom rail. |
Measurements |
|
Slat Face | 76mm |
Weight | 8.3kg/m², 10.6kg/m², 14.2kg/m² (dependent on material thickness) |
Max Width | 7000mm (tubular motor), 12000mm (outboard motor), 3000mm (manual spring & lock) |
Max Area | 29m² (tubular motor), 49m² (outboard motor), 9m² (manual spring & lock) |
Guide Width | 50mm, 65mm |
U-Value | N/A |
Finishes |
|
Curtain | Galvanised finish as standard. Option to powder coat any RAL / BS colour or to choose from a range of plastisol finishes. |
Casing | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Tubular Motor = NRG Econom tubular motor with internal rocker or external key switch as standard & safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Note: Aluminium box is only available with tubular motors. Outboard Motor = GfA Safedrive & Ranger three phase motors with safety brake, chain manual override & TS959 push button control station as standard. Both tubular & outboard motors have numerous control option variants such as group, remote or mobile phone activation. |
Manual | A counter-balanced spring and lock assembly is available for shutters up to 9m². A counter-balanced helical ‘loaded shutter’ controlled via hand chain is available for larger applications. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 2695 | 305 (tubular motor) |
| 4000 | 355 (tubular motor) |
| 5000 | 400 (tubular motor) |
| 2200 | 305 (outboard motor) |
| 3650 | 355 (outboard motor) |
| 6000 | 400 (outboard motor) |
P76 (Steel Housing)
The P76 has a single skin curved steel slat which is perforated for vision and ventilation. A steel housing and guide system provides strength and security, while a choice of motors support a wide range of opening sizes up to 49m². The P76 is suitable for industrial applications such as manufacturing and storage facilities and has a wide choice of motor and control options.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
