Overview |
|
Description | Self-repairing roll up high speed door. |
Applications | Industrial. |
Fitting | Internal face fit. |
Components |
|
Curtain | Polyester fabric coated with coloured PVC. Cogged side edges self repair following the event of impact. Insulated and antistatic curtains available on request. One row of vision panels with rounded corners as standard, more available if required. An emergency exit can also be incorporated into the curtain. |
Frame | Very high modular density polyethylene, with very low friction coefficient. |
Roller | Galvanised steel. |
Measurements |
|
Curtain Weight | 900g/m² (1500g/m² with insulation) |
Frame Thickness | 2mm |
Max Width | 6000mm |
Max Area | 32m² |
Operating Temperature | -20ºC to 50ºC |
Opening Speed | 2.5m/s |
Wind Load | Class 2 EN 12424 |
Finish |
|
Curtain | Wide range of coloured PVC options to choose from. |
Operation |
|
Electric | Three phase, self braking motor. Single phase control board with inverter. Electronic card controlled without interfaces. Automatic closing timer or deadman modes also available. Wireless bottom safety edge and photo cell to monitor whether the curtain is rolling on the barrel. |

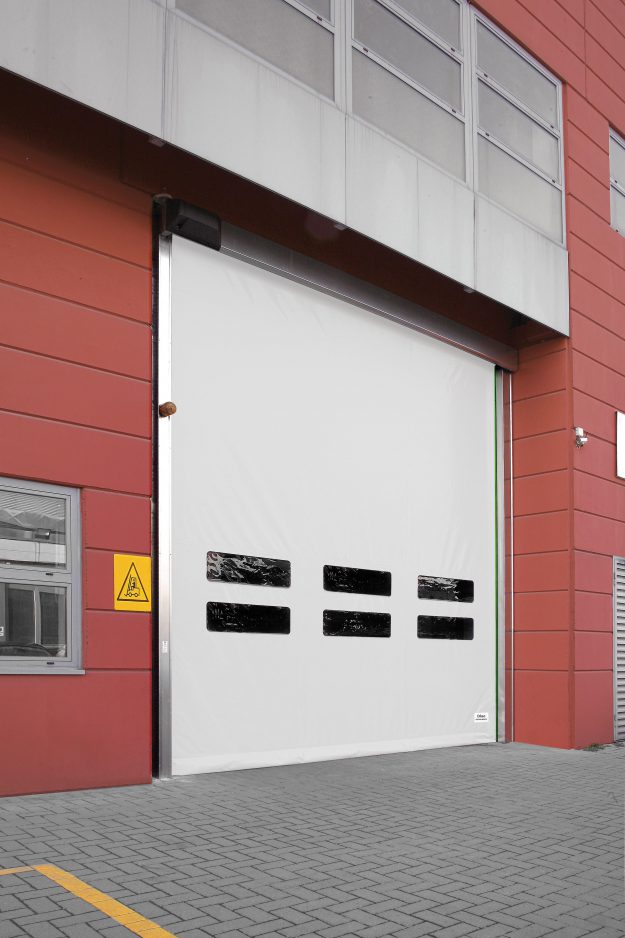

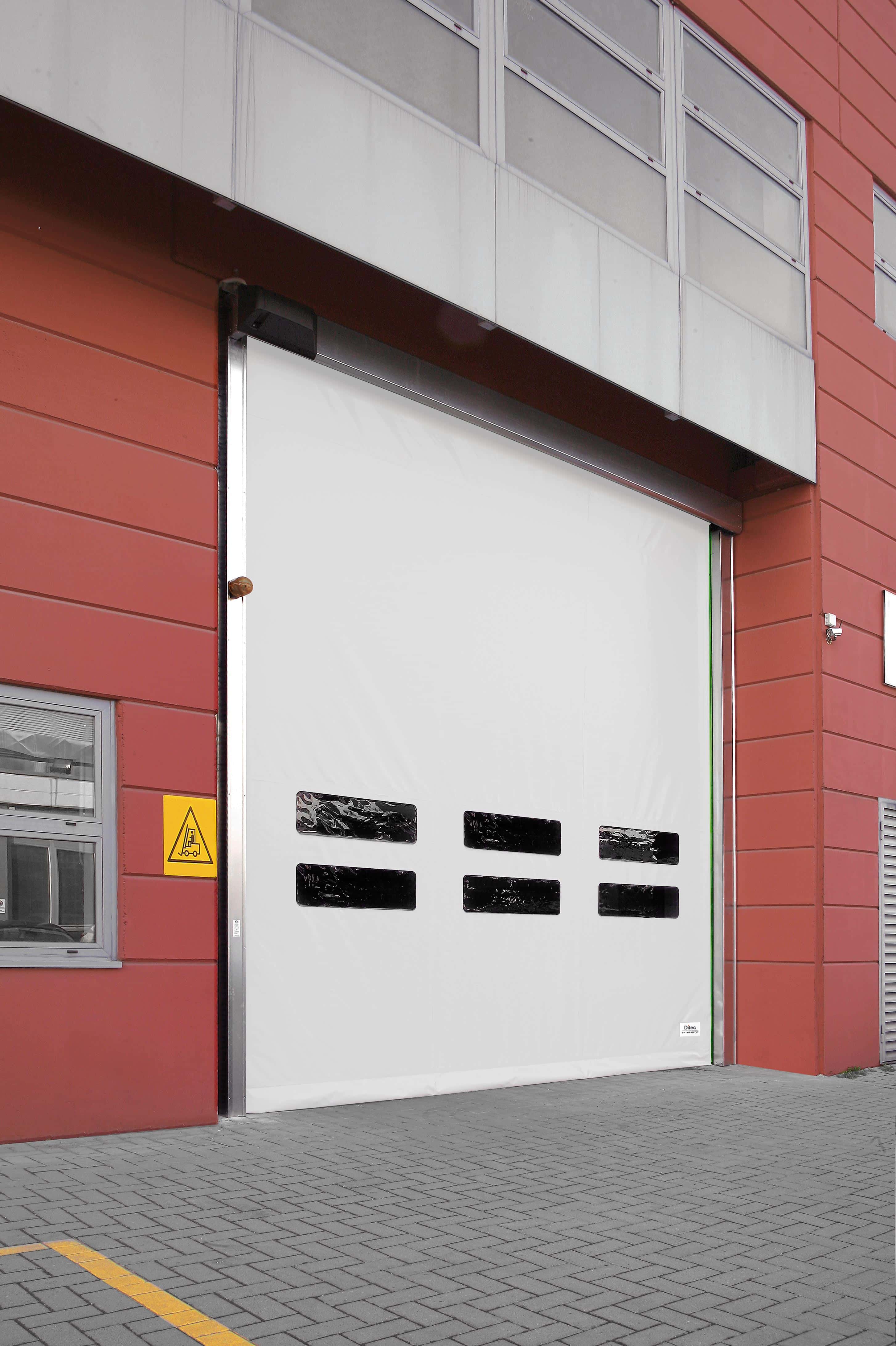

Rapid Repair High Speed Door
The Rapid Repair high speed door benefits from self-repairing guides to prevent damage in the case of impact with the curtain. Should a vehicle come into contact with the fabric, for example, the cog-like edges returns the curtain to its natural state. A three phase motor provides high frequency and heavy duty operation for industrial applications including manufacturing, processing, storage and transport premises.
Speak to the Roché team for advice on which high speed door is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
