Overview |
|
Description | Steel security shutter with aluminium box and guide channels. |
Applications | Commercial, industrial. |
Security Level | High. |
Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|

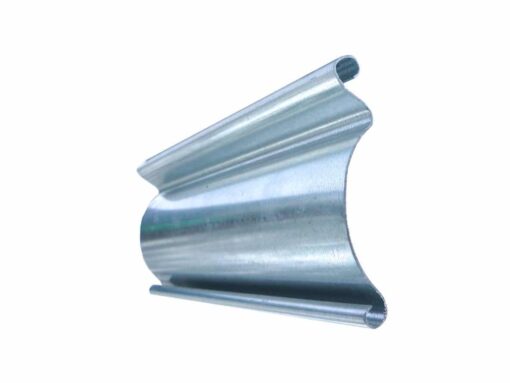

Slat | Single-skinned curved steel. Wall thickness 0.7mm, 0.9mm or 1.2mm, depending on overall shutter opening width. Perforated (P76) and punched (V76) profiles can be combined to offer partial or full vision as required. |
Box | Roll-formed aluminium box & end plates. |
Guides | Extruded aluminium with brush inserts. |
Bottom Slat | Extruded aluminium with rubber weather seal. |
Measurements |
|
Slat Face | 76mm |
Weight | 9.8kg/m², 12.5kg/m², 16.7kg/m² (dependent on wall thickness) |
Max Width | 6000mm |
Max Area | 18m² |
Guide Width | 70mm, 90mm, 150mm |
U-Value | N/A |
Finishes |
|
Curtain | Galvanised finish as standard. Option to powder coat any RAL / BS colour or to choose from a range of plastisol finishes. |
Box | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | NRG Econom tubular motor with internal rocker or external key switch as standard & safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group, remote or mobile phone activation. Outboard motor available with S76 steel system. |
Manual | A counter-balanced spring and lock assembly is available for shutters up to 9m². A counter-balanced helical ‘loaded shutter’ controlled via hand chain is available for larger applications. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 2700 | 300 |
| 4000 | 360 |

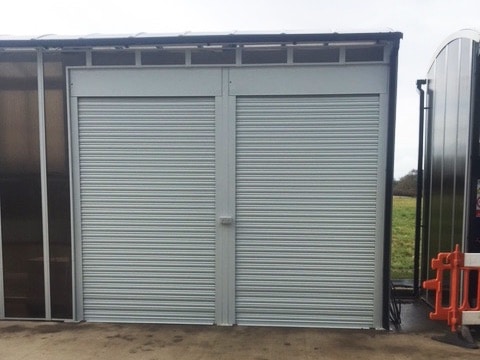

S76 (Aluminium Housing)

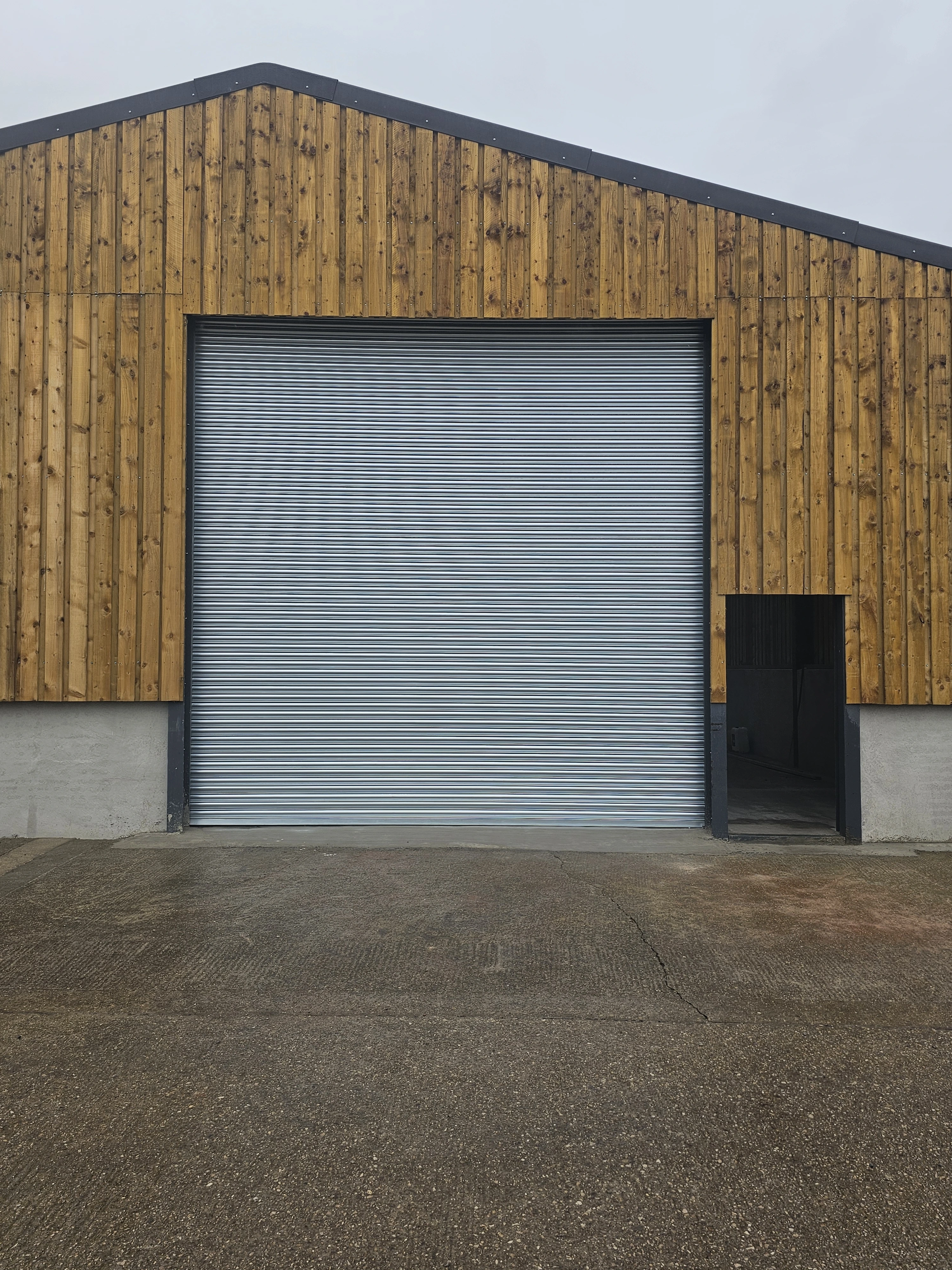

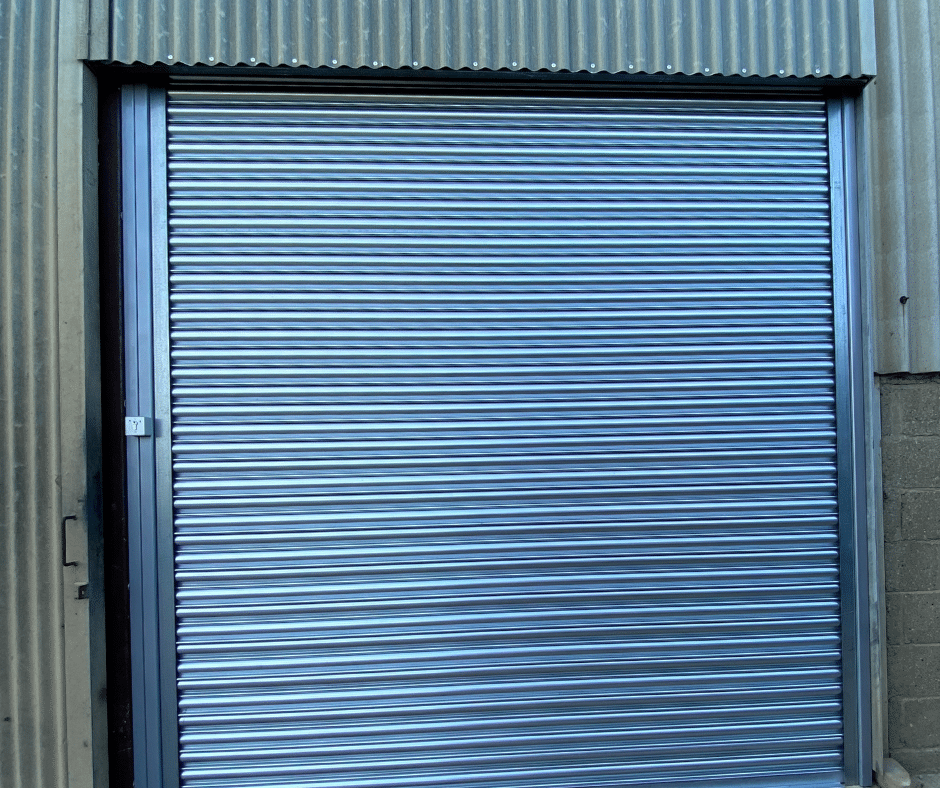

The S76 steel security shutter is available with an aluminium housing for neat and stylish aesthetics. Electric operation is provided via a tubular motor, enabling a wide range of control operations to suit any application. It is suitable for many types on industrial application, including factories, warehouses, storage units and agricultural buildings.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
