Overview |
|
Description | Insurance approved insulated aluminium security shutter. |

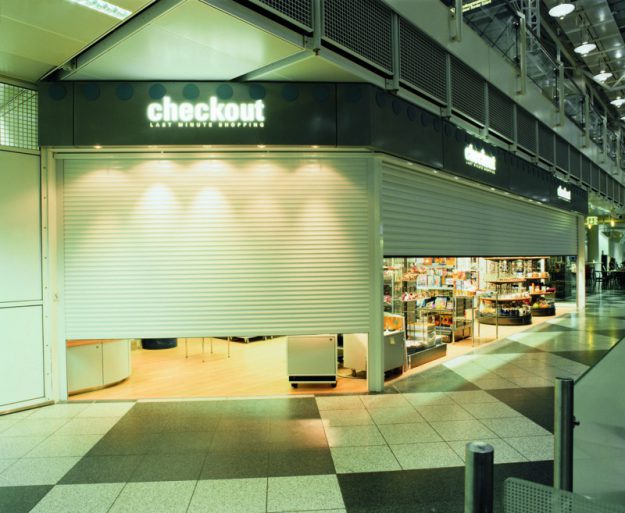

Applications | Commercial, shop front, offices. |
Security Level | High. Secured by Design and SR1 rated according to LPCB LPS 1175: Issue 7. |
Fitting | Internal face fit. |
Components |
|
Slat | Double-skinned aluminium with polyurethane foam insulating core. |
Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. |
Guides | Extruded aluminium with brush inserts. |
Bottom Slat | Extruded aluminium with rubber weather seal. |
Measurements |
|
Slat Face | 77mm |
Weight | 5.5kg/m² |
Max Width | 5000mm |
Max Area | 20m² |
Guide Width | 150mm |
U-Value | 1.5W/m²K |
Finishes |
|
Curtain | White, cream white, ivory, beige, silver, grey, duck egg blue, blue, red, chartwell green, sage green, fir green, moss green, velvet brown, brown, anthracite, black, painted golden oak or painted rosewood as standard. Option to powder coat any RAL / BS colour or laminate wood effect (surcharge applies). |
Box | White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy tubular motor & internal rocker or external key switch as standard. Safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group, remote or mobile phone activation. |
Manual | Available on request. Electric operation required for LPCB and Secured by Design certification. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1750 | 250 |
| 2700 | 300 |
| 4640 | 360 |

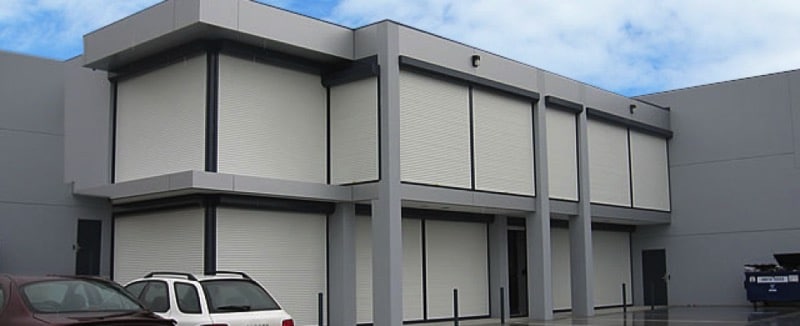

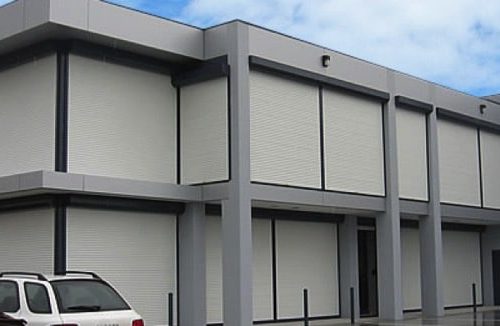

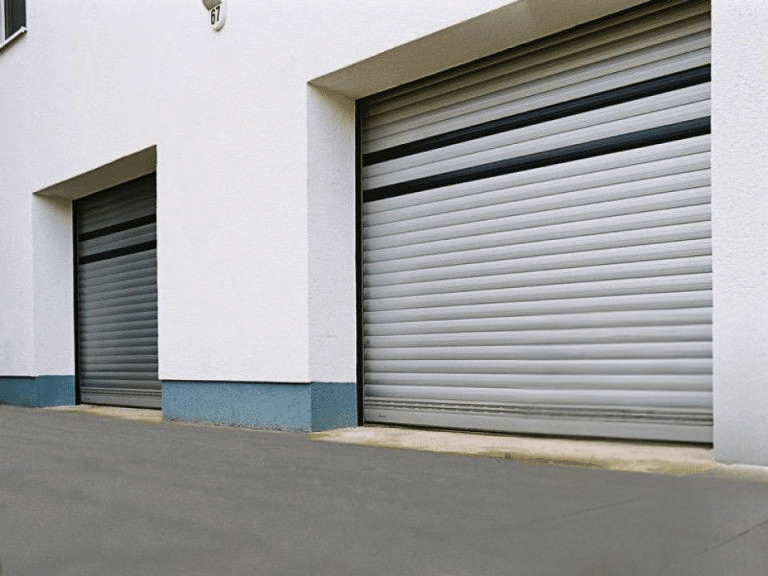

T77 Elite SR1

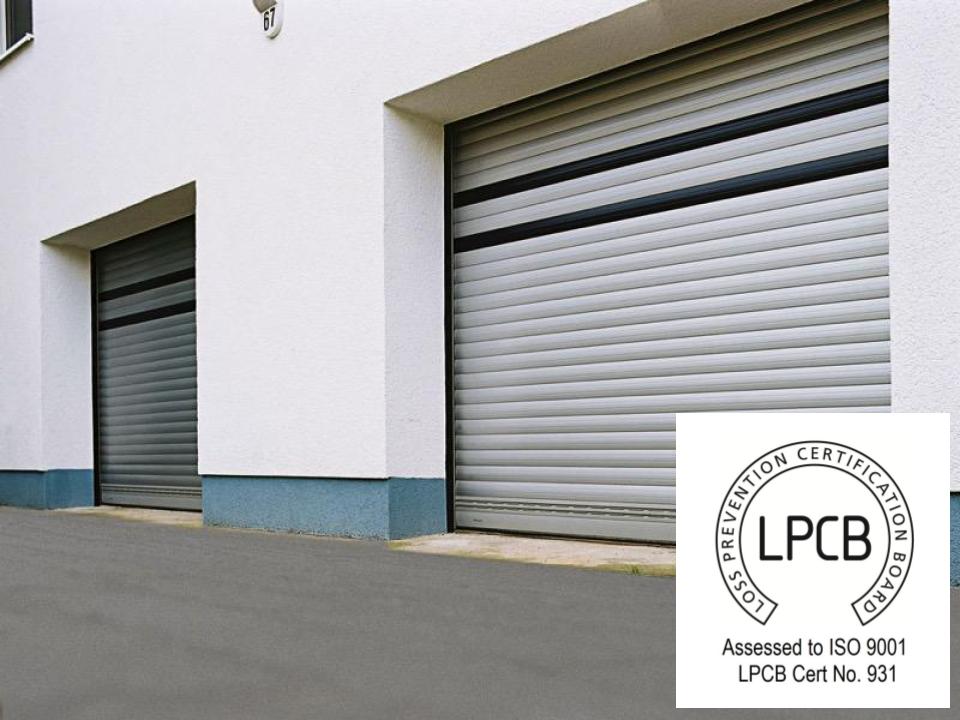

The Elite version of the T77 aluminium roller shutter has special security features and both Loss Prevention Certification Board (LPCB) and Secured by Design certification. It has been rated SR1 according to LPS1175, making it suitable for applications requiring a higher level of security. The double-skinned aluminium slat contains an insulated core, and a wide range of colours are available as standard with optional powder coating.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
Book a Free SurveyDownloads
