Overview |
|
Description | Tube and Link shutter for maximum vision. |
Applications | Commercial, shop front. |
Security Level | Medium. |
Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|

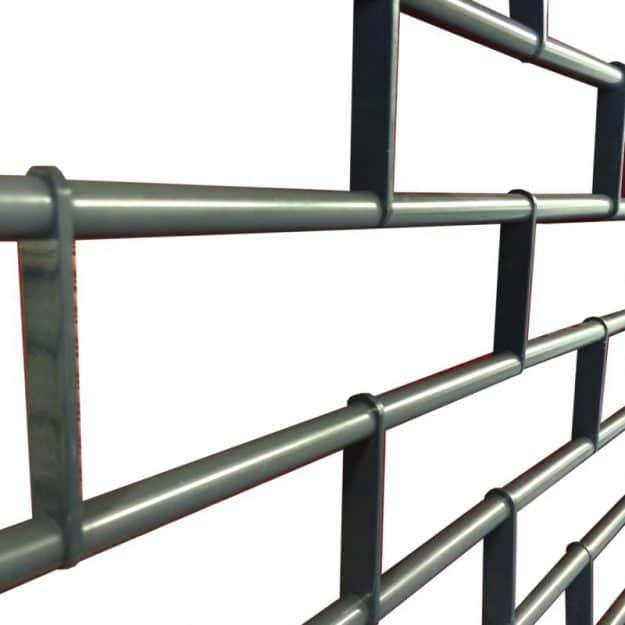

Links | Brick formation as standard, utilising 13mm diameter tubes enclosing 8mm steel rods. Vertical lattice links create 56mm high openings (lower/higher available on request), enabling 75% transparency. |
Box | Roll-formed aluminium box and end plates. |
Guides | Extruded aluminium with brush inserts. |
Bottom Rail | Steel ‘L’ or ’T’ shaped bottom rail. |
Measurements |
|
Weight | 9kg/m² |
Max Width | 6000mm |
Max Area | 20m² |
Guide Width | 70mm or 90mm |
U-Value | N/A |
Finishes |
|
Links | Anodised aluminium or powder coated. |
Box | Anodised links = white or brown as standard. Powder coated links = matching powder coated box. |
Guides | Anodised links = white or brown as standard. Powder coated links = matching powder coated guides. |
Operation |
|
Electric | NRG Econom tubular motor with internal rocker or external key switch as standard & safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Outboard motor available with Tube and Link steel system. |
Manual | Manual operation is available but not common for the Tube and Link shutter as operation may prove problematic for larger sizes. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1850 | 250 |
| 2700 | 300 |
| 4150 | 360 |
Tube and Link (Aluminium Housing)

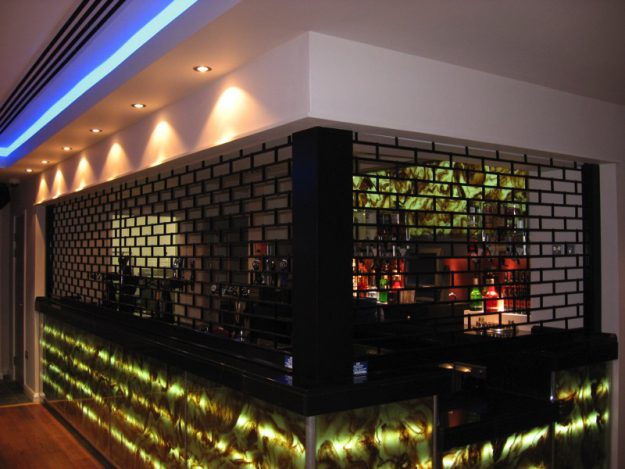

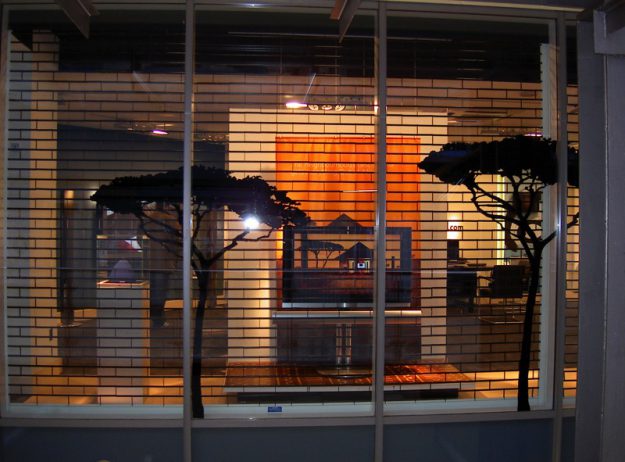

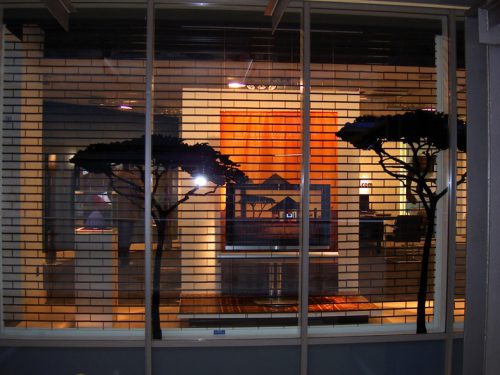

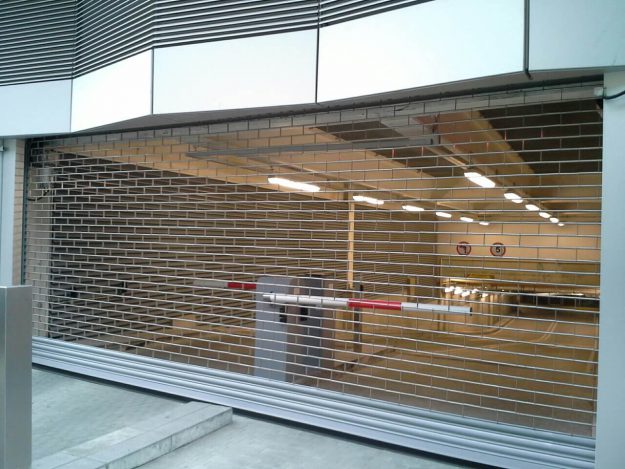

The Tube and Link security shutter uses small steel components to create large openings, for very high levels of vision through the shutter while it is closed. It is commonly installed on shop fronts, either indoors as a standalone barrier (such as within shopping centres), or behind glass on a street front scenario. This version benefits from an aluminium box and guide system.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
