Overview |
|
Description | Tube and Link shutter for maximum vision. |
Applications | Commercial, shop front. |
Security Level | Medium. |
Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|
Links | Brick formation as standard, utilising 13mm diameter tubes enclosing 8mm steel rods. Vertical lattice links create 56mm high openings (lower/higher available on request), enabling 75% transparency. |
Casing | Galvanised steel casing and end plates. |
Guides | Galvanised steel. |
Bottom Rail | Steel ‘L’ or ’T’ shaped bottom rail. |
Measurements |
|
Weight | 9kg/m² |
Max Width | 12000mm |
Max Area | 20m² (tubular motor), 72m² (outboard motor) |
Guide Width | 50mm, 65mm (windlock guide option available), 75mm, 100mm |
U-Value | N/A |
Finishes |
|
Links | Galvanised or powder coated. |
Casing | Galvanised links = galvanised as standard. Powder coated links = matching powder coated casing. |
Guides | Galvanised links = galvanised as standard. Powder coated links = matching powder coated guides. |
Operation |
|
Electric | Tubular Motor = NRG Econom tubular motor with internal rocker or external key switch as standard & safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Outboard Motor = GfA Safedrive & Ranger three phase motors with safety brake, chain manual override & TS959 push button control station as standard. Both tubular & outboard motors have numerous control option variants such as group, remote or mobile phone activation. |
Manual | Manual operation is available but not common for the Tube and Link shutter as operation may prove problematic for larger sizes. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 2695 | 305 (tubular motor) |
| 4145 | 355 (tubular motor) |
| 5200 | 400 (tubular motor) |
| 5200 | 400 (outboard motor) |
| 6000 | 450 (outboard motor) |
Tube and Link (Steel Housing)

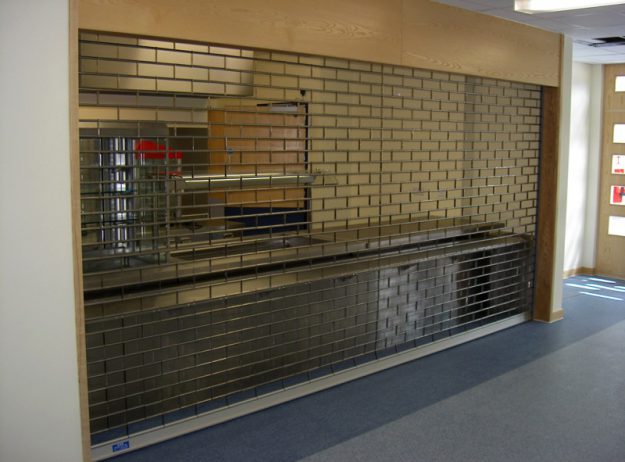

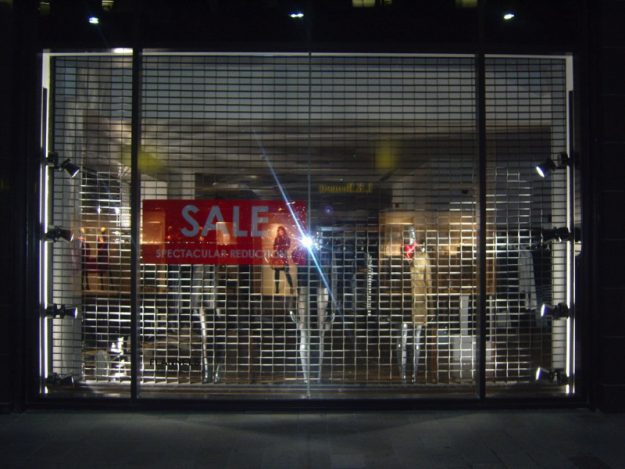

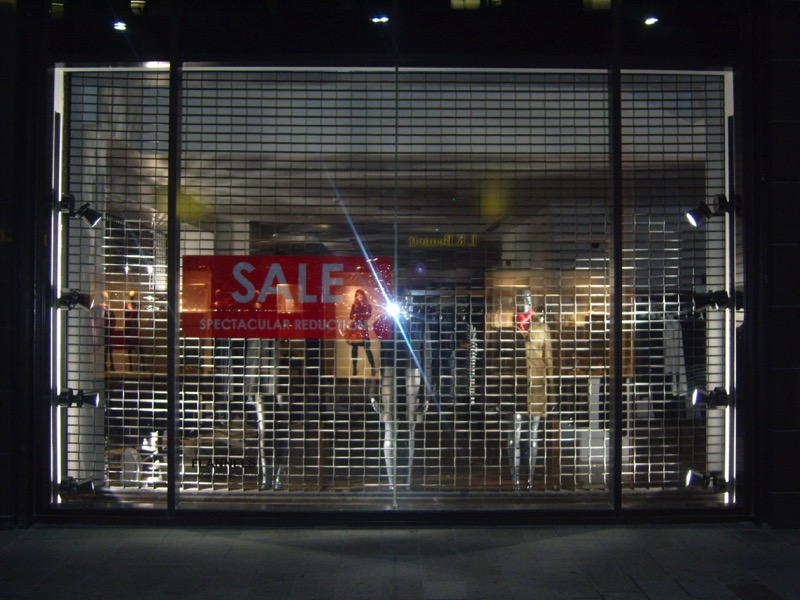

The Tube and Link security shutter is made from separate components encompassing steel rods, which create large openings for very high vision levels. It can be used behind glass or internally as a standalone barrier. The Tube and Link roller shutter is commonly used in commercial applications, such as retail premises, where products can remain on display while the shutter is closed.
