Overview |
|
Description | Extruded aluminium security shutter with punched profile for vision. |
Applications | Domestic, commercial, shop front, offices. |
Security Level | High. |
Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|

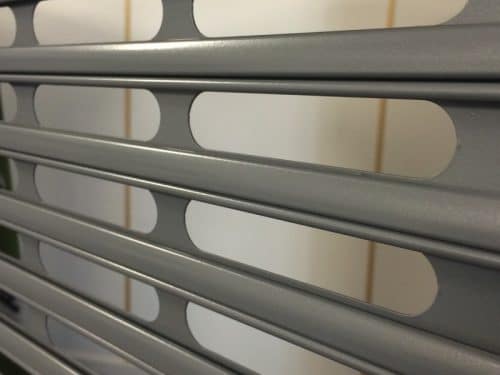

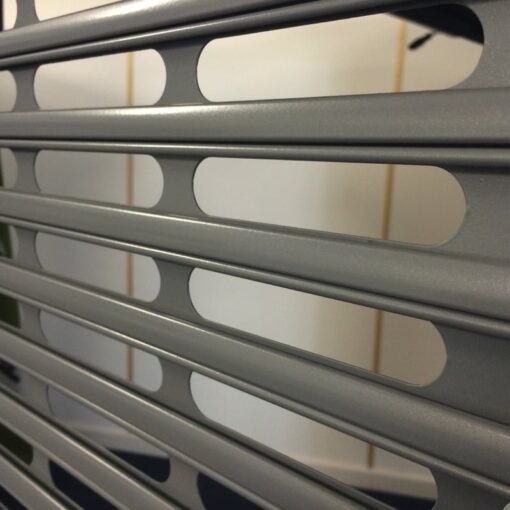

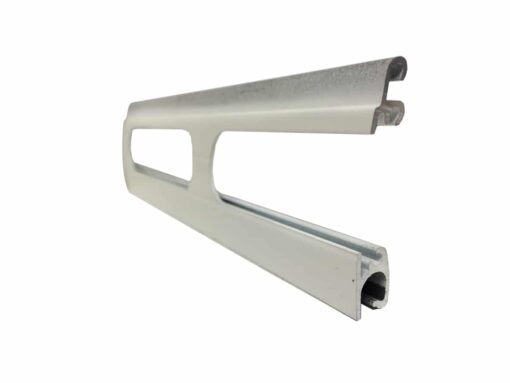

Slat | Double-skinned extruded aluminium with punched vision profile. Polycarbonate inserts available to infill punched sections. Solid (E37) and perforated (P37) profiles can be combined to offer partial or full vision as required. |
Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. Circular box available in 165mm and 205mm sizes (surcharge applies). |
Guides | Extruded aluminium with brush inserts. |
Bottom Slat | Extruded aluminium with rubber weather seal. |
Measurements |
|
Slat Face | 37.5mm |
Weight | 5.6kg/m² |
Max Width | 4000mm |
Max Area | 12m² |
Guide Width | 45mm, 53mm, 55mm, 60HD |
U-Value | N/A |
Finishes |
|
Curtain | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Box | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy tubular motor & internal rocker or external key switch as standard. Safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group, remote or mobile phone activation. |
Manual | Available on request. Electric operation required for LPCB and Secured by Design certification. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1050 | 1535 |
| 1820 | 180 |
| 2795 | 205 |
| 3550 | 250 |
| 4700 | 300 |
V37
The V37 security shutter is a perfect solution for smaller openings requiring vision. Its narrow slats roll tightly to fit into compact boxes between 150mm and 300mm, depending on the opening size (up to 12m²). They are manufactured from extruded aluminium, with punched sections forming openings for vision. Transparent infills are available for increased insulation and security.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
