Overview |
|
Description | Extruded aluminium security shutter with punched profile for vision. |
Applications | Domestic, commercial, shop front, offices. |
Security Level | High. |
Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|
Slat | Single-skinned extruded aluminium with punched vision profile (in line or brick formation). Solid (E77) and perforated (P77) profiles can be combined to offer partial or full vision as required. |
Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. |
Guides | Extruded aluminium with brush inserts. |
Bottom Slat | Extruded aluminium with rubber weather seal. |
Measurements |
|
Slat Face | 77mm |
Weight | 7.5kg/m² (without inserts), 8.8kg/m² (with inserts) |
Max Width | 6500mm |
Max Area | 25m² |
Guide Width | 70mm, 90mm, 150mm |
U-Value | N/A |
Finishes |
|
Curtain | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Box | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy tubular motor & internal rocker or external key switch as standard. Safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group, remote or mobile phone activation. |
Manual | Manual operation is available but not common for the V77 as the shutter tends to be used to cover larger openings |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1650 | 250 |
| 2700 | 300 |
| 4640 | 360 |
V77

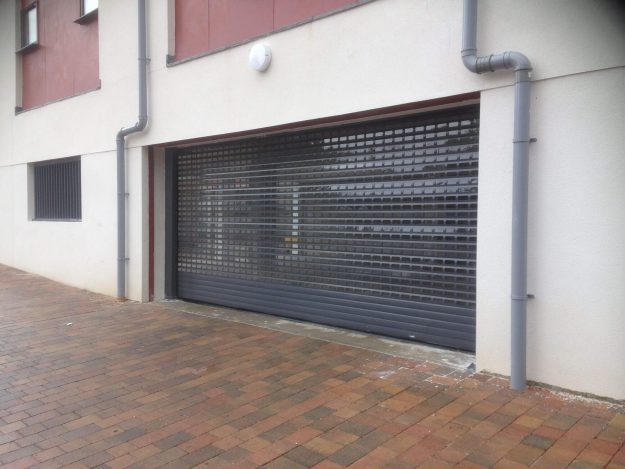

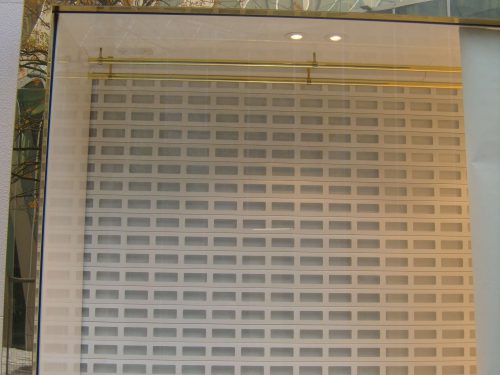

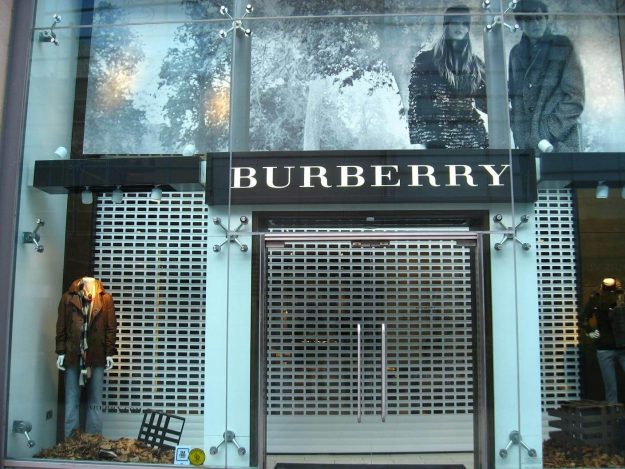

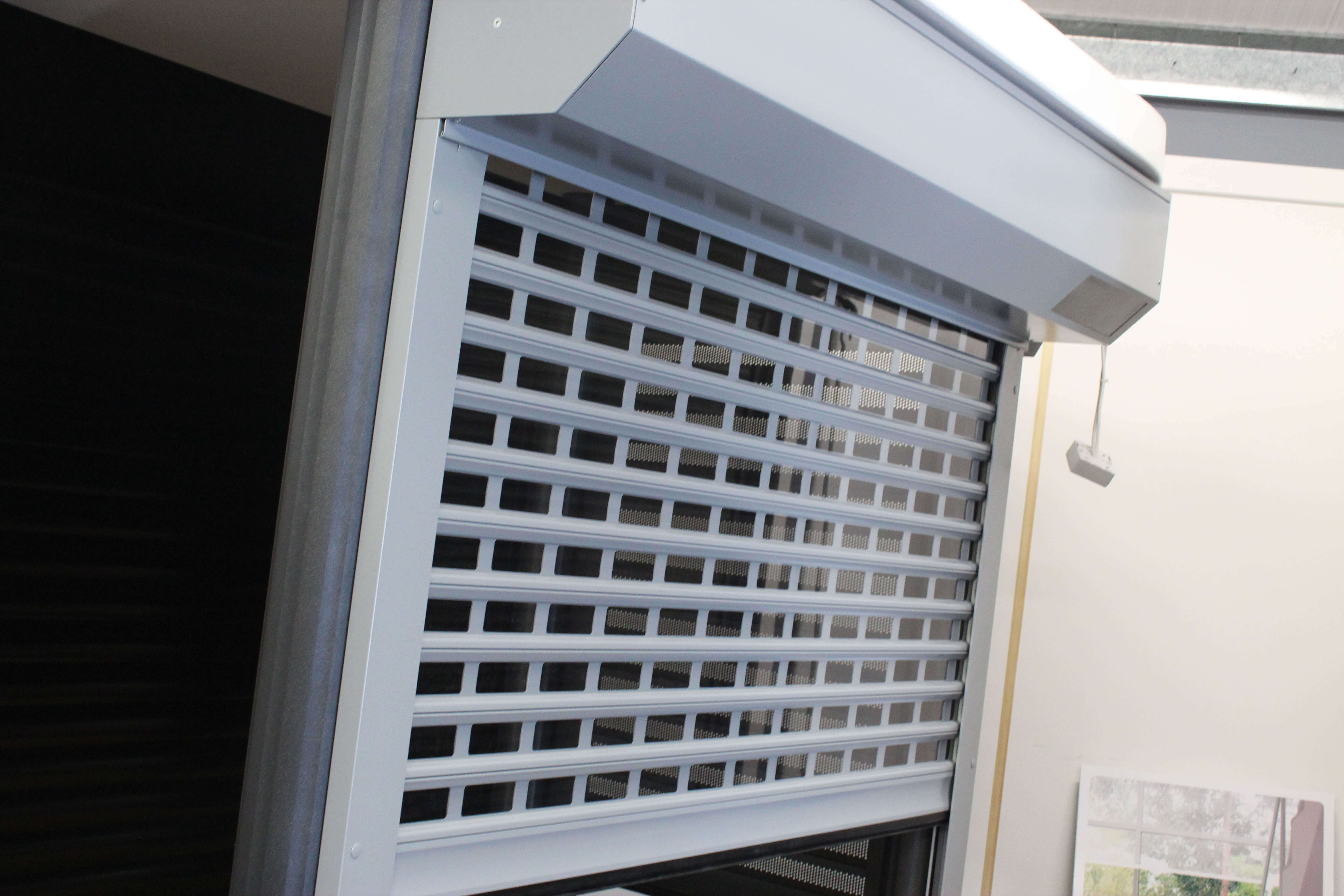

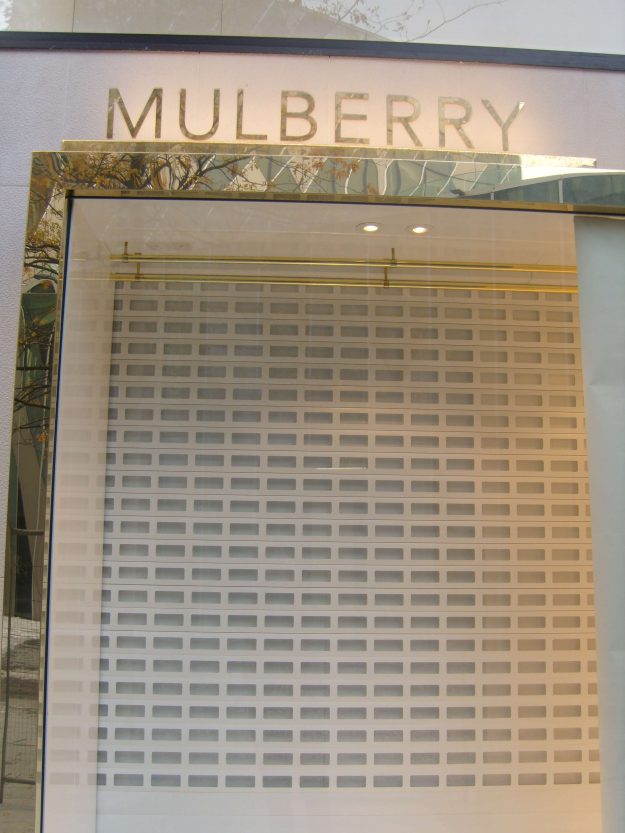

The V77 single-skinned extruded aluminium security shutter provides strength and vision for commercial and retail premises. Large punched sections within the profile allow light and air to flow through the shutter, and optional transparent inserts are available if required. The V77 profile can be combined with the E77 solid profile for partial vision, or used on its own for high levels of transparency. Remote control and other operation methods are available.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
