Overview |
|
Description | Fire-rated steel security shutter. |
Applications | Commercial, industrial, public. |
Security Level | High. Certified for fire resistance for 1 hour, according to Exova Warringtonfire Report Number 312853. |
Fitting | Internal face, external face, reveal fit. |
Components |
|

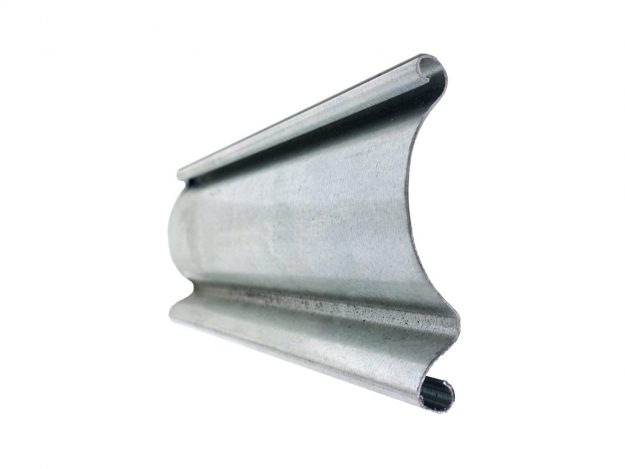

Slat | Single-skinned curved steel. Thickness of 0.7mm. |
Casing | Galvanised steel casing & end plates as standard. Larger shutters incorporate barrel support frame where required. Reveal fix installations are supplied with a fascia as standard. |
Guides | Galvanised steel. |
Bottom Rail | T' shaped bottom rail. |
Measurements |
|
Slat Face | 76mm |
Weight | 9.8kg/m² |
Max Width | 7000mm to 12000mm (dependent on fire rating, motor and barrel support - larger sizes may be available on request) |
Max Area | 15m² to 50m² (dependent on fire rating, motor and barrel support - larger sizes may be available on request) |
Guide Width | 65mm (wind guide option available), 75mm, 100mm |
U-Value | N/A |
Finishes |
|
Curtain | Galvanised as standard. Option to powder coat any RAL / BS colour or to choose from a range of plastisol finishes. |
Casing | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|

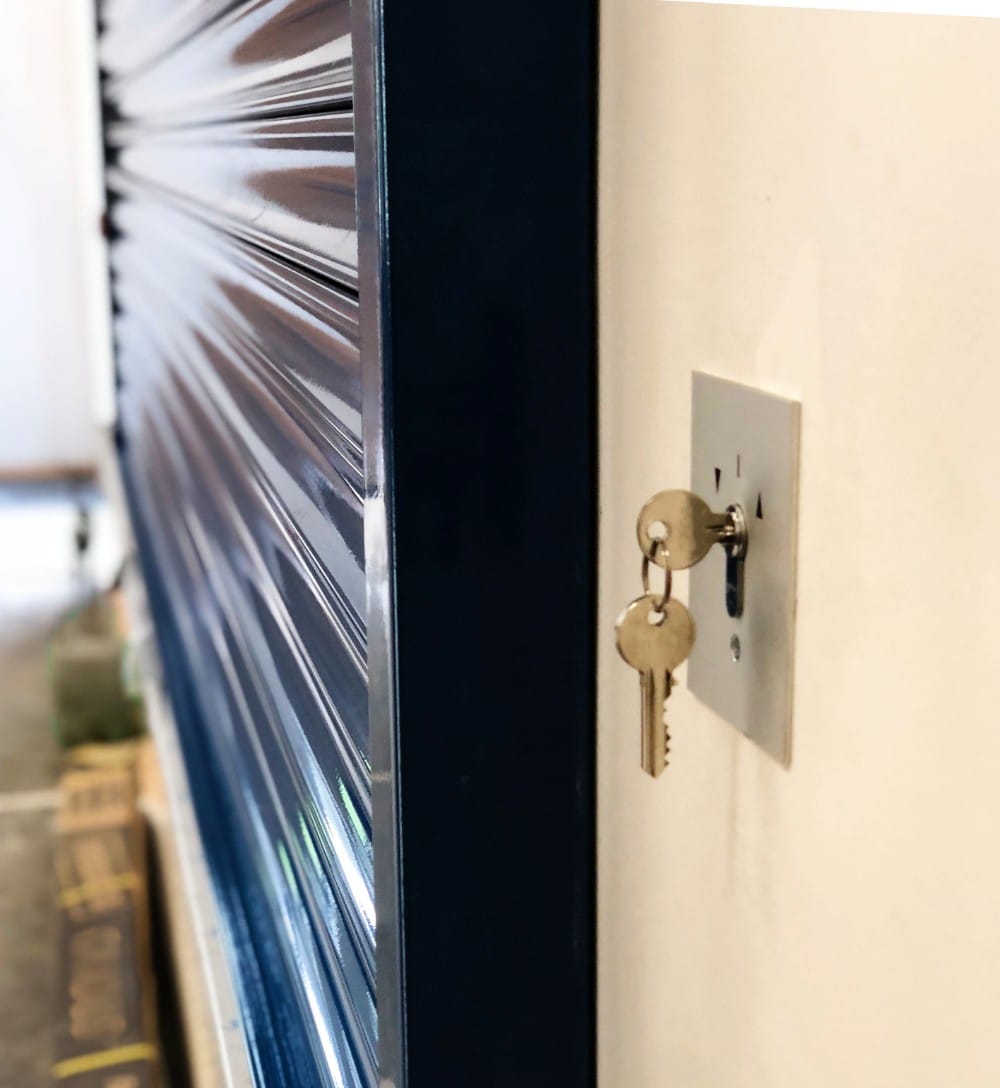

Electric | Tubular Motor = NRG Econom tubular motor with internal rocker or external key switch as standard & safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Inline Motor = Single phase inline chain driven motor (three phase option available) with push button control, chain override, fusible link and solenoid release as standard. |
| All fire shutters can be connected to a fire alarm via an interface panel so they automatically descend in the event of an alarm signal (speak to the Roché office for interface panel options and prices). | |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 2500 | 305 |
| 4000 | 355 |
| 6000 | 400 |

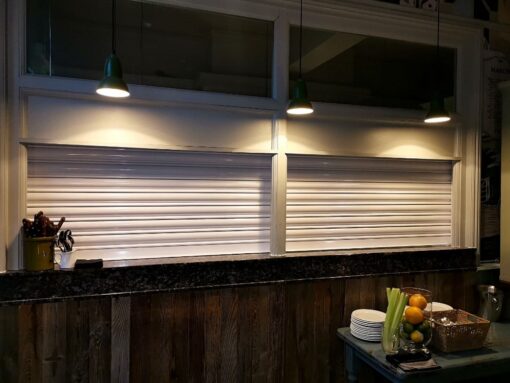

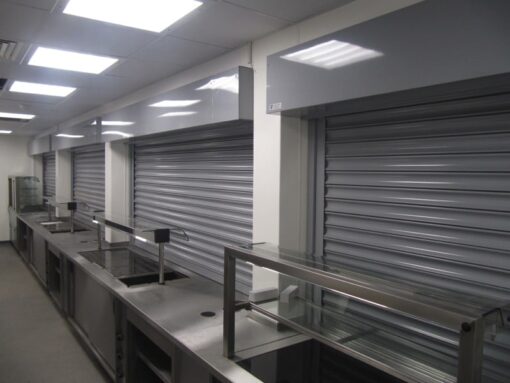

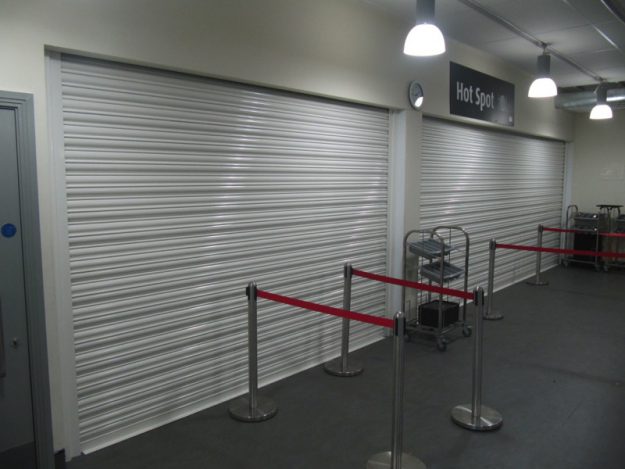

FS60
The FS60 fire shutter contains fire for 1 hour. This rating is a result of external testing by market leading Exova Warringtonfire. All of Roché’s fire shutters can be integrated into a building fire alarm system for automatic response in the event of an emergency. They are manufactured from galvanised steel and can also be powder coated any RAL / BS colour.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
