Overview |
|
Description | Fire-rated steel security shutter. |
Applications | Commercial, industrial, public. |
Security Level | High. Certified for fire resistance for 4 hours, according to Exova Warringtonfire Report Number 312853. |
Fitting | Internal face, external face, reveal fit. |
Components |
|
Slat | Single-skinned curved steel. Thickness of 1.2mm. |
Casing | Galvanised steel casing & end plates as standard. Larger shutters incorporate barrel support frame where required. Reveal fix installations are supplied with a fascia as standard. |
Guides | Galvanised steel. |
Bottom Rail | T' shaped bottom rail. |
Measurements |
|
Slat Face | 76mm |
Weight | 16.7kg/m² |
Max Width | 7000mm to 12000mm (dependent on fire rating, motor and barrel support - larger sizes may be available on request) |
Max Area | 15m² to 50m² (dependent on fire rating, motor and barrel support - larger sizes may be available on request) |
Guide Width | 65mm (wind guide option available), 75mm, 100mm |
U-Value | N/A |
Finishes |
|
Curtain | Galvanised as standard. Option to powder coat any RAL / BS colour or to choose from a range of plastisol finishes. |
Casing | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Tubular Motor = NRG Econom tubular motor with internal rocker or external key switch as standard & safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Inline Motor = Single phase inline chain driven motor (three phase option available) with push button control, chain override, fusible link and solenoid release as standard. |
| All fire shutters can be connected to a fire alarm via an interface panel so they automatically descend in the event of an alarm signal (speak to the Roché office for interface panel options and prices). | |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 2500 | 305 |
| 4000 | 355 |
| 6000 | 400 |
FS240

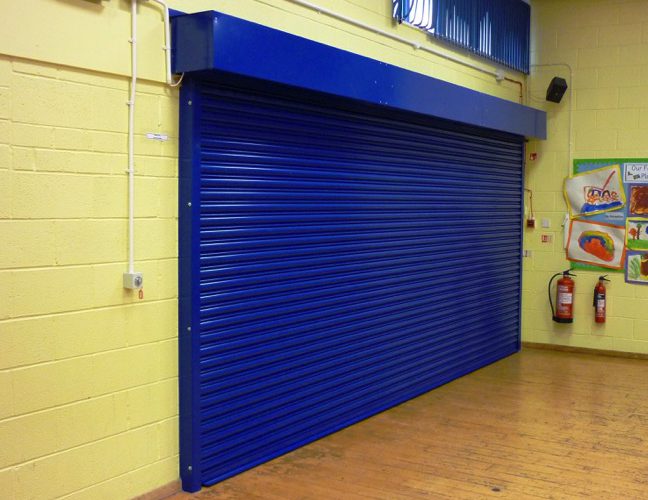

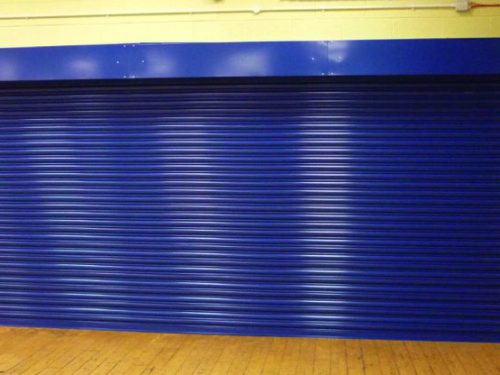

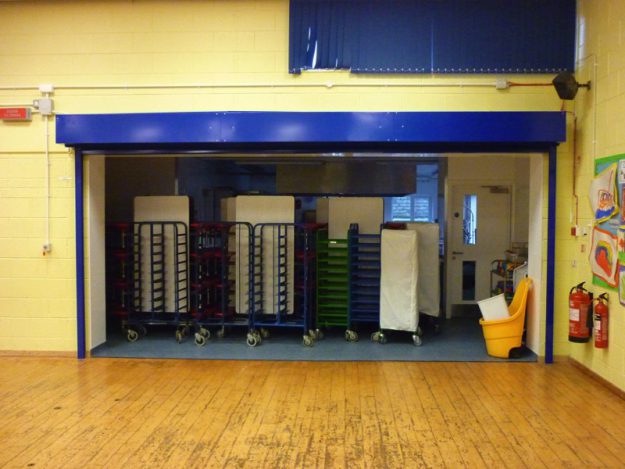

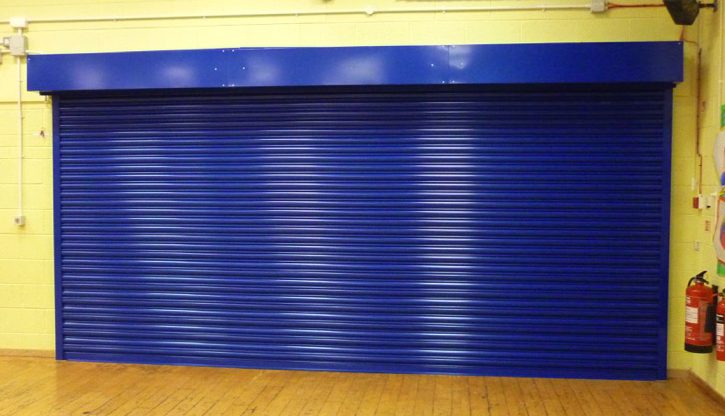

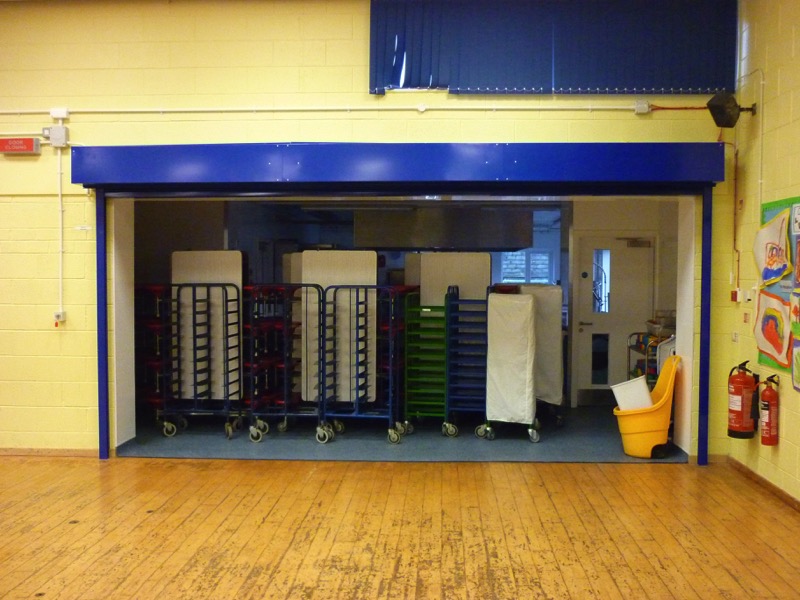

The FS240 has been tested and certified by Exova Warringtonfire to contain fire for up to 4 hours, with barrel support frames incorporated where required for larger sizes. An optional interface panel allows the FS20 to be integrated into a building alarm system for automatic closure in the event of an alarm. It is commonly installed in schools and canteens to help meet fire regulations.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
