Overview |
|
Description | Insurance approved steel security shutter with perforated vision profile. |
Applications | Commercial, industrial. |
Security Level | High. Secured by Design and SR1 rated according to LPCB LPS 1175: Issue 7. |
Fitting | Internal face fit, reveal fit. |
Components |
|
Slat | Single-skinned curved steel with a perforated vision profile. Wall thickness of 1.2mm. |
Casing | Galvanised steel casing & end plates as standard. Optional fascia / custom design casings available on request (surcharge applies). |
Guides | Galvanised steel. |
Bottom Slat | L' or 'T' shaped bottom rail. |
Measurements |
|
Slat Face | 76mm |
Weight | 8.3kg/m², 10.6kg/m², 14.2kg/m² |
Max Width | 7000mm |
Max Area | 18m² (tubular motor), 49m² (outboard motor) |
Guide Width | 65mm wind guide |
U-Value | N/A |
Finishes |
|
Curtain | Galvanised finish as standard. Option to powder coat any RAL / BS colour or to choose from a range of plastisol finishes. |
Casing | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Tubular Motor = NRG Econom tubular motor with internal rocker or external key switch as standard & safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Outboard Motor = GfA Safedrive & Ranger three phase motors with safety brake, chain manual override & TS959 push button control station as standard. Both tubular & outboard motors have numerous control option variants such as group, remote or mobile phone activation. |
Manual | Available on request. Electric operation required for LPCB and Secured by Design certification. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 2250 | 355 |
| 3000 | 400 |
| 4000 | 450 |
| 5000 | 500 |
| 6000 | 550 |

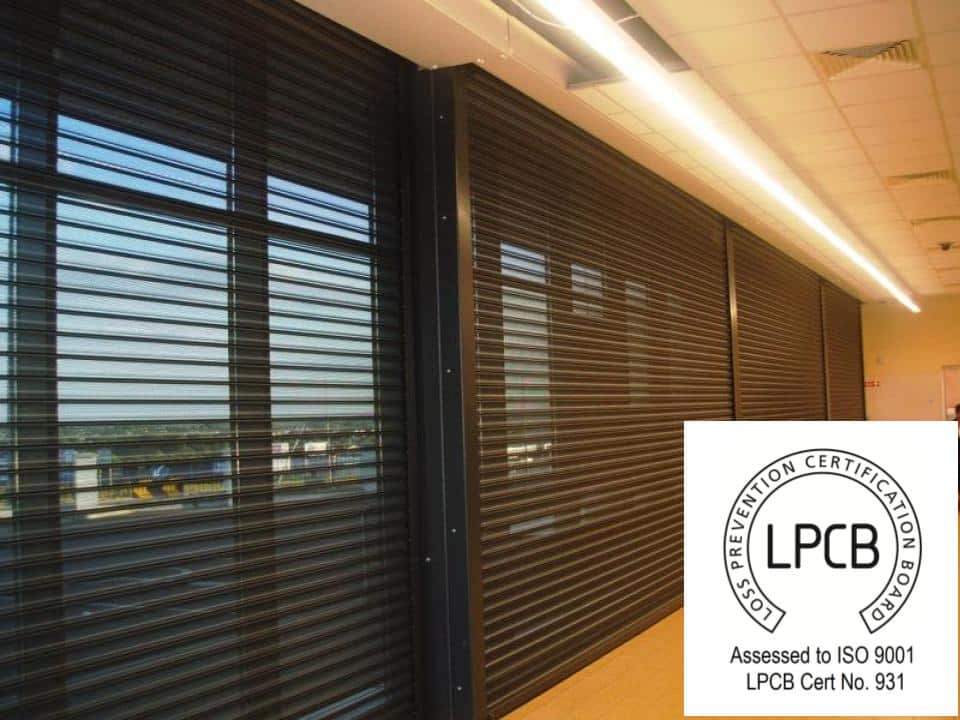

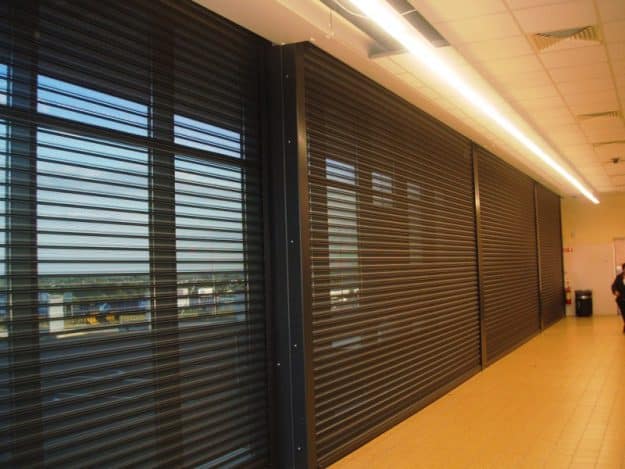

P76 Elite SR1
The P76 Elite provides vision and ventilation without compromising security. It is the only perforated security shutter in our range which has received certification from the Loss Prevention Certification Board (SR1 according to LPS 1175). Small holes provide partial vision and airflow without compromising security levels. It can be powder coated any RAL / BS colour and comes with a choice of control options.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
