Overview |
|
Description | Insulated sectional overhead door. |
Applications | Industrial. |
Fitting | Standard lift, high lift, low headroom or vertical lift. Tracks available for pitched roofs. |
Components |
|
Panels | Double skinned composite construction. Hot dip, zinc-coated structural steel with internal steel bands and a polyester or Plastisol finish. Option to integrate single or double glazed windows, with wide panoramic transparent panels available. |
Guides | Custom made from galvanised steel to suit site conditions. EPDM perimeter seals. |
Head Gear | Galvanised steel shaft with shot-blasted powder coated counterbalance springs. |
Other Options | Integral personnel doors available. |
Measurements |
|
Panel Thickness | 40mm or 80mm |
U-Value | 0.9 W/m² (average for 40mm panels. Better U-values for 80mm panels) |
Finish |
|
Panels | Wide range of standard polyester and Plastisol colours available as standard for external face. White internal face. High levels of scratch, corrosion and UV resistance. |
Operation |
|
Electric | A range of motorised options to choose from. Spring and cable break devices are fitted to the door as standard to comply with CE markings. |
Manual | Various manual operation methods, including optional safety features. Spring and cable break devices are fitted to the door as standard to comply with CE markings. |

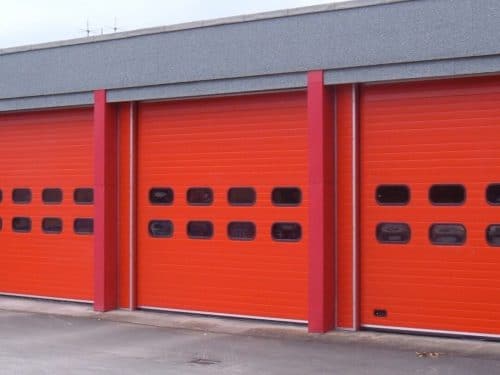

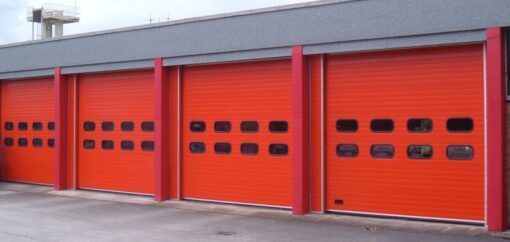

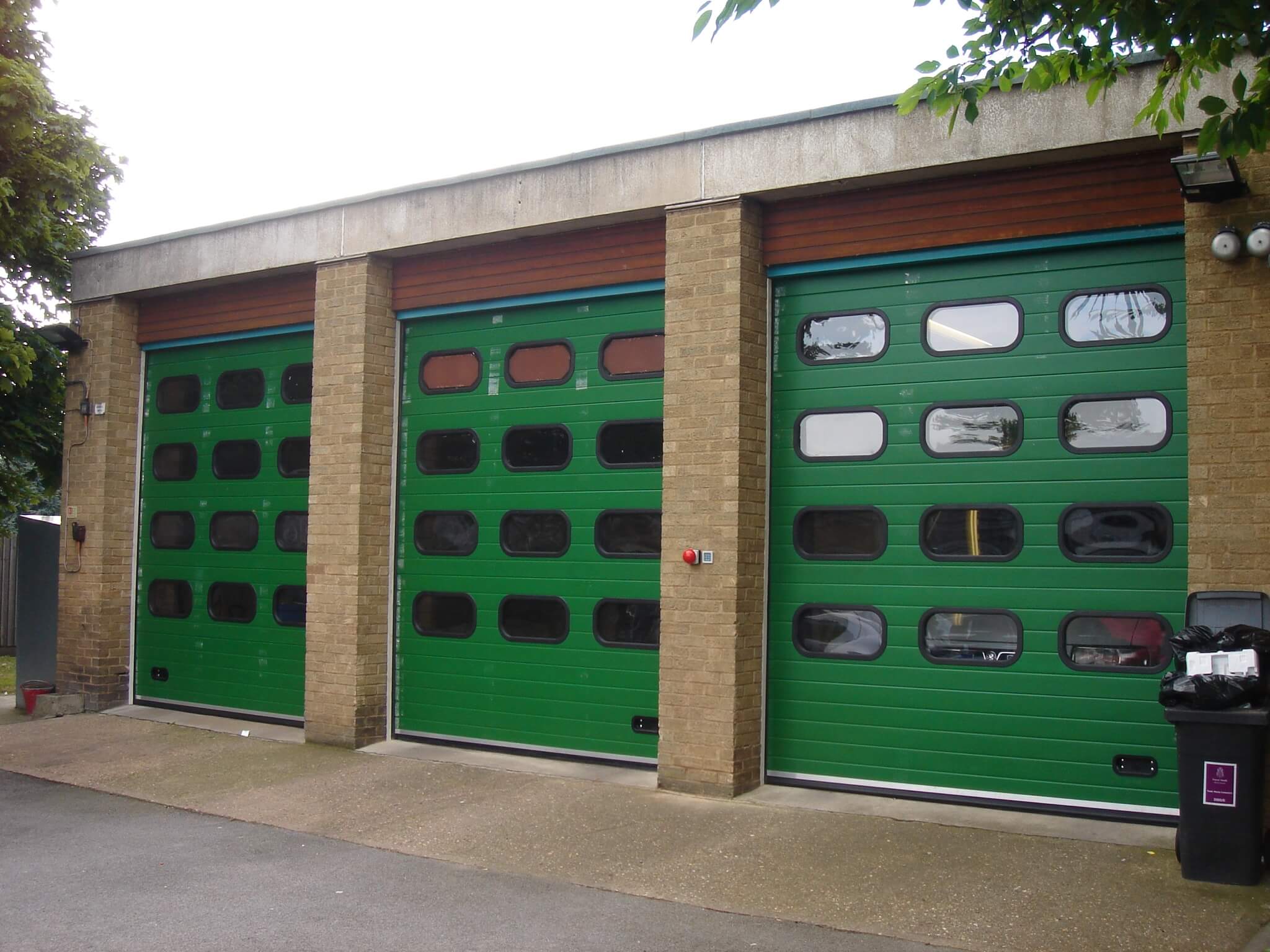

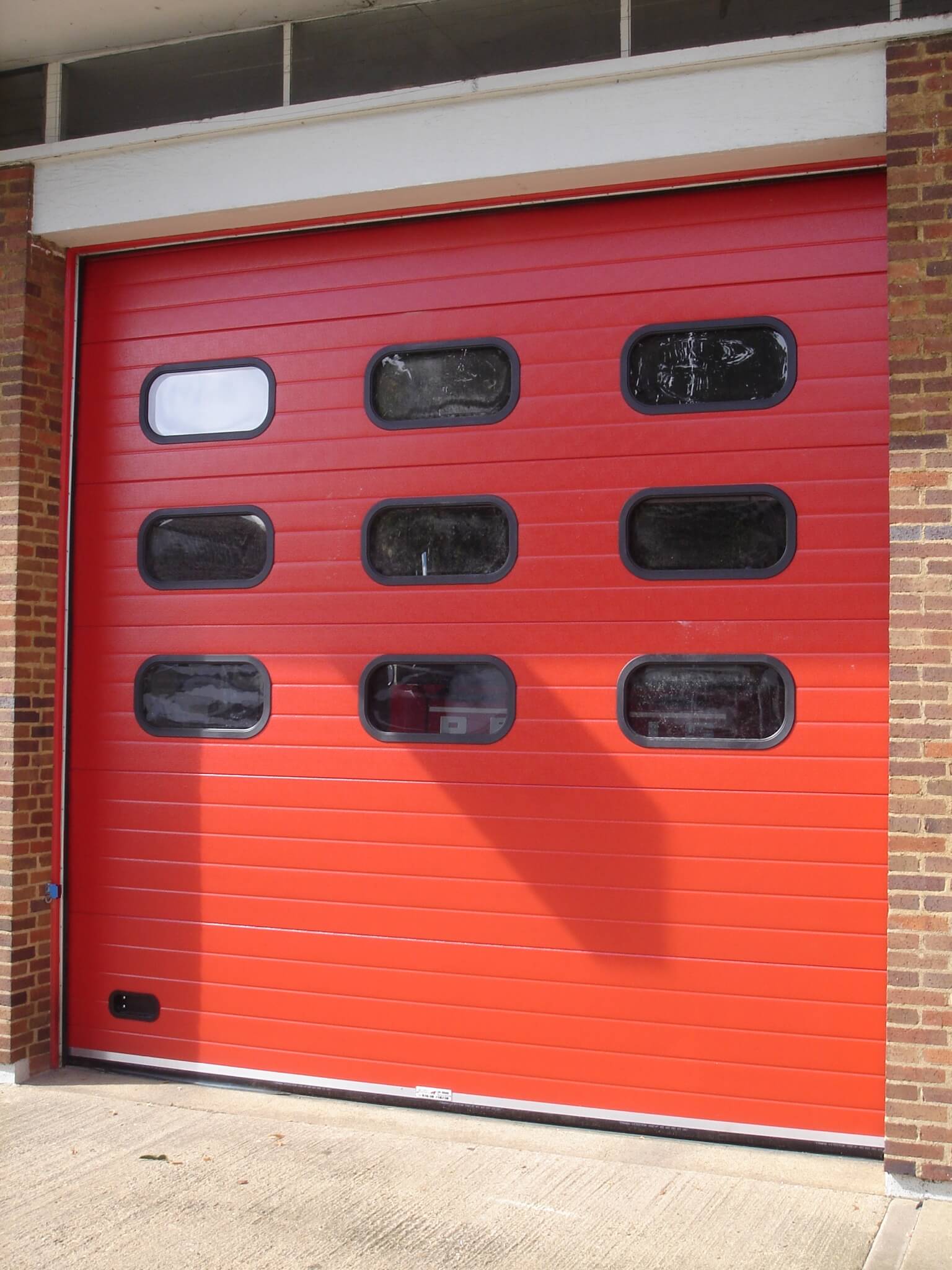

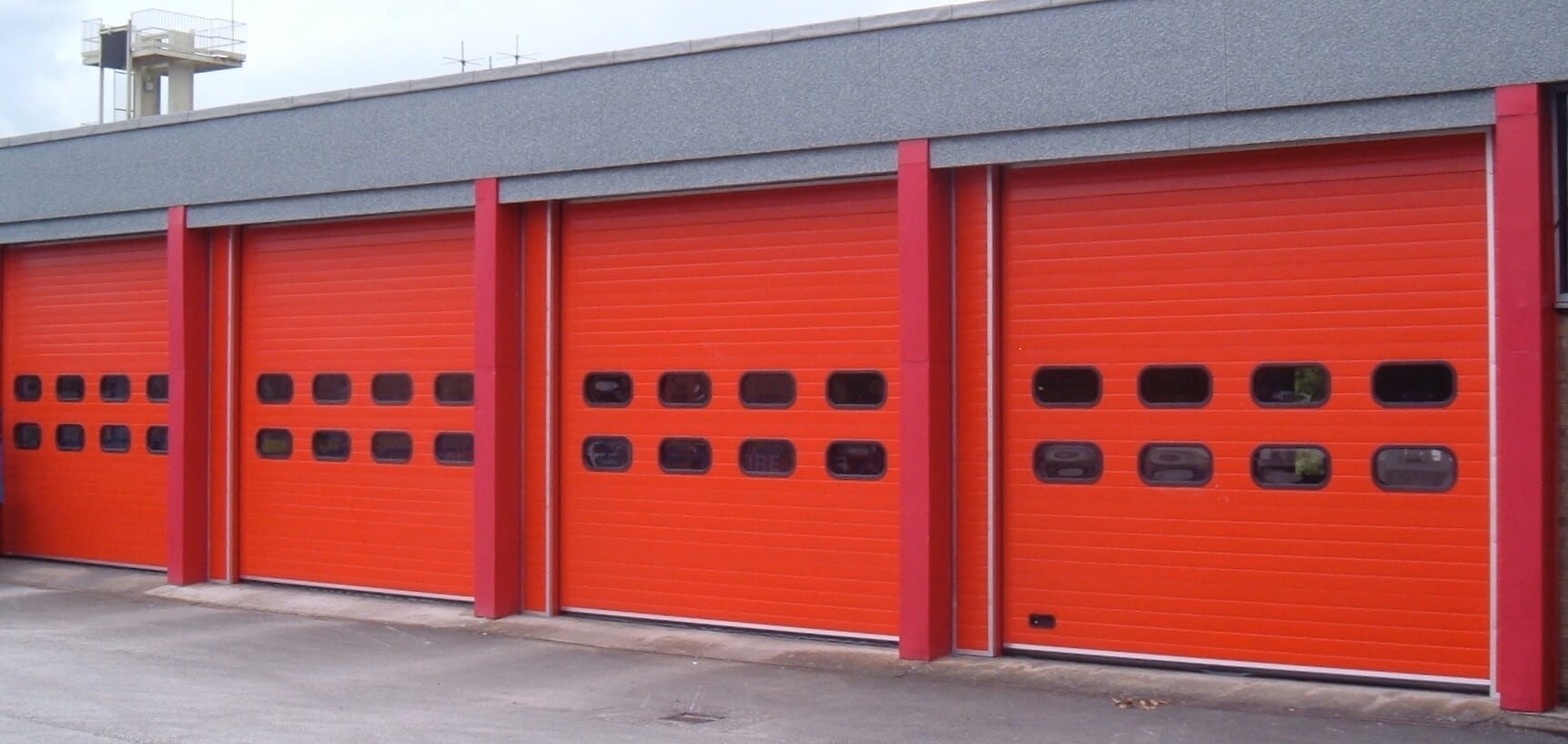

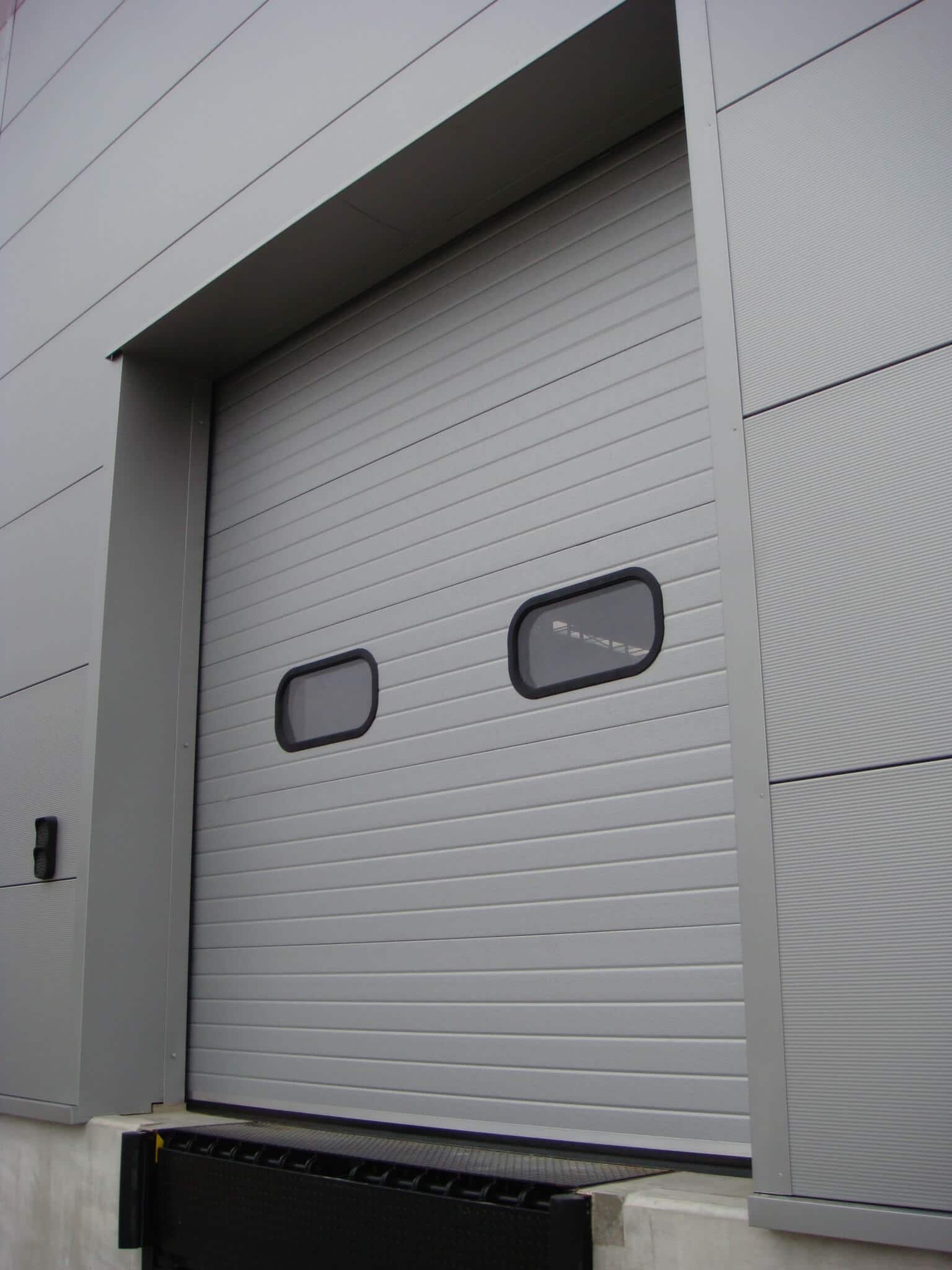

Insufold Sectional Door
Double skinned sectional doors designed for industrial applications. Insulated panels provide excellent U-values and have been tested for wind pressure (Class 3, BS EN 12424 and above), water penetration (Class 3, BS EN 12425), air penetration (Class 2, BS EN 12426), and air leakage (Class 3). Roché’s Insufold sectional doors are highly customisable, with the option to integrate windows or panoramic transparent panels. Both electric and manual operation are available.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
Book a Free Survey
