Overview |
|
Description | Fold up high speed door. |
Applications | Industrial. |
Fitting | Internal face fit. |
Components |
|
Curtain | Polyester fabric coated with coloured PVC. Optional insulation available on request. Two rows of vision panels with rounded corners as standard, more available if required. |
Guides | Self supporting galvanised steel. Stainless steel AISI 304 or 316 available on request. |
Roller | Galvanised steel. |
Measurements |
|
Curtain Weight | 900g/m² (1300g/m² with insulation) |
Frame Thickness | 2mm |
Max Width | 15000mm (special 30000mm version available) |
Max Area | 180m² (450m² version available) |
Operating Temperature | 0ºC to 70ºC |
Opening Speed | 1.2m/s |
Wind Load | Class 2 EN 12424. Class 3 or 4 available. |
Finish |
|
Curtain | Wide range of coloured PVC options to choose from. Silk screen and digital printing available on request. |
Operation |
|
Electric | Three phase motor and push button controls as standard. Remote control, radar and induction loop cards available. |

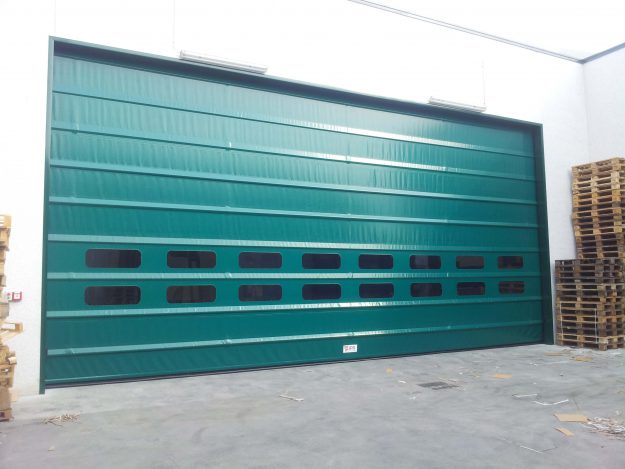

Rapid Fold High Speed Door
A fold up high speed door providing high performance for industrial applications. Commonly installed on large openings within the manufacturing, food processing and chemical industries, they reduce drafts, heat loss, noise pollution and dust. A three phase motor provides rapid opening speeds of up to 1.2m/s, with appropriate safety systems including a wireless bottom safety edge. Insulation is available, and vision windows and a wide choice of curtain colours are provided as standard.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
