Overview |
|
Description | High security insurance-approved extruded aluminium security shutter. |
Applications | Commercial, shop front, offices. |

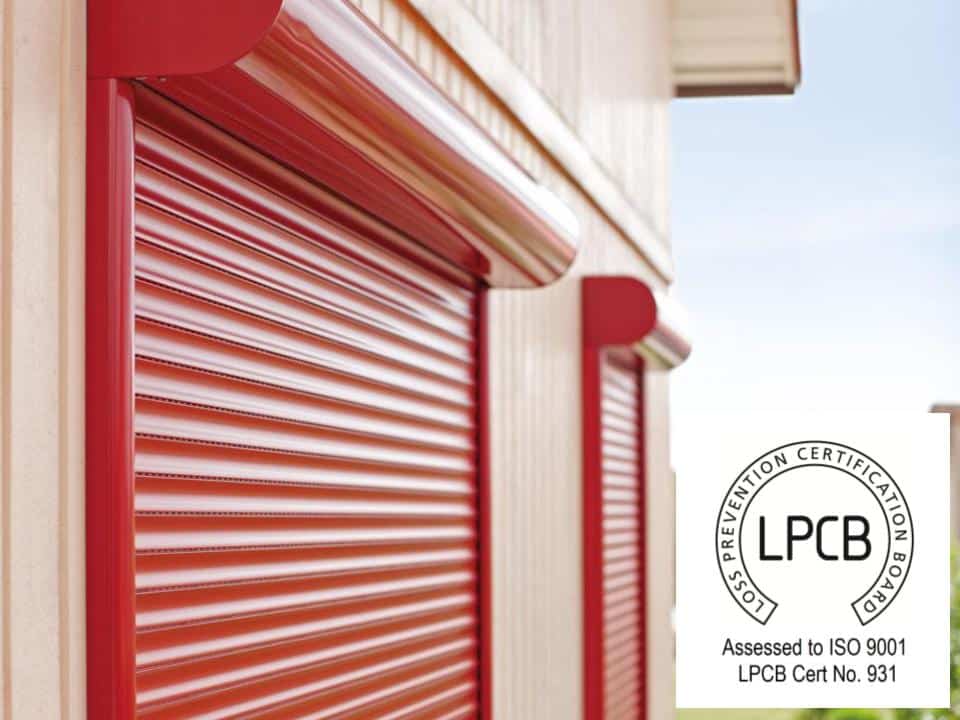

Security Level | High. Secured by Design and SR1 rated according to LPCB LPS 1175: Issue 7. |
Fitting | Internal face fit, external face fit. Bullet locks are fitted as standard when the Elite is externally fitted. |
Components |
|

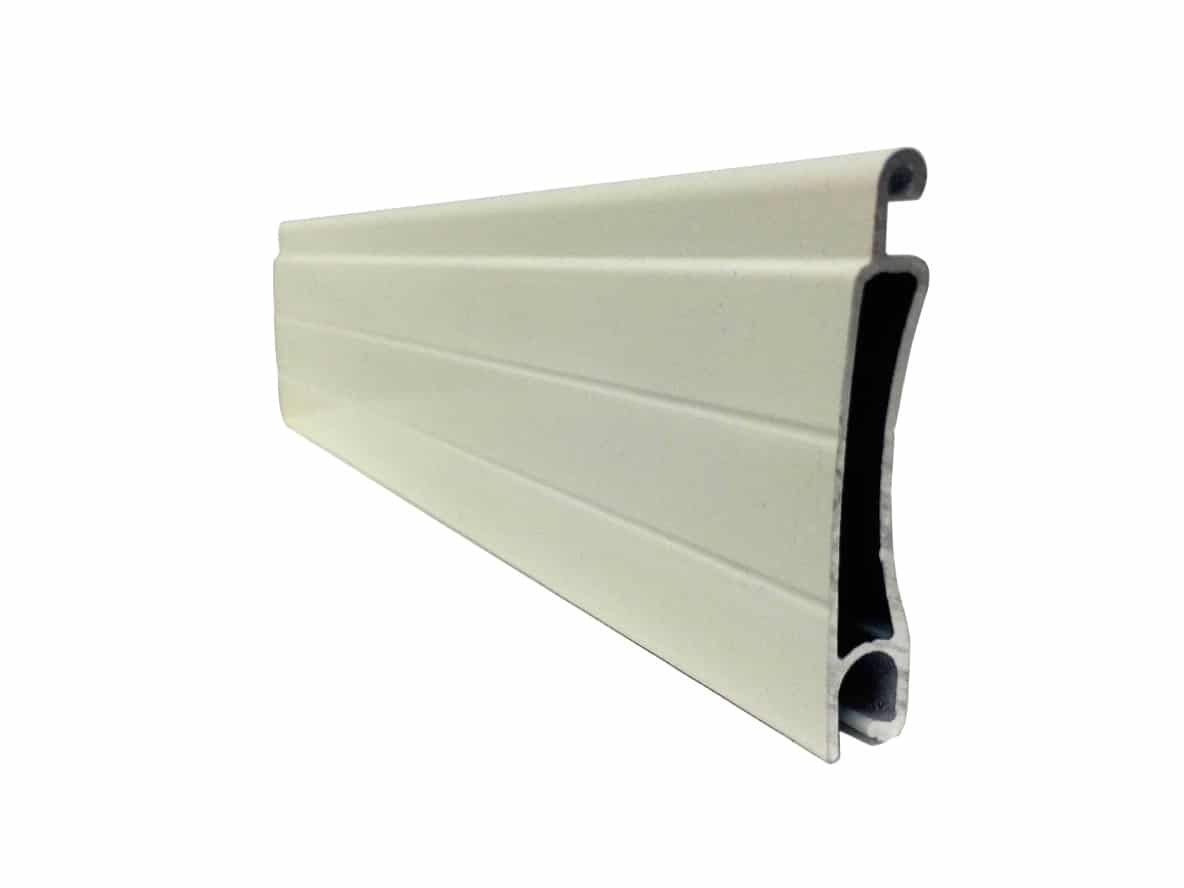

Slat | Double-skinned extruded aluminium. Punched (V37) and perforated (P37) profiles can be combined to offer partial or full vision as required. |
Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. The Elite shutter has an extruded aluminium box when fitted externally. |
Guides | Extruded aluminium with brush inserts. |
Bottom Slat | Reinforced extruded aluminium with rubber weather seal. |
Measurements |
|
Slat Face | 37.5mm |
Weight | 8.1kg/m² |
Max Width | 3000mm |
Max Area | 9m² |
Guide Width | 60HD |
U-Value | N/A |
Finishes |
|
Curtain | White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Box | White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy tubular motor & internal rocker or external key switch as standard. Safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group, remote or mobile phone activation. |
Manual | Available on request. Electric operation required for LPCB and Secured by Design certification. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1050 | 1535 |
| 1820 | 180 |
| 2795 | 205 |
| 3550 | 250 |
| 4700 | 300 |

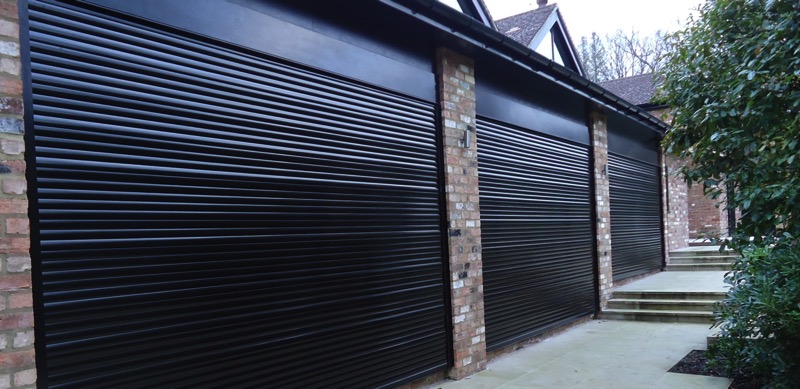

E37 Elite SR1
The E37 is made from an strong extruded double skinned aluminium slat which can be powder coated any RAL colour. With a narrow 37mm slat it is capable of rolling tightly with a 2m high shutter capable of rolling into a 180mm box. It is widely used for domestic and light commercial applications for securing windows and doors up to 4m wide. It is very popular with schools, offices and modular building companies. The E37 comes with numerous control options including manual, key switch or remote control, including group control options.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
