Overview |
|

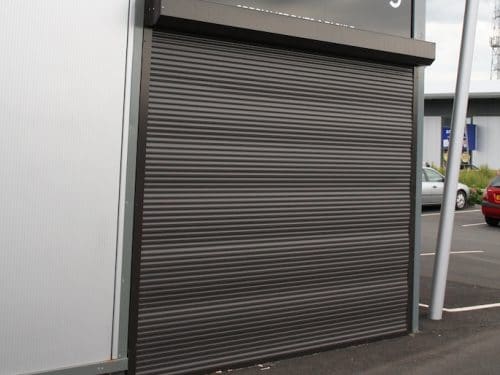

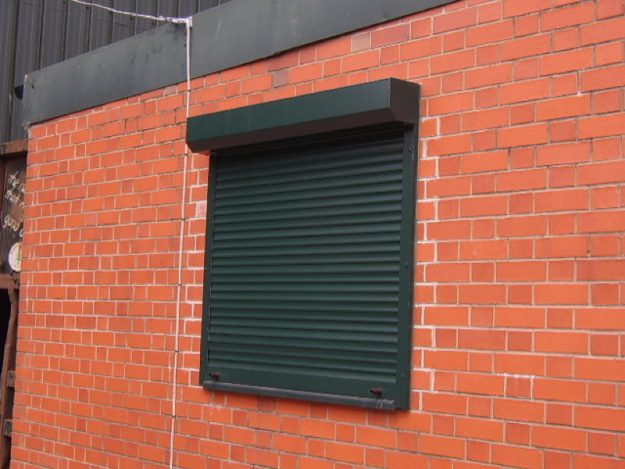

Description | Extruded aluminium security shutter. |

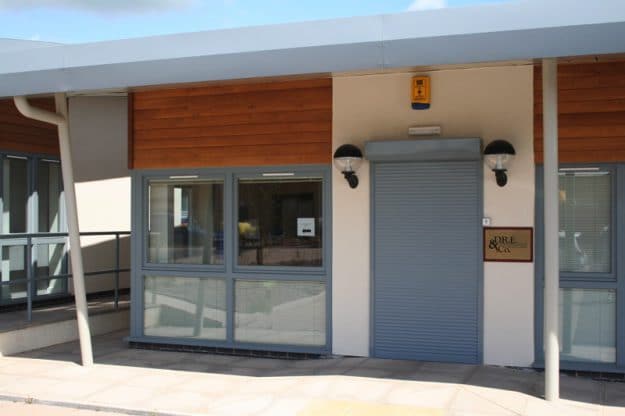

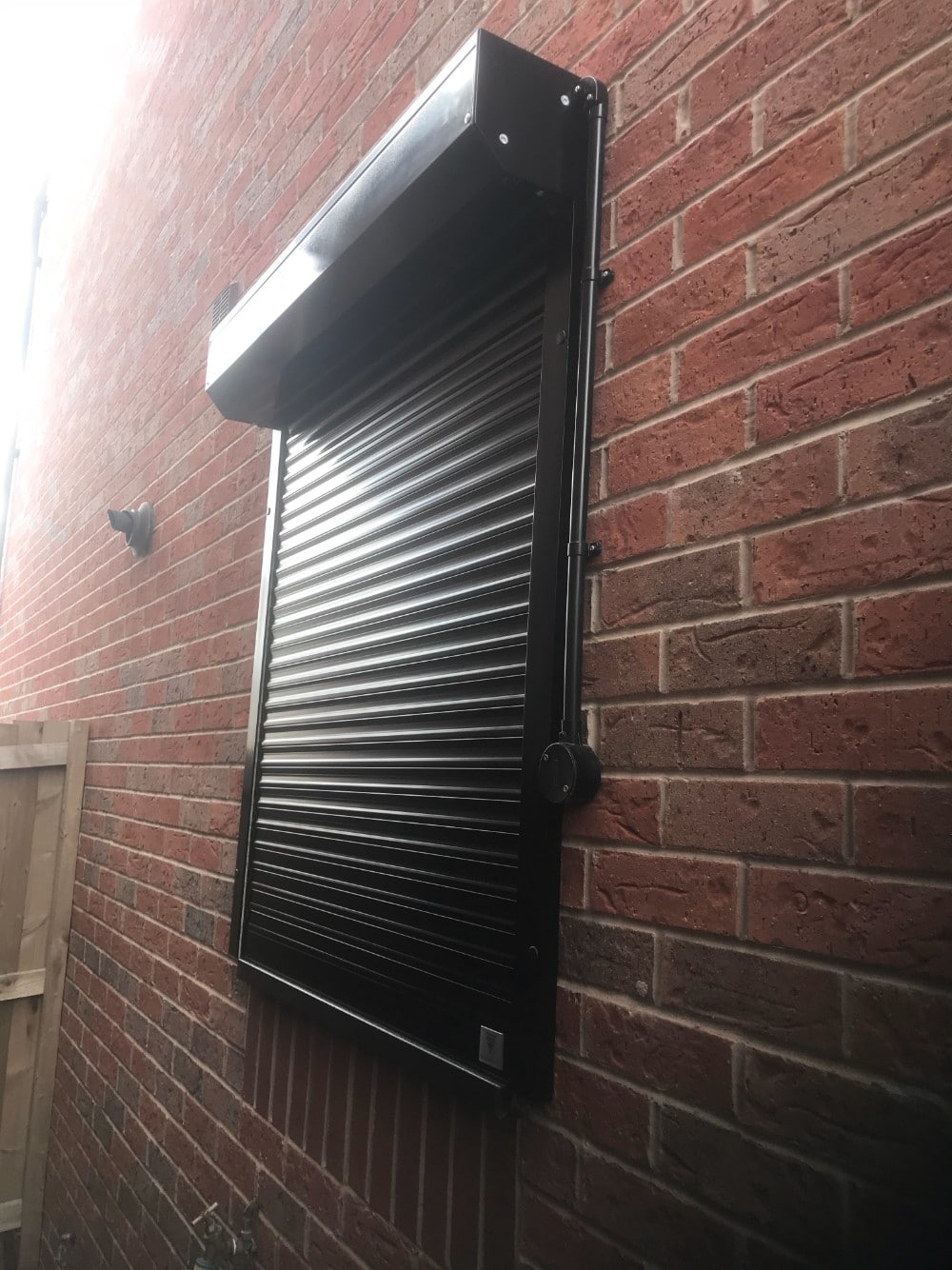

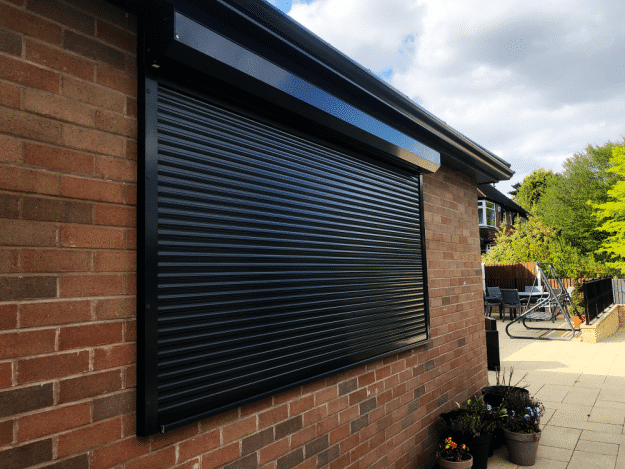

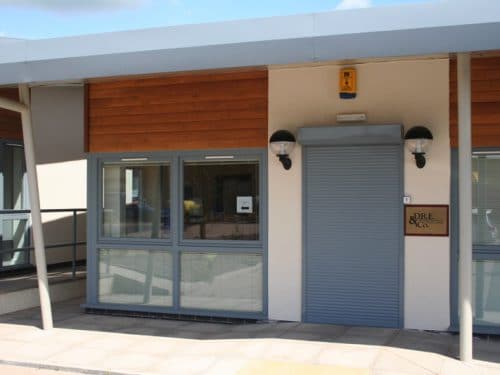

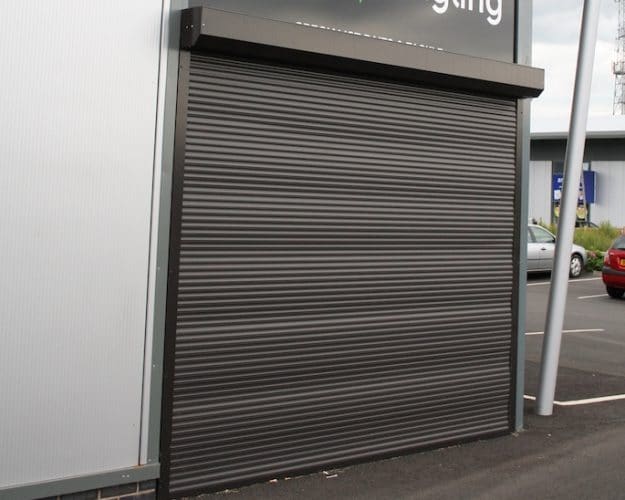

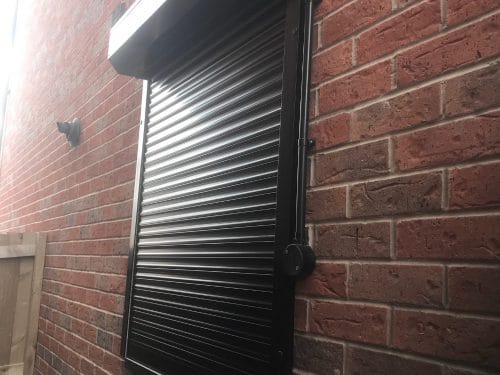

Applications | Domestic, commercial, shop front, offices. |
Security Level | High. |

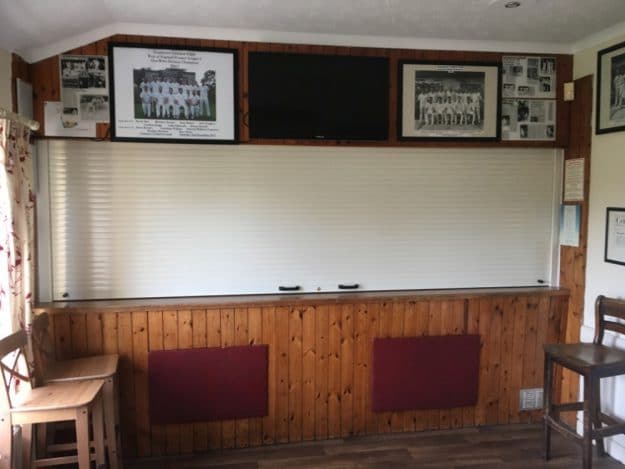

Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|

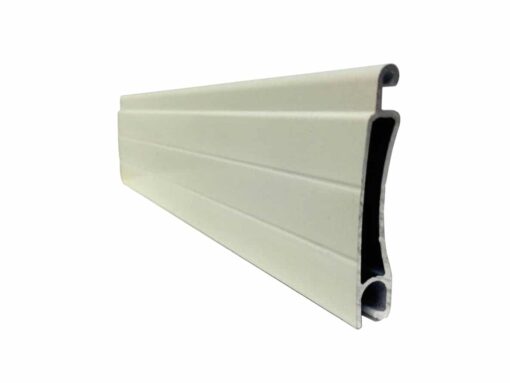

Slat | Double-skinned extruded aluminium. Punched (V37) and perforated (P37) profiles can be combined to offer partial or full vision as required. |
Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. Circular box available in 165mm and 205mm sizes (surcharge applies). |
Guides | Extruded aluminium with brush inserts. |
Bottom Slat | Extruded aluminium with rubber weather seal. |
Measurements |
|
Slat Face | 37.5mm |
Weight | 7.9kg/m² |
Max Width | 4000mm |
Max Area | 12m² |
Guide Width | 45mm, 53mm, 55mm, 60HD |
U-Value | N/A |
Finishes |
|
Curtain | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Box | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy tubular motor & internal rocker or external key switch as standard. Safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group, remote or mobile phone activation. |
Manual | Cord Belt - A swivel winder coils the belt within a compact box. Spring & Lock - A counter-balanced spring assembly with a key-lock bottom slat and handles. Rod & Crank - A geared rod and crank handle winds the shutter. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1050 | 150 |
| 1820 | 180 |
| 2795 | 205 |
| 3550 | 250 |
| 4700 | 300 |
