Overview |
|
Description | Insulated aluminium security shutter. |

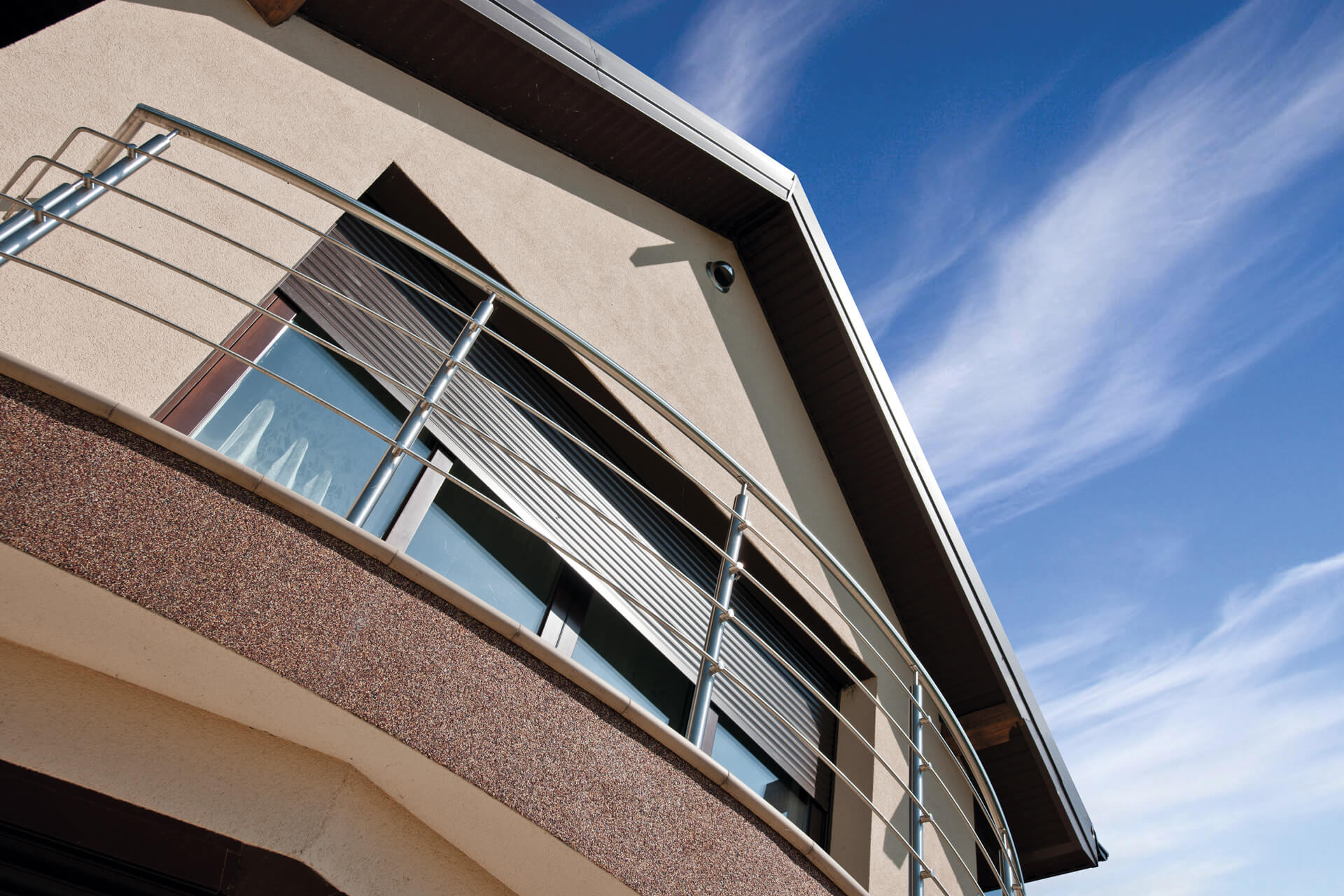

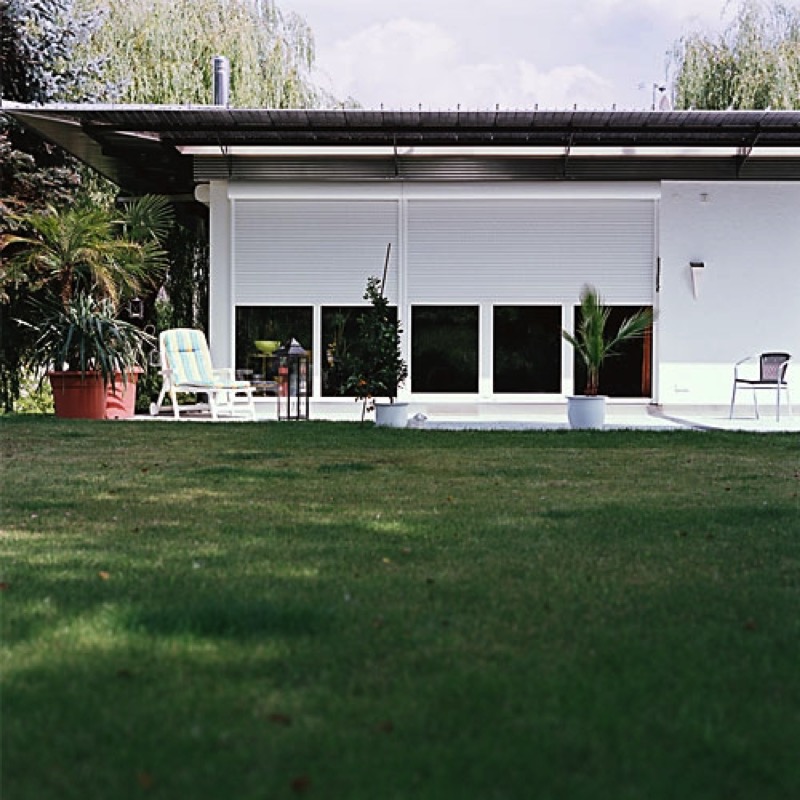

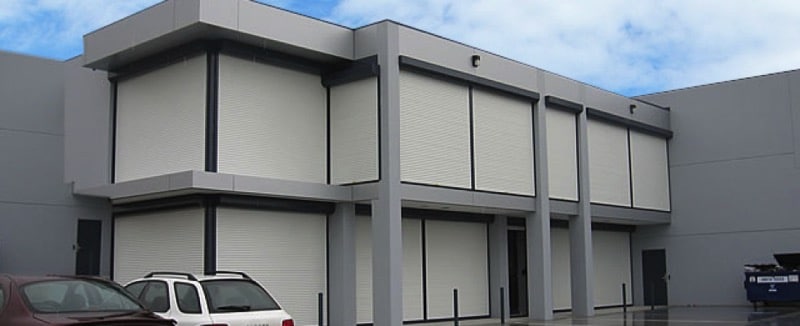

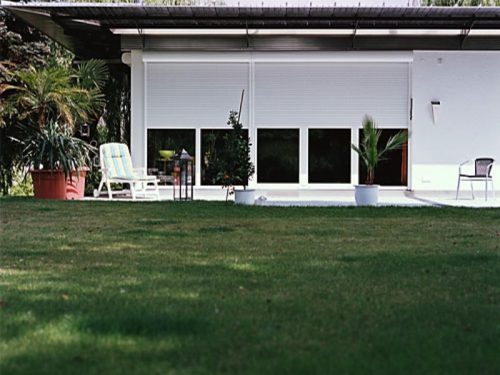

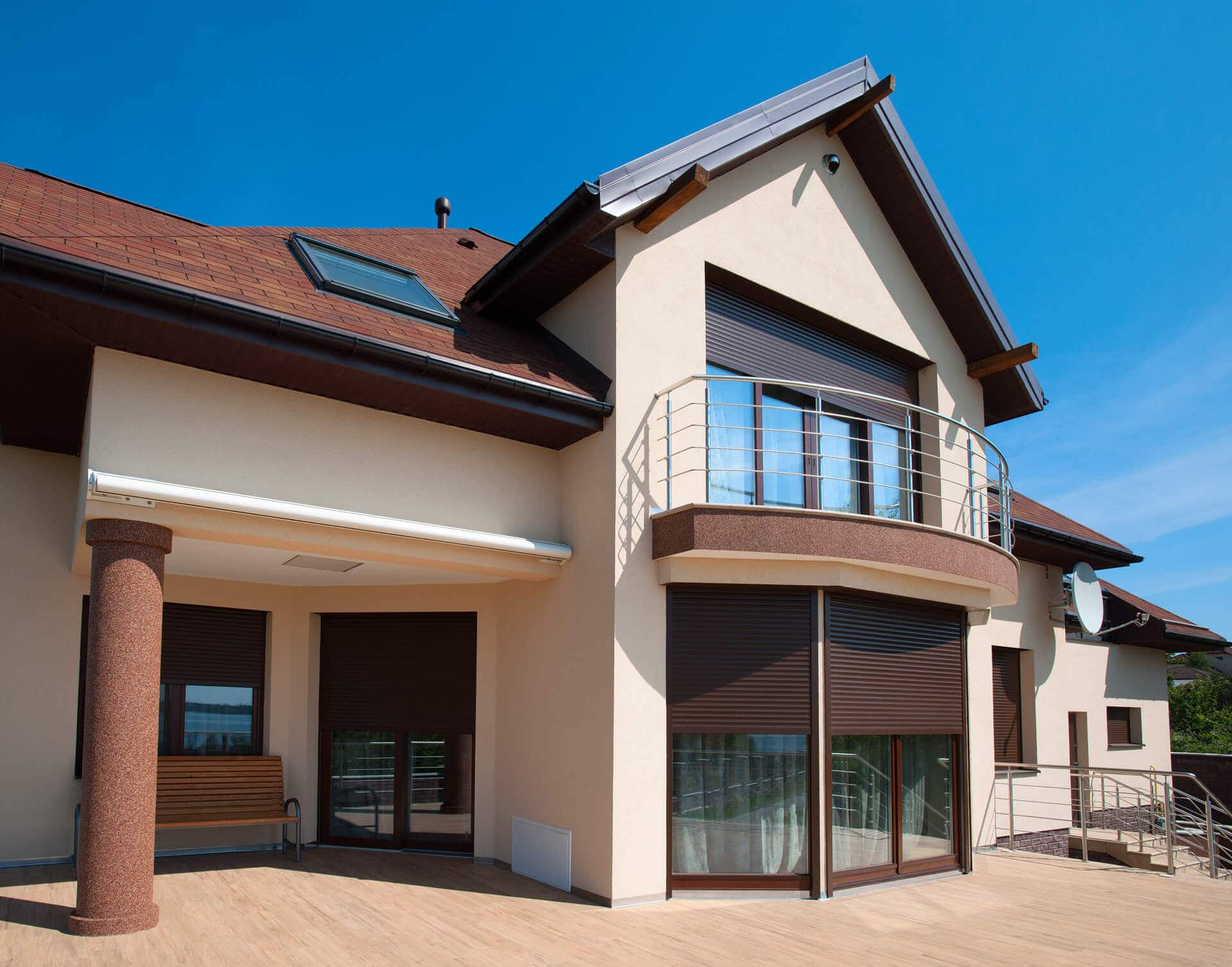

Applications | Domestic, commercial, offices. |
Security Level | Medium. |

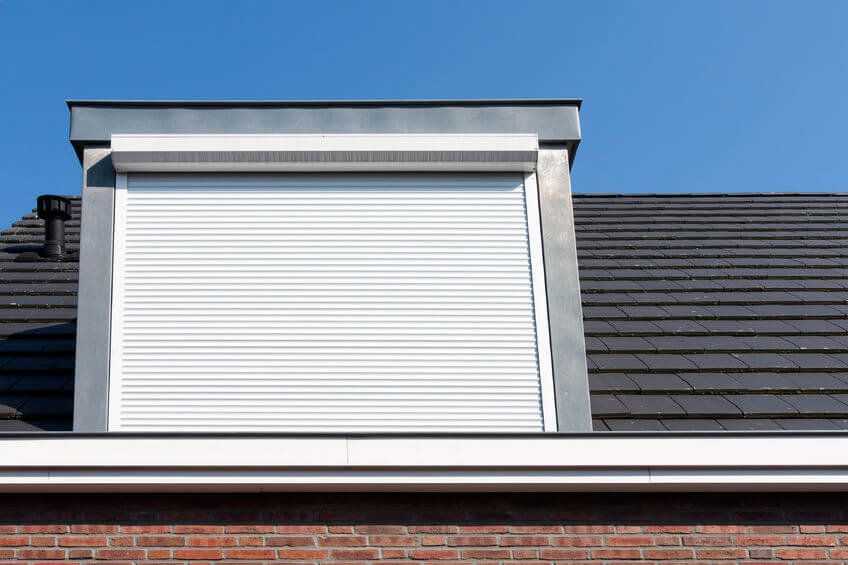

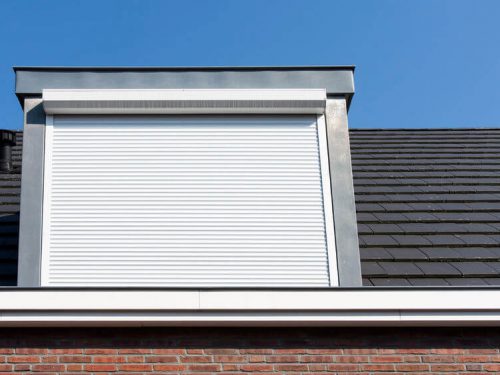

Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|

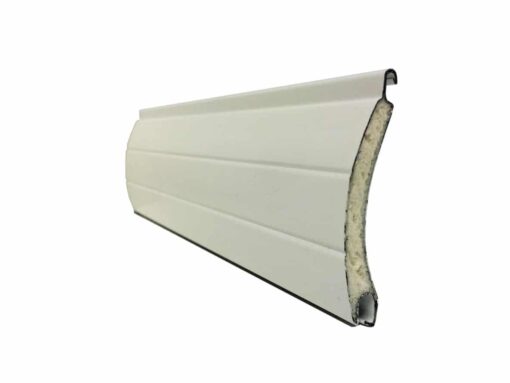

Slat | Double-skinned polyester powder-coated aluminium with polyurethane foam insulating core. |

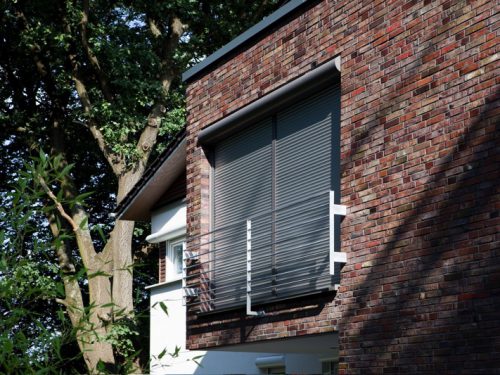

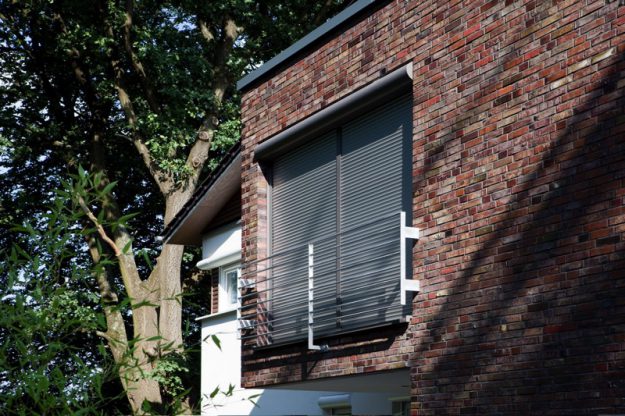

Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. Circular box available in 165mm and 205mm sizes (surcharge applies). |
Guides | Extruded aluminium with brush inserts. |
Bottom Slat | Extruded aluminium with rubber weather seal. |
Measurements |
|
Slat Face | 55mm |
Weight | 4kg/m² |
Max Width | 3500mm |
Max Area | 10m² |
Guide Width | 66mm |
U-Value | 2.9W/m²K |
Finishes |
|
Curtain | White, cream white, ivory, beige, silver, grey, blue, red, fir green, moss green, velvet brown, brown, anthracite, black, painted golden oak or painted rosewood as standard. Option for laminate wood effect (surcharge applies). |
Box | White or brown as standard, option to powder coat any RAL / BS colour (surcharge applies). |
Guides | White or brown as standard, option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy tubular motor & internal rocker or external key switch as standard. Safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group, remote or mobile phone activation. |
Manual | Cord Belt - A swivel winder coils the belt within a compact box. Spring & Lock - A counter-balanced spring assembly with a key-lock bottom slat and handles. Rod & Crank - A geared rod and crank handle winds the shutter. the belt within a compact box. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1235 | 165 |
| 1520 | 180 |
| 2195 | 205 |
| 3200 | 250 |
| 3500 | 300 |
T55

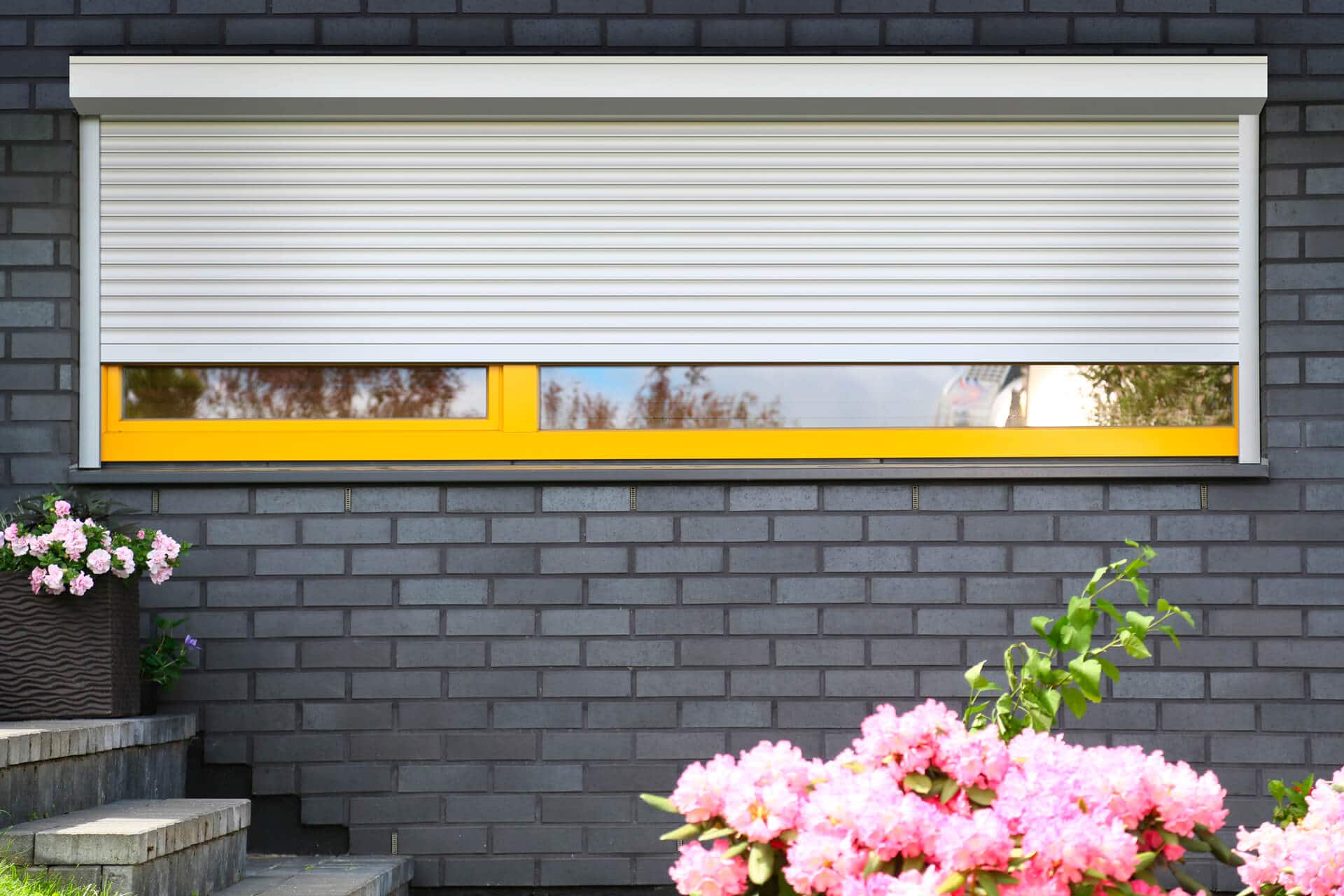

The T55 is an aluminium insulated roller shutter which is suitable for small medium security openings. Its 55mm slat rolls tightly into a compact box measuring between 165mm and 300mm. Both electric and manual operation are available, with a choice of control options. The large choice of standard colour options includes something for every property, while the option for a circular housing can further improve aesthetics.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
