Overview |
|
Description | Compact insulated roller garage door. |
Applications | Domestic and commercial garages where headspace is limited. |
Security Level | Medium to high. |
Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|
Slat | Double-skinned polyester powder-coated aluminium with polyurethane foam insulating core. |
Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. |
Guides | Extruded aluminium guide channels with brush inserts. |
Bottom Slat | Extruded aluminium bottom slat with rubber weather seal. |
Measurements |
|
Slat Face | 55mm |
Weight | 4kg/m² |
Max Width | 3000mm |
Max Area | 9m² |
Guide Width | 66mm |
U-Value | 2.9W/m²K |
Finishes |
|
Curtain | White, cream white, ivory, beige, silver, grey, blue, red, fir green, moss green, velvet brown, brown, anthracite, black, painted golden oak or painted rosewood as standard. Option for laminate wood effect (surcharge applies). |
Box | To match any standard slat colour, or traditional white or brown. Brown for wood effect doors. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | To match any standard slat colour, or traditional white or brown. Brown for wood effect doors. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy or Elero motor with manual override facility and crank handle. Safety brake to comply with legislation. Somfy or Teleco remote control panel with safety sensor, courtesy light and two key fobs, with or without integrated alarm. |
Manual | Manual operation is available but not common for the Compact door as operation may prove problematic for larger sizes. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
2195 | 205 |
2650 | 250 |
Standard colours
White
Anthracite
Black
Goosewing Grey
Silver
Red
Brown
Irish Oak
Golden Oak
Cream
Light Ivory
Beige
Fir Green
Blue
Rosewood
Option to powder coat any RAL / BS colour (surcharge applies). view our stocked RAL colours

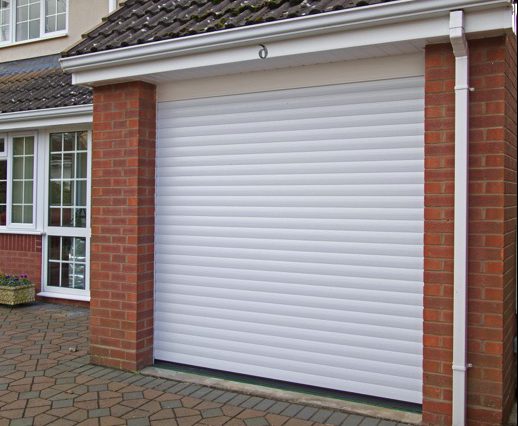

Compact Roller Garage Door
The Compact roller garage door has been developed as a solution for spaces with low headroom, with a narrow 55mm slat and smaller box. This makes it suitable for openings up to 16m² and 3m wide. The slats are insulated for improved U-values, and features include a safety edge sensor to detect obstructions and react safely, and security details such as a built-in anti-lift locking system. The Compact comes with a Somfy motor, remote control operation and a wide range of colours and wood effects as standard.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
