Overview |
|
Description | Insulated aluminium security shutter. |
Applications | Domestic, commercial, shop front, offices. |
Security Level | High. |
Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|

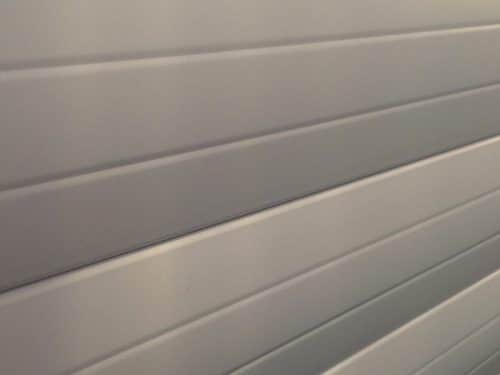

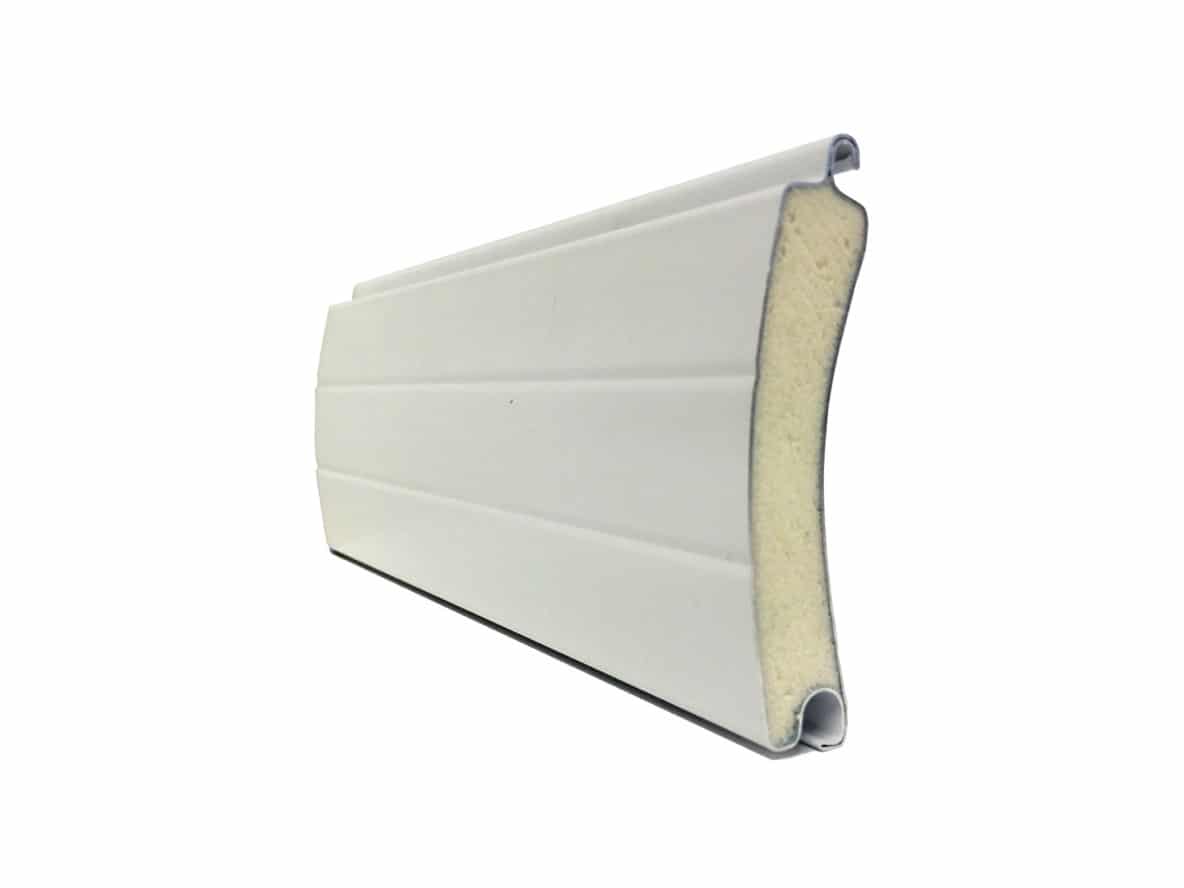

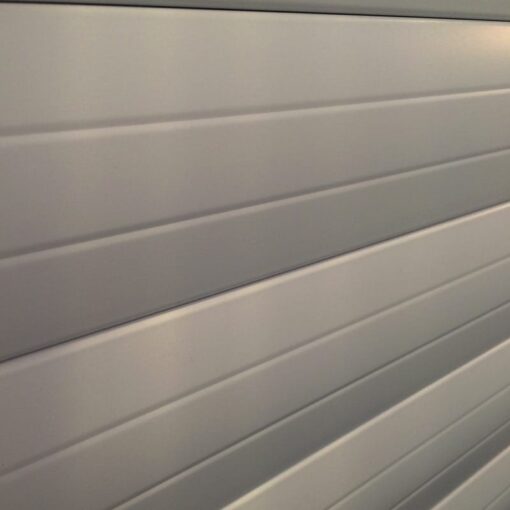

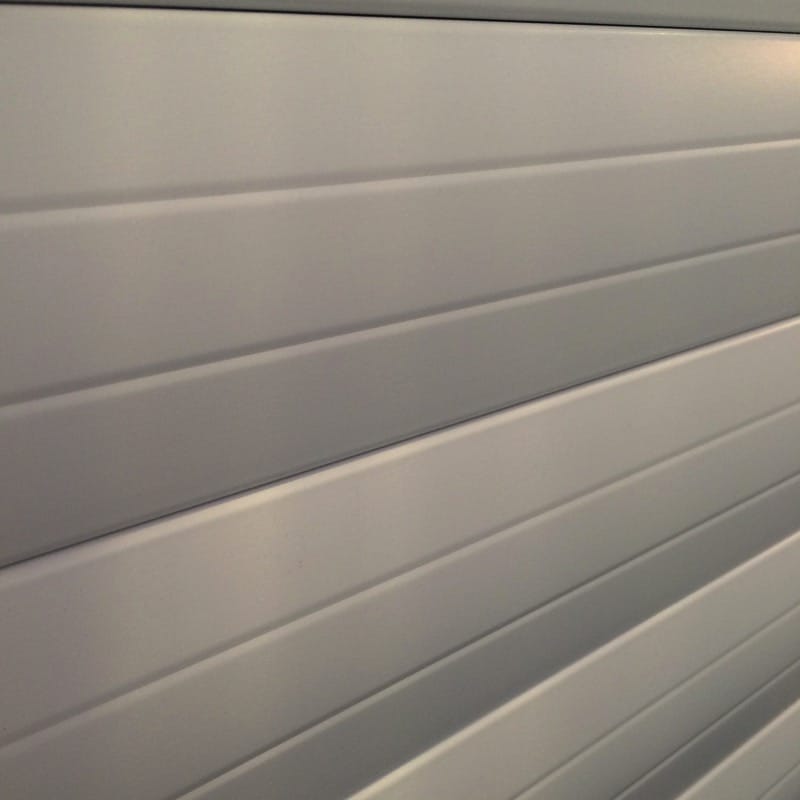

Slat | Double-skinned aluminium with polyurethane foam insulating core. Hard foam variant available for enhanced performance (surcharge applies). Punched (V77) and perforated (P77) profiles can be combined to offer partial or full vision as required. |
Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. |
Guides | Extruded aluminium with brush inserts. |
Bottom Slat | Extruded aluminium with rubber weather seal. |
Measurements |
|
Slat Face | 77mm |
Weight | 5.5kg/m² |
Max Width | 5500mm |
Max Area | 16m² |
Guide Width | 70mm, 90mm, 150mm |
U-Value | 1.5W/m²K |
Finishes |
|
Curtain | White, cream white, ivory, beige, silver, grey, duck egg blue, blue, red, chartwell green, sage green, fir green, moss green, velvet brown, brown, anthracite, black, painted golden oak or painted rosewood as standard. Option to powder coat any RAL / BS colour or laminate wood effect (surcharge applies). |
Box | White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy tubular motor & internal rocker or external key switch as standard. Safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group, remote or mobile phone activation. |
Manual | Manual operation is available but not common for the T77 as the shutter tends to be used to cover larger openings |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1750 | 250 |
| 2700 | 300 |
| 4640 | 360 |
T77

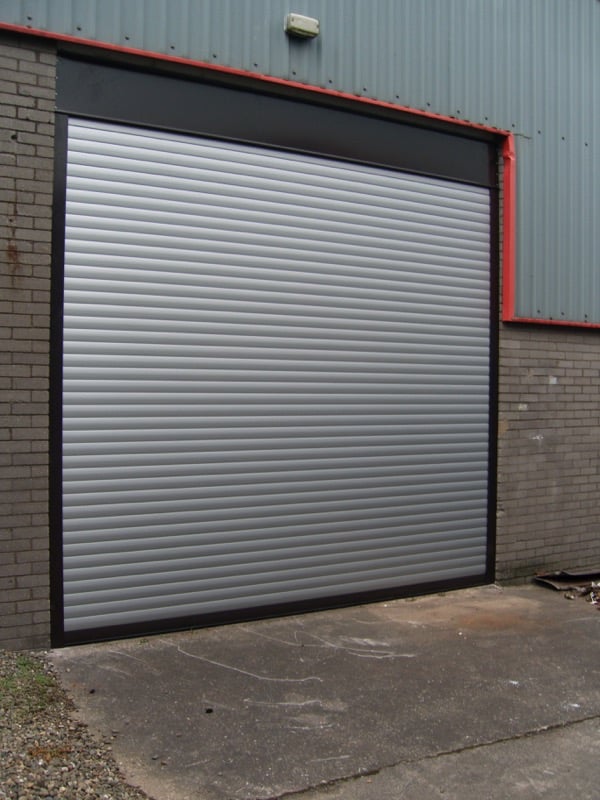

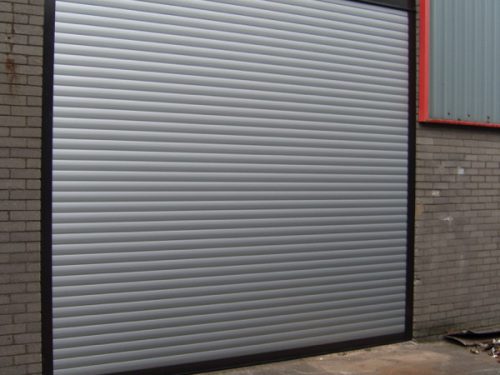

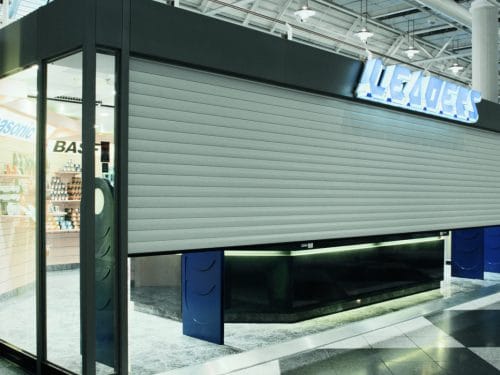

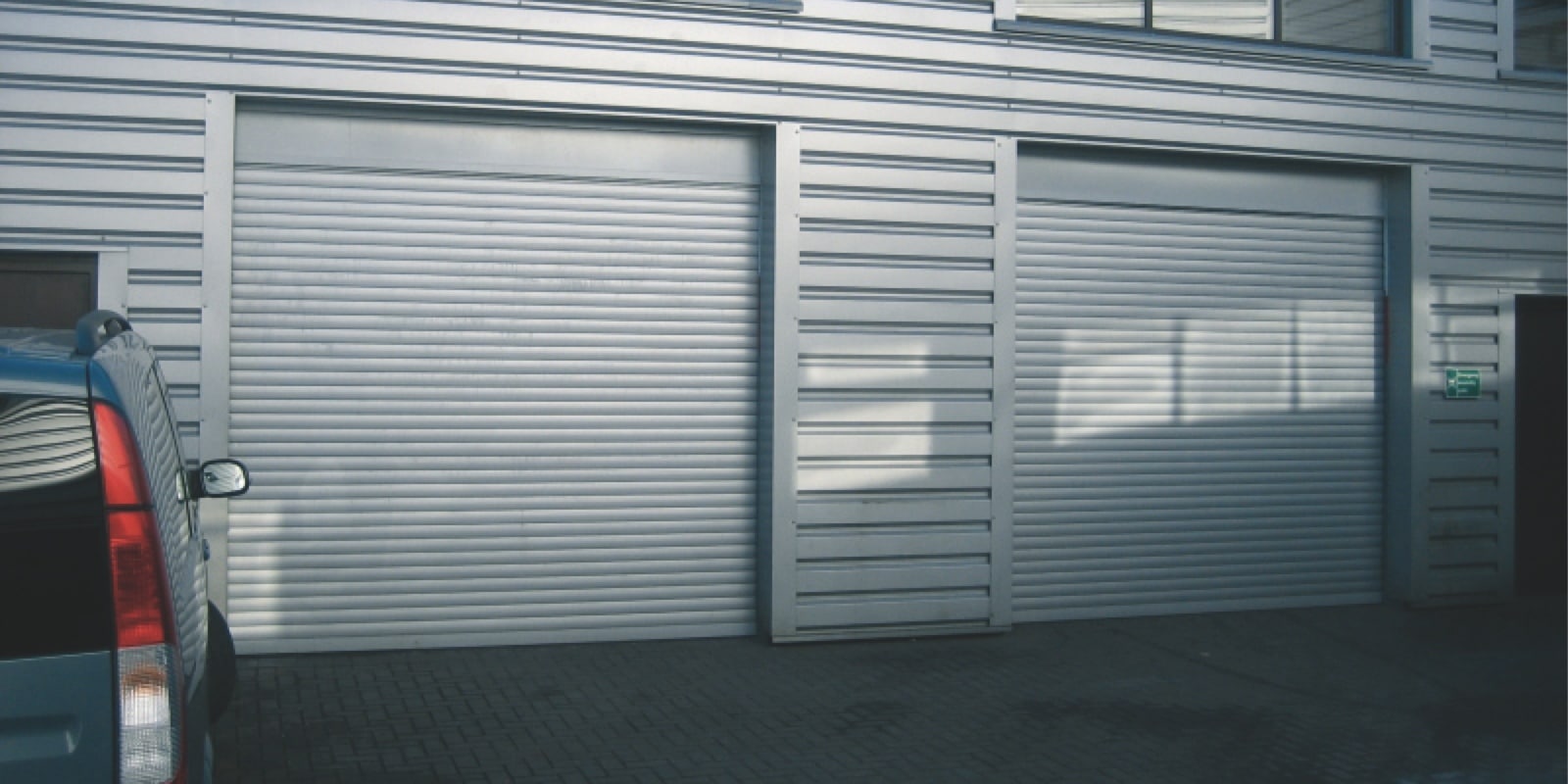

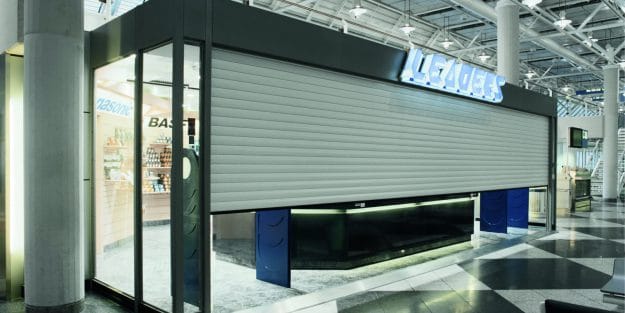

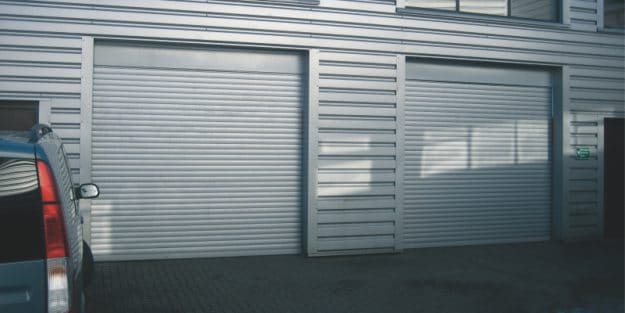

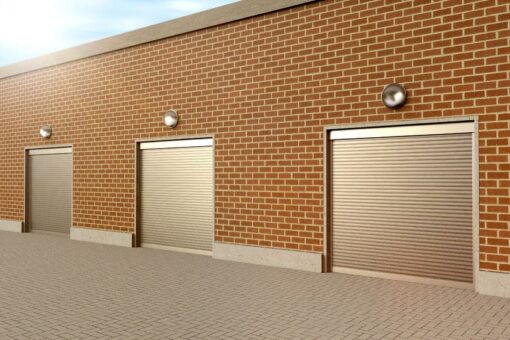

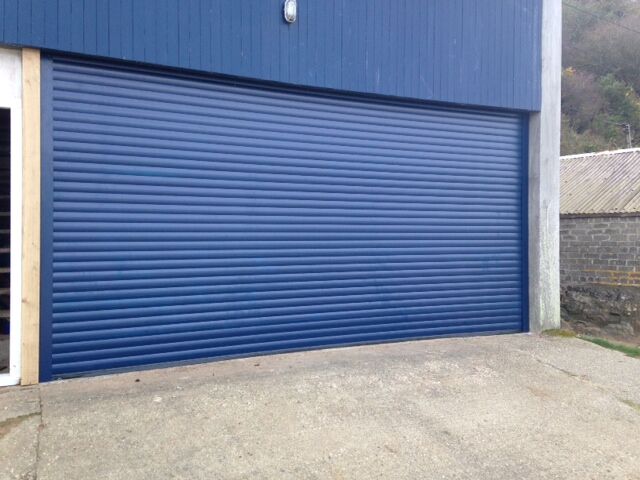

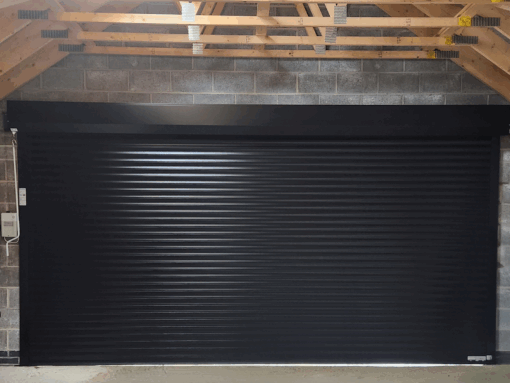

The T77 is a versatile aluminium roller shutter which is suitable for a wide range of domestic, commercial and retail applications. Its 77mm insulated slat rolls into a box as small as 250mm, and a maximum area of 16m² makes this shutter suitable for windows, doors and many other openings. A wide choice of standard colours is available, and powder coating any RAL / BS colour is available on request.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
