Overview |
|
Description | Extruded aluminium security shutter with punched profile for vision. |
Applications | Domestic, commercial, shop front, offices. |
Security Level | High. |
Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|

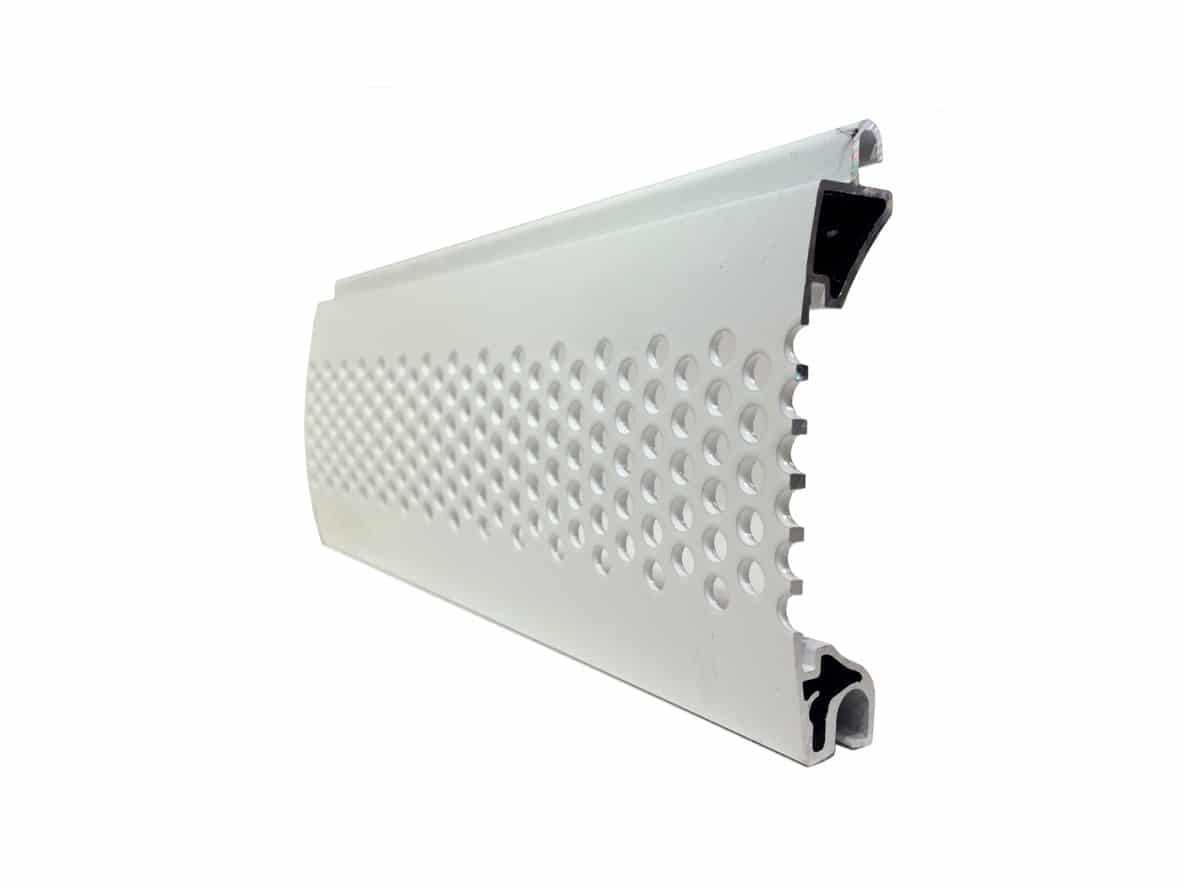

Slat | Double-skinned extruded aluminium with perforated vision profile. Solid (E77) and punched (V77) profiles can be combined to offer partial or full vision as required. |
Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. |
Guides | Extruded aluminium with brush inserts. |
Bottom Slat | Extruded aluminium with rubber weather seal. |
Measurements |
|
Slat Face | 77mm |
Weight | 8.8kg/m² |
Max Width | 6500mm |
Max Area | 25m² |
Guide Width | 70mm, 90mm, 150mm |
U-Value | N/A |
Finishes |
|
Curtain | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Box | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | White as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy tubular motor & internal rocker or external key switch as standard. Safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group, remote or mobile phone activation. |
Manual | Manual operation is available but not common for the P77 as the shutter tends to be used to cover larger openings |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1650 | 250 |
| 2700 | 300 |
| 4640 | 360 |
P77
The Elite version of the T77 aluminium roller shutter has special security features and both Loss Prevention Certification Board (LPCB) and Secured by Design certification. It has been rated SR1 according to LPS1175, making it suitable for applications requiring a higher level of security. The double-skinned aluminium slat contains an insulated core, and a wide range of colours are available as standard with optional powder coating.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
