Overview |
|
Description | Insurance approved extruded aluminium security shutter with punched profile for vision. |

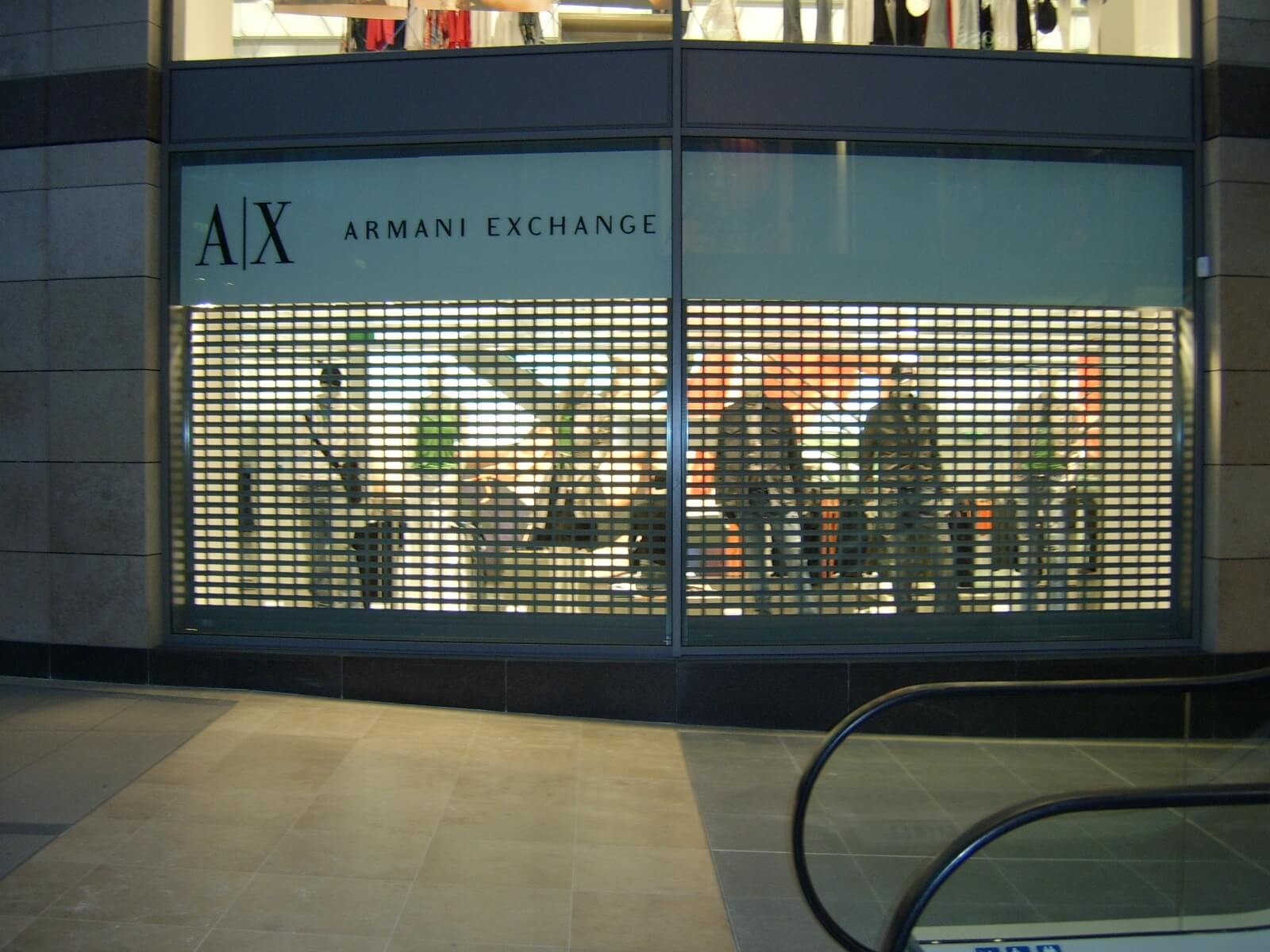

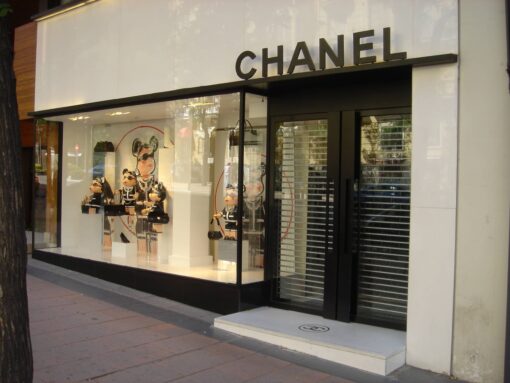

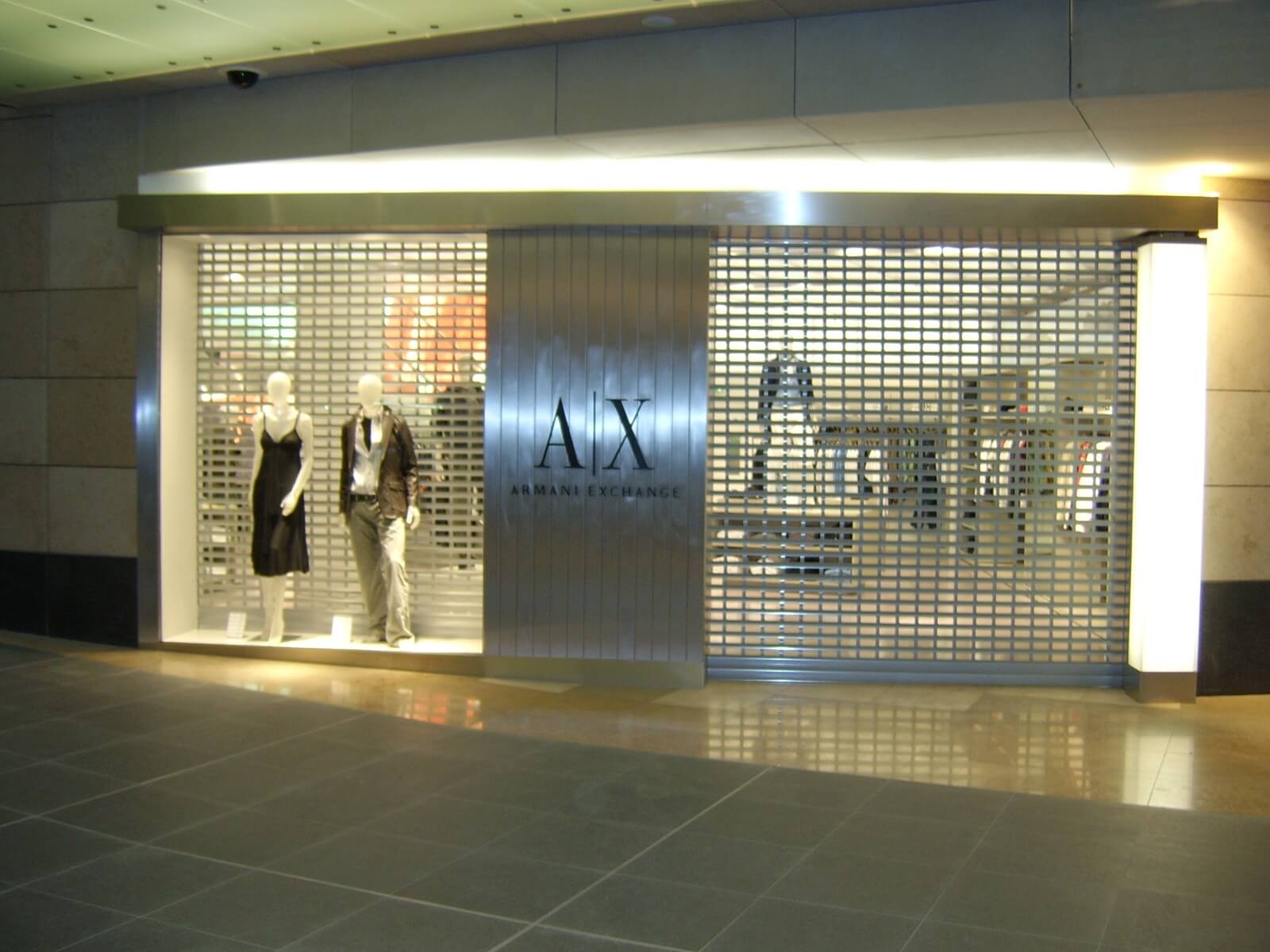

Applications | Commercial, shop front, offices. |
Security Level | High. Secured by Design and SR1 rated according to LPCB LPS 1175: Issue 7. |
Fitting | Internal face fit. |
Components |
|

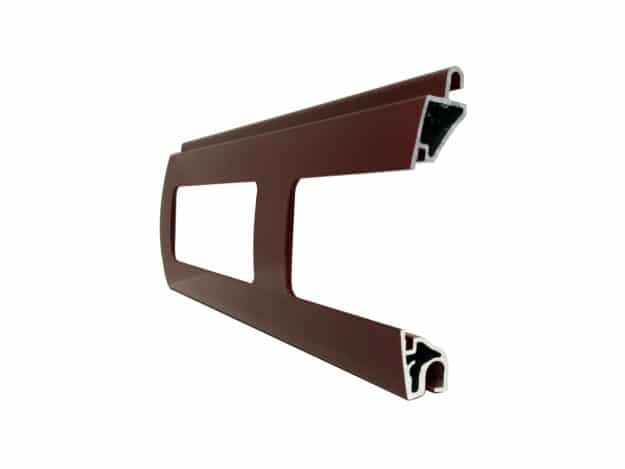

Slat | Single-skinned extruded aluminium. Punched vision profile (in line or brick formation) with transparent polycarbonate inserts. Solid (E77 Elite) profiles can be combined to offer partial or full vision as required. |
Box | Roll-formed aluminium box with pressure-moulded aluminium alloy end plates. |
Guides | Extruded aluminium with brush inserts. |
Bottom Slat | Extruded aluminium with rubber weather seal. |
Measurements |
|
Slat Face | 77mm |
Weight | 8.8kg/m² |
Max Width | 5000mm |
Max Area | 25m² |
Guide Width | 150mm |
U-Value | N/A |
Finishes |
|
Curtain | White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Box | White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Guides | White or brown as standard. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | Somfy tubular motor & internal rocker or external key switch as standard. Safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Numerous control option variants such as group, remote or mobile phone activation. |
Manual | Available on request. Electric operation required for LPCB and Secured by Design certification. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 1650 | 250 |
| 2700 | 300 |
| 4640 | 360 |
V77 Elite SR2

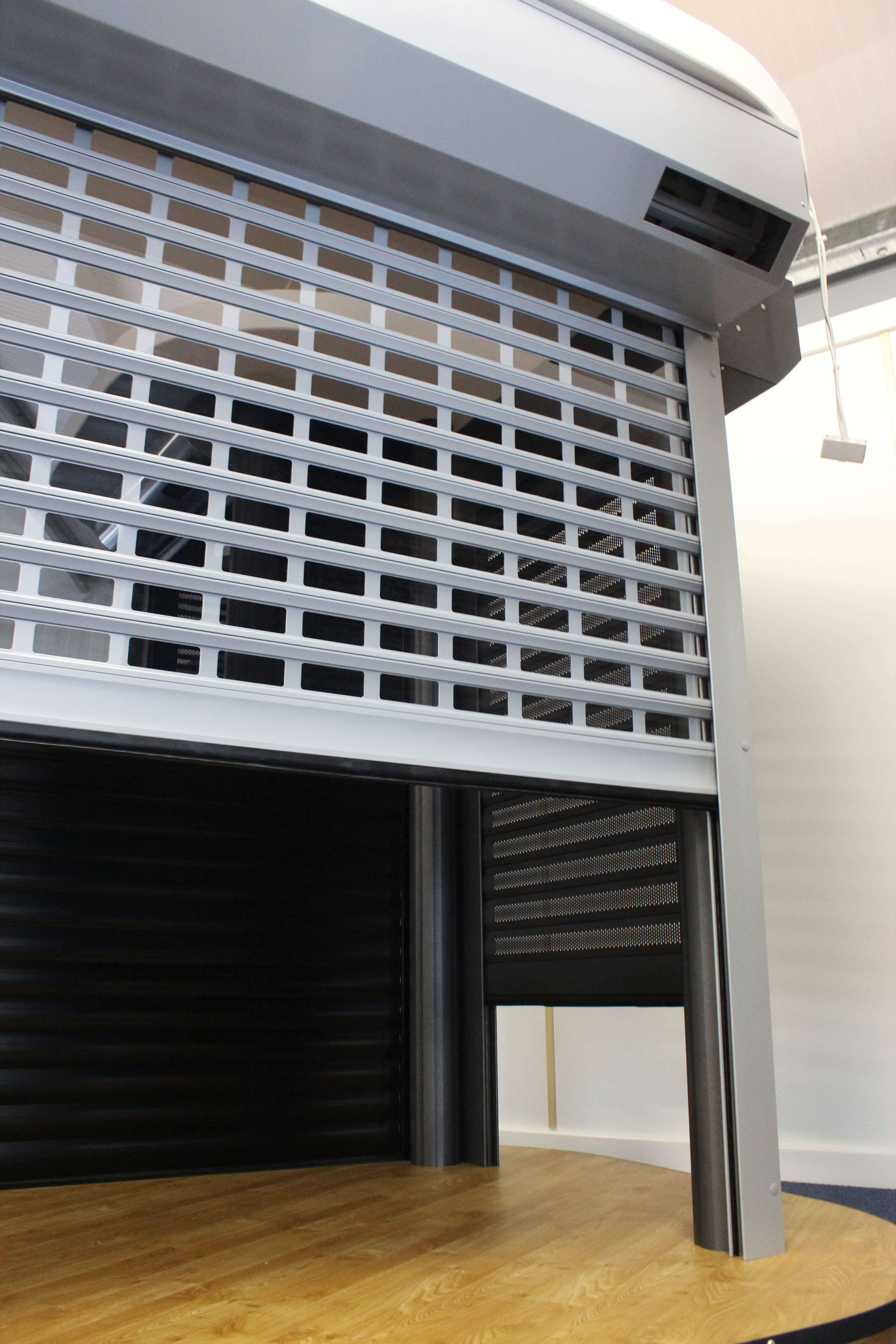

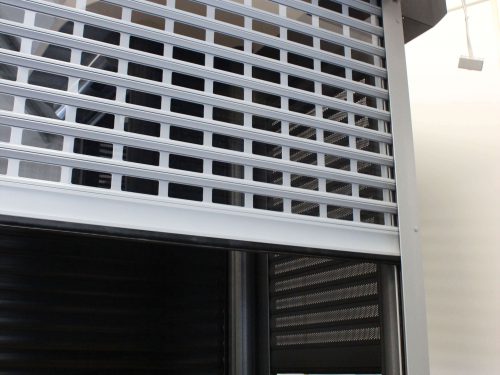

The V77 Elite vision security shutter is Loss Prevention Certification Board (LPCB) certified to SR2 (according to LPS 1175). The aluminium slats have punched sections with transparent polycarbonate inserts, providing high levels of vision while preventing access through the shutter. Compact box sizes as small as 250mm can be achieved on smaller openings such as windows, and powder coating is available.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
