Overview |
|
Description | Polycarbonate link shutter for maximum vision. |
Applications | Commercial, shop front. |
Security Level | High. |
Fitting | Internal face fit, external face fit, reveal fit. |
Components |
|

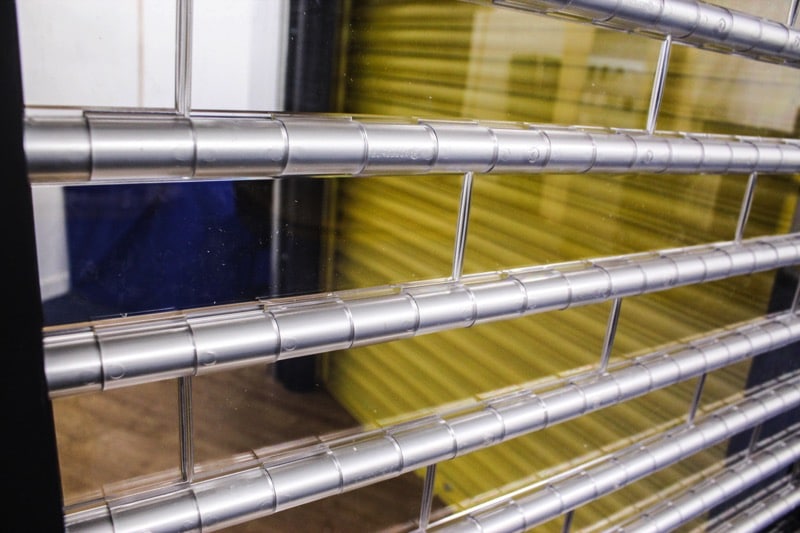

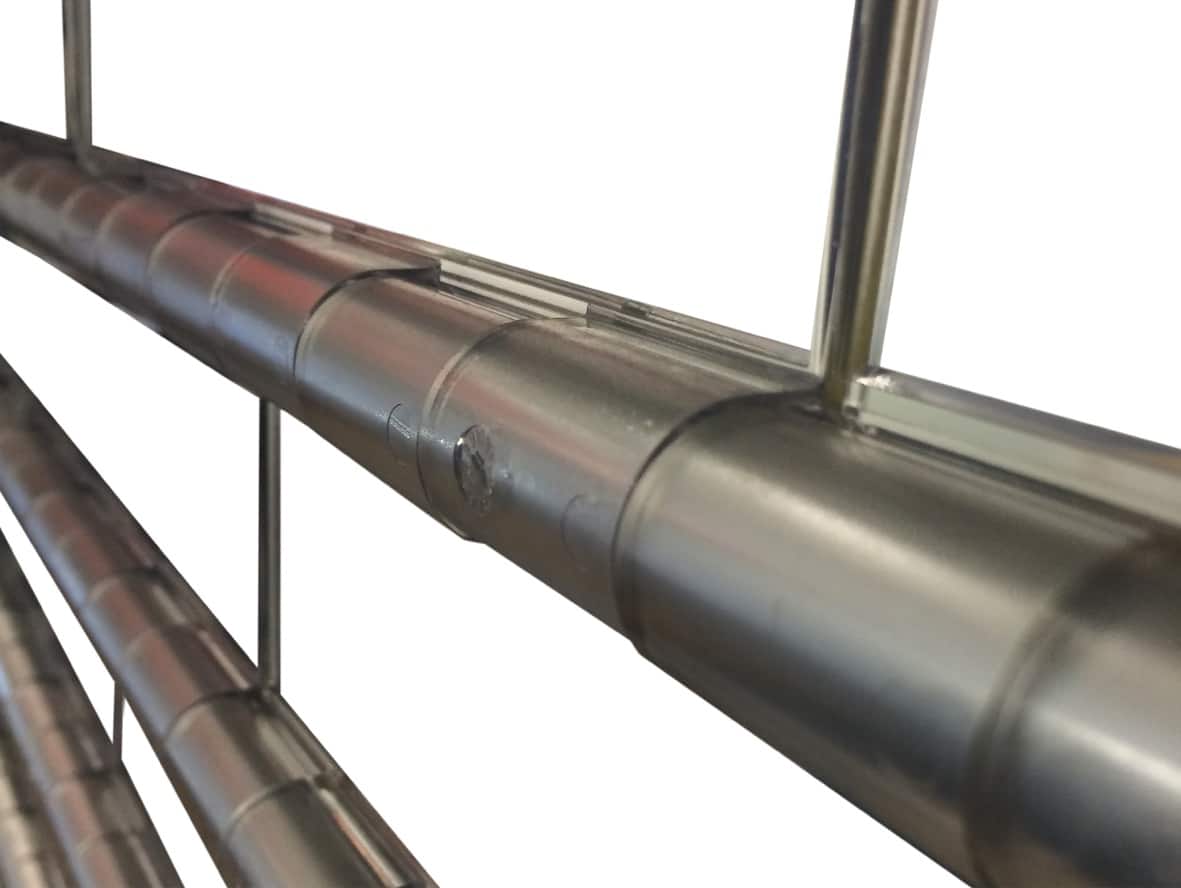

Links | Synthetic links of polycarbonate built in a brick formation as standard, enabling 83% transparency and 92% daylight transmission. UV-stabilised, it does not discolour or yellow. Eurolook Standard bends while effectively resisting cracking and breaking. |
Box | Not included as standard. |
Guides | Extruded aluminium with PVC weather seal. |
Bottom Slat | Extruded aluminium with EPDM weather seal. |
Measurements |
|
Weight | 9kg/m² |
Max Width | 7000mm (tubular motor), 12000mm (outboard motor) |
Max Area | 29m² (tubular motor), 72m² (outboard motor, internal fit), 50m² (outboard motor, external fit) |
Guide Width | 80mm, 115mm |
U-Value | N/A |
Finishes |
|
Links | Transparent polycarbonate. Also available in frosted and ventilated variants. |
Box | Not included as standard. Galvanised steel casing available (surcharge applies), with option to powder coat any RAL / BS colour. |
Guides | Mill finish aluminium guides and anodised aluminium bottom slat. Option to powder coat any RAL / BS colour (surcharge applies). |
Operation |
|
Electric | NRG Econom tubular motor with internal rocker or external key switch as standard & safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Outboard Motor = GfA Safedrive & Ranger three phase motors with safety brake, chain manual override & TS959 push button control station as standard. Both tubular & outboard motors have numerous control option variants such as group, remote or mobile phone activation. |
Manual | Manual operation is available for the Eurolook shutter when used on smaller openings. |
Box & Guides |
|
Guide Height (up to mm) | Plate Size (mm) |
| 2750 | 305 (Tubular Motor) |
| 4000 | 355 (Tubular Motor) |
| 4500 | 400 (Tubular Motor) |
| 5000 | 400 (Outboard Motor) |
| 6000 | 450 (Outboard Motor) |
| 7000 | 550 (Outboard Motor) |
Eurolook

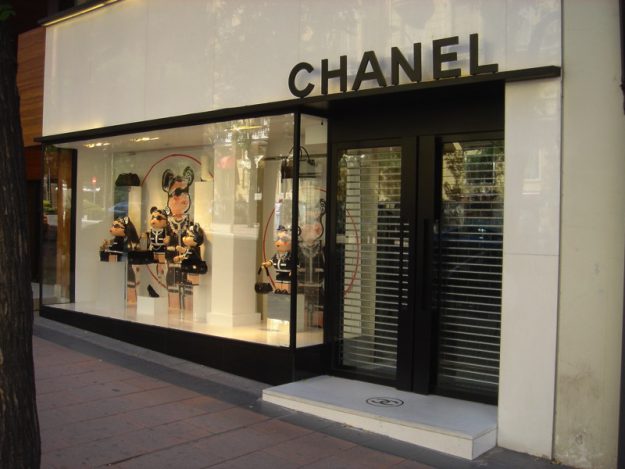

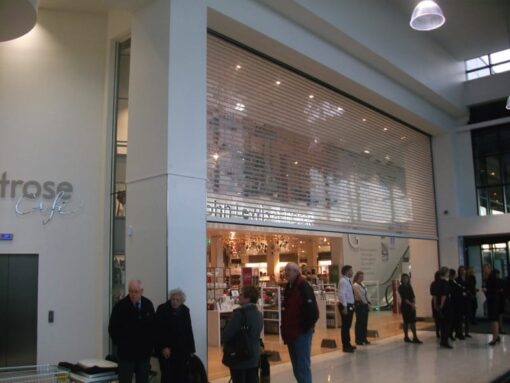

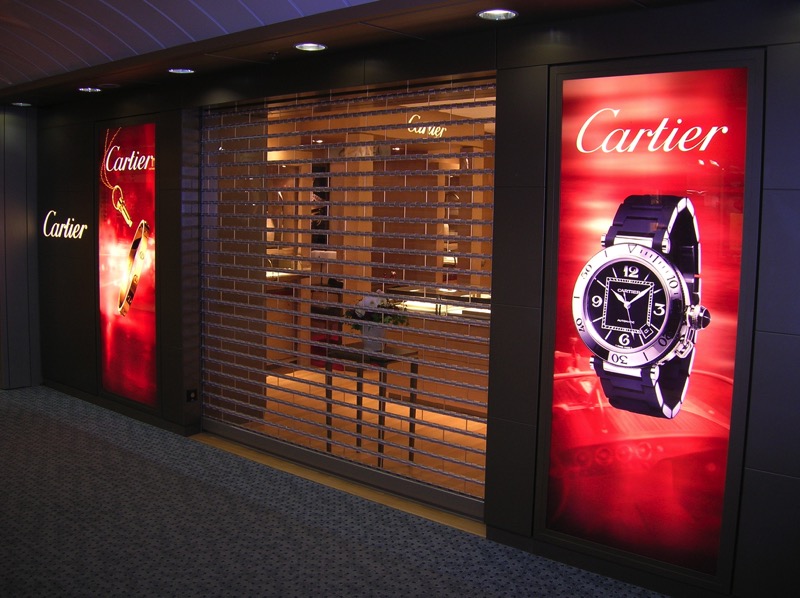

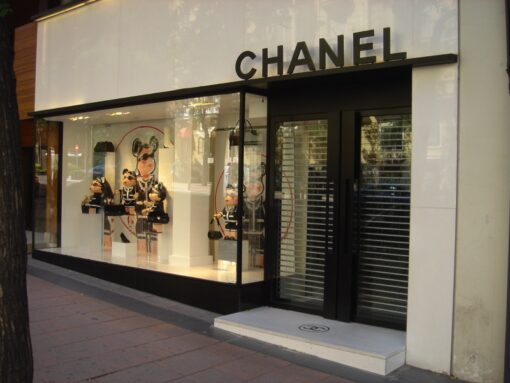

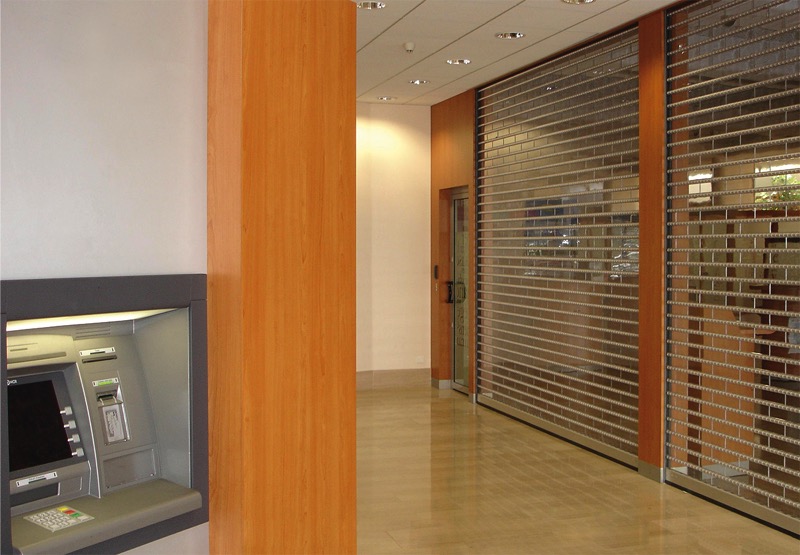

With a unique polycarbonate design, the Eurolook roller shutter provides the highest levels of transparency. It is suitable for applications where vision is required while the shutter is closed, such as in the retail environment. It has been designed to bend whilst effectively resisting cracking and breaking, and vented and frosted variants are available on request. A choice of tubular and outboard motors serve openings up to 72m².
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
