Overview |
||
Description | Insulated steel shutter with high speed inverter motor option | |
Applications | High security commercial sites requiring large aperture coverage | |
Security Level | Medium | |
Fitting | Internal face, external face, reveal | |
Components |
||

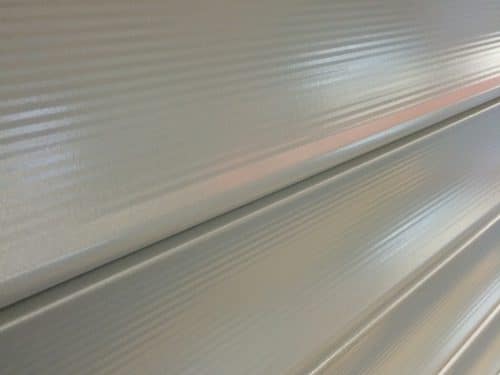

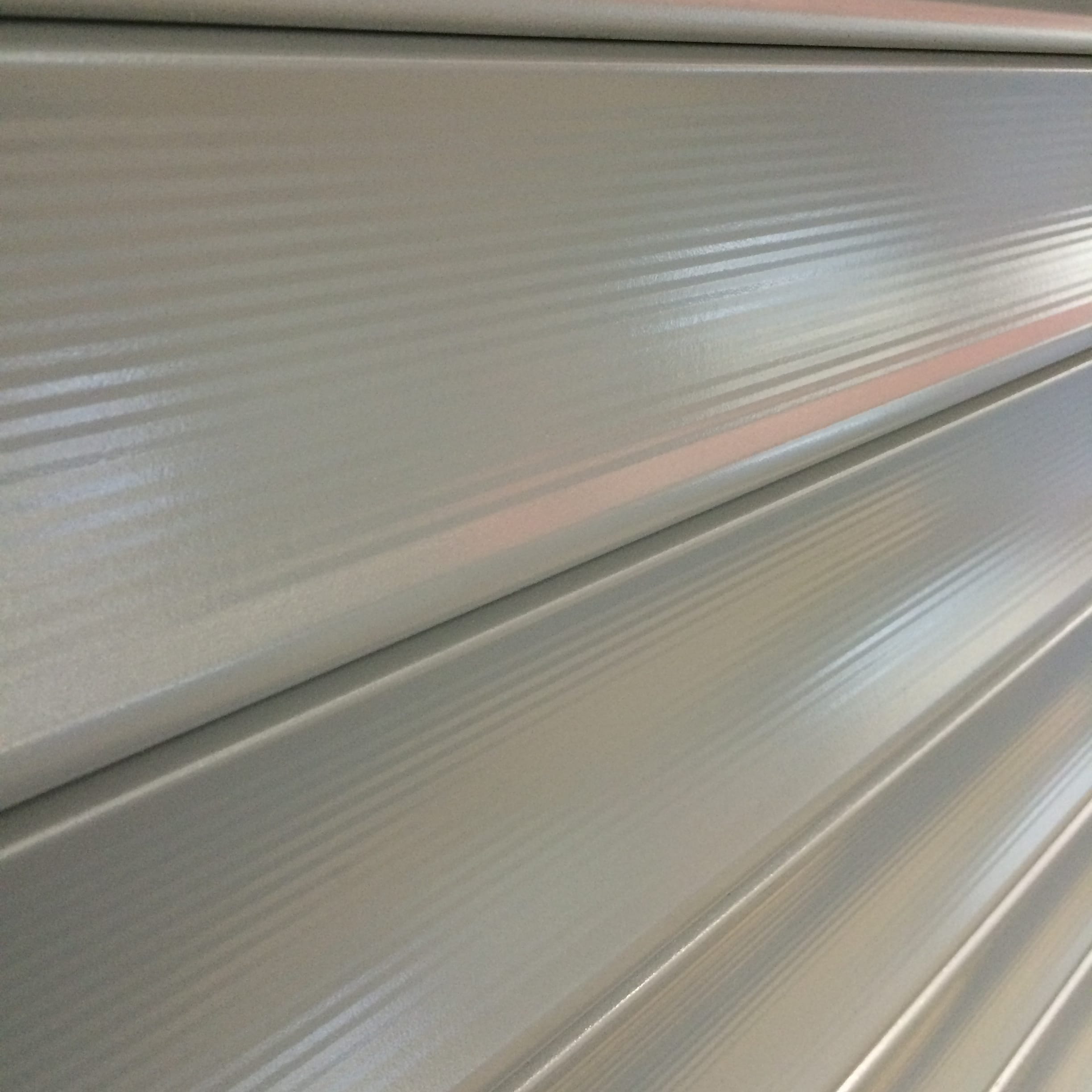

Slat | Double skinned polyester powder coated 95mm steel slat | |
Guides | Guide channel depth is 85mm as standard. | |
Measurements |
||
Weight | 12.8kg | |
Max Width | 7000mm (tubular) 10000mm (outboard) |
|
Max Surface | 20m² (tubular) 35m² (outboard) |
|
Height | 95mm | |
Finishes |
||
Curtain | Galvanised as standard. Powder coating and Plastisol laminated finishes available on request (surcharges apply). | |
Casing | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). | |
Guides | Galvanised as standard. Option to powder coat any RAL / BS colour (surcharge applies). | |
Operation | ||
Electric | Tubular Motor = NRG Econom tubular motor with internal rocker or external key switch as standard & safety brake as appropriate to comply with legislation. Manual override facility & crank handle as required (surcharge applies). Outboard Motor = GfA Safedrive & Ranger three phase motors with safety brake, chain manual override & TS959 push button control station as standard. Both tubular and outboard motors have numerous control option variants such as group, remote control or mobile phone activation. A high speed motor is available with a built-on frequency inverter, allowing for heavy duty usage up to 60 revolutions per minute. |
|
Box & Guides |
||
Guide Height (up to mm) | Plate Size (mm) |
|
| 2195 | 355 (Tubular Motor) | |
| 3250 | 400 (Tubular Motor) | |
| 4000 | 450 (Tubular Motor) | |
| 3250 | 400 (Outboard Motor) | |
| 4000 | 450 (Outboard Motor) | |
| 5000 | 500 (Outboard Motor) | |
| 6000 | 550 (Outboard Motor) | |

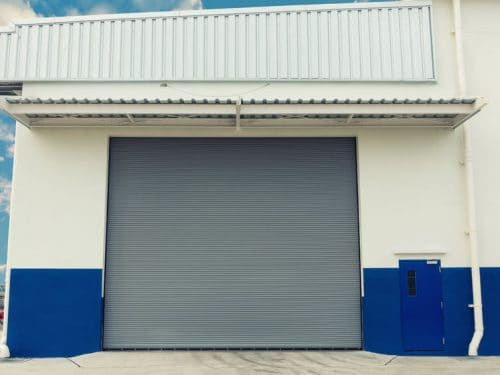

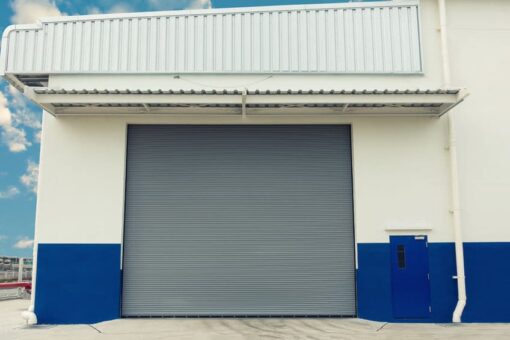

i95

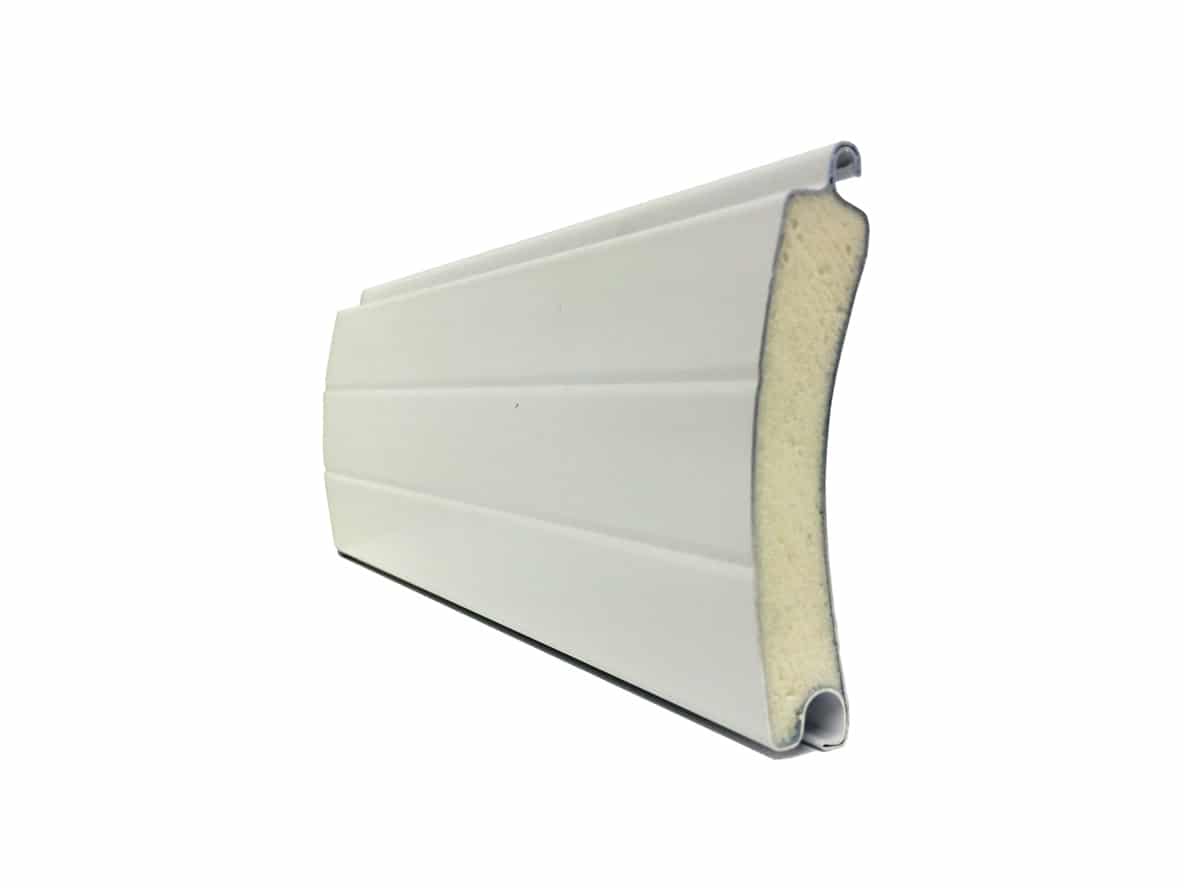

The i95 provides insulation and security to industrial openings up to 8m wide. Electric operation comes with a choice of tubular or outboard motors and various control options including switches, remote controls, group and mobile phone activation. The slats are manufactured from double-skinned steel with a polyurethane core, and can be powder coated on request.
Speak to the Roché team for advice on which security shutter is most suitable for your requirements. We can also arrange a free survey from one of our experienced engineers.
